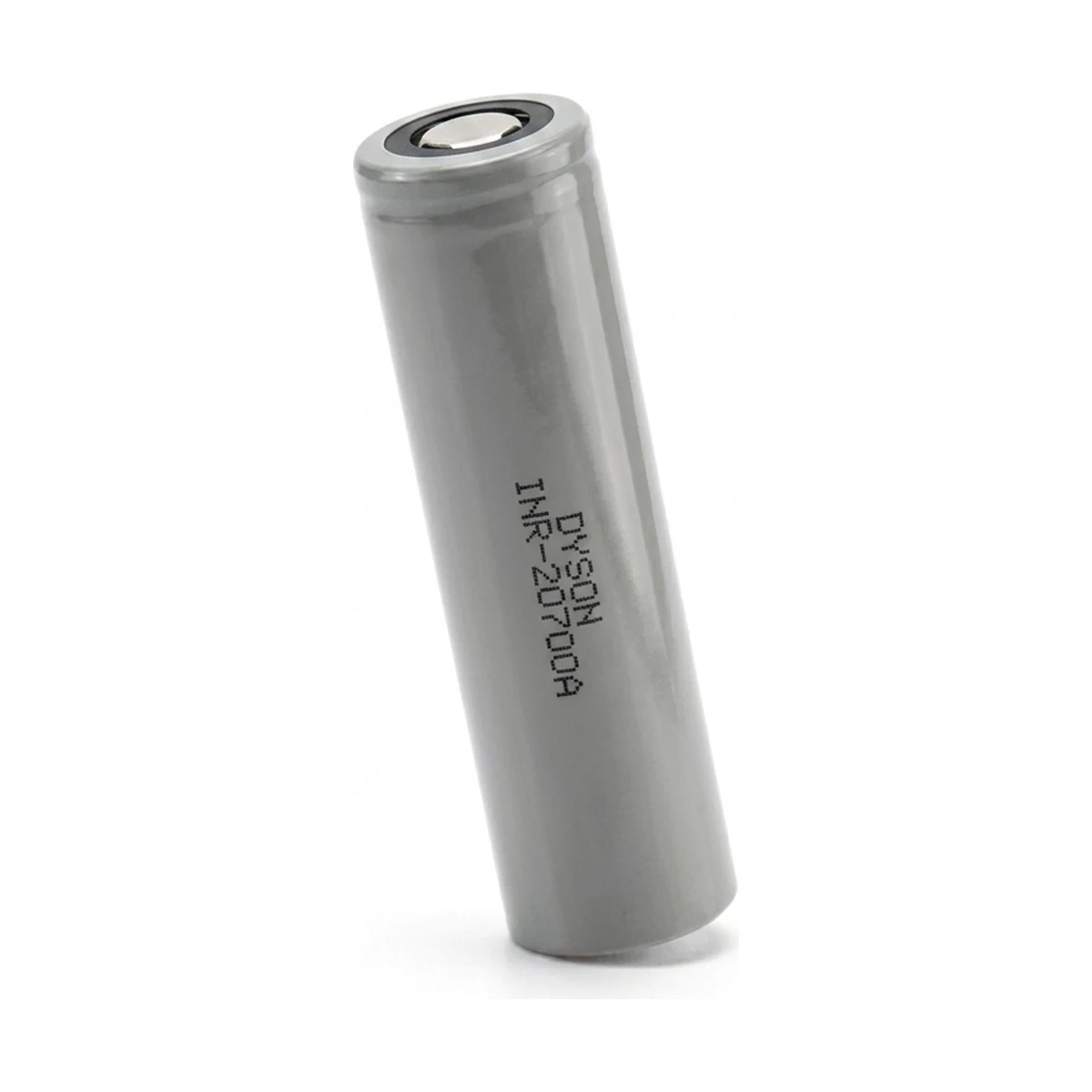

Dyson INR-20700A Specifications
20700 · NMC — full datasheet specs for the Dyson INR-20700A, plus what it delivers in common DIY pack configurations. Plan a build with it in the Battery Pack Calculator.
At 3000 mAh it ranks #1 of 1 20700 cells in our database by capacity — one of the higher-capacity 20700 options.
Full specifications
| Capacity | 3000 mAh |
|---|---|
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Energy | 10.8 Wh |
| Internal resistance | 20 mΩ |
| Standard charge current | 3000 mA |
| Standard discharge current | 560mA |
| Chemistry | NMC |
| Form factor | 20700 |
| Wrap color | Grey |
| Insulator ring | Black |
At the standard 3000 mA charge rate, a full charge takes roughly 1 hours plus the constant-voltage taper at the end.
The INR-20700A in a battery pack
Common DIY series configurations using this cell's real 3.6V nominal voltage, with a 3-cells-in-parallel (3P) example for capacity:
| Config | Nominal voltage | Fully charged | Cells (3P) | Capacity (3P) | Energy (3P) | |
|---|---|---|---|---|---|---|
| 3S | 10.8 V | 12.6 V | 9 | 9 Ah | 97 Wh | |
| 7S | 25.2 V | 29.4 V | 21 | 9 Ah | 227 Wh | |
| 10S | 36 V | 42 V | 30 | 9 Ah | 324 Wh | |
| 13S | 46.8 V | 54.6 V | 39 | 9 Ah | 421 Wh | |
| 14S | 50.4 V | 58.8 V | 42 | 9 Ah | 454 Wh |
Size a full pack around the INR-20700A — voltage, capacity, runtime, and BMS:
Open the Battery Pack Calculator →or balance tested cells in the Pack BuilderGet new tools and build tips
