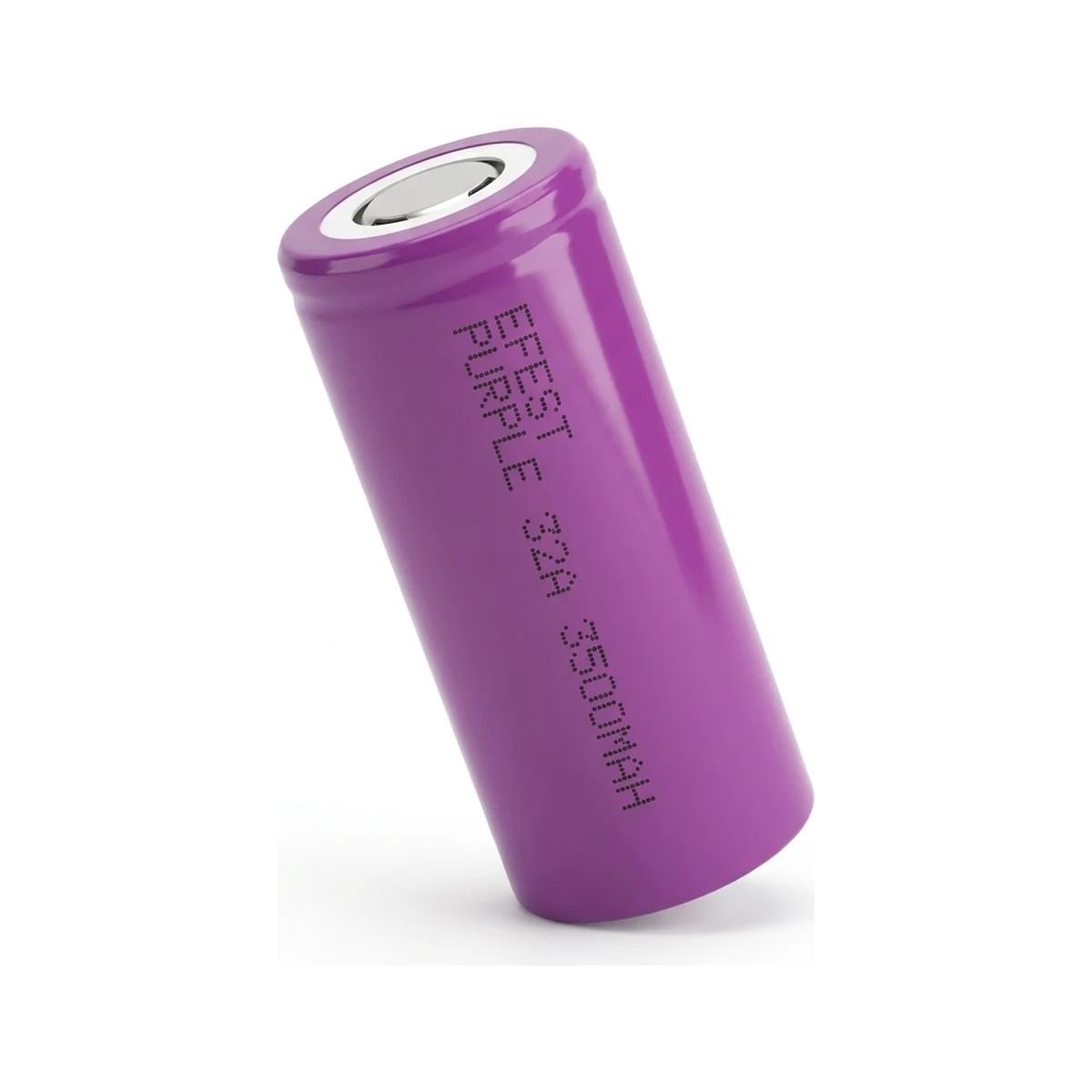

✱ RenderEfest PURPLE 32A 3500mAh
At 3500 mAh, this ranks #12 of 15 26650 cells in our database. On the lower end for capacity among 26650 cells. A mid-range 26650 cell. Solid for builds that don't need extreme capacity or discharge.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | LMO |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 32A (Mooch-tested) |
| Mooch CDR (trusted) | 32 A |
| Internal resistance | 13 mΩ |
| Physical | |
| Form factor | 26650 |
| Dimensions | 26.22mm × 65.11mm |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Purple |
| Performance | |
| Capacity | 3500 mAh |
| Energy | 12.6 Wh |
| Energy density | 358.4 Wh/L |
| Power density (volumetric) | 3,277 W/L |
| Cycle life | 500 cycles |
| Year released | 2014 |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
Independent test data: Mooch's test of the PURPLE 32A 3500mAh ↗
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: Efest PURPLE 32A 3500mAh (3500mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.7 A | 5h 00m |
| 0.5C | 1.75 A | 2h 00m |
| 1C | 3.5 A | 1h 00m |
| 2C | 7 A | 30m |
| 3C | 10.5 A | 20m |
| 5C | 17.5 A | 12m |
| 8C | 28 A | 7m 30s |
Highlighted row is closest to the rated 32A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,750 mA | ~2h 00m |
| 1C | 3,500 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 3,500 mAh | 12.6 Wh | 32 A |
| 2P | 7,000 mAh | 25.2 Wh | 64 A |
| 3P | 10,500 mAh | 37.8 Wh | 96 A |
| 4P | 14,000 mAh | 50.4 Wh | 128 A |
| 5P | 17,500 mAh | 63 Wh | 160 A |
| 6P | 21,000 mAh | 75.6 Wh | 192 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Efest PURPLE 32A 3500mAh (this cell) | 3500 | 32A | 12.6 | — | — |
| Xtar BLACK 35A 3200mAh | 3200 | 35A | 11.5 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
