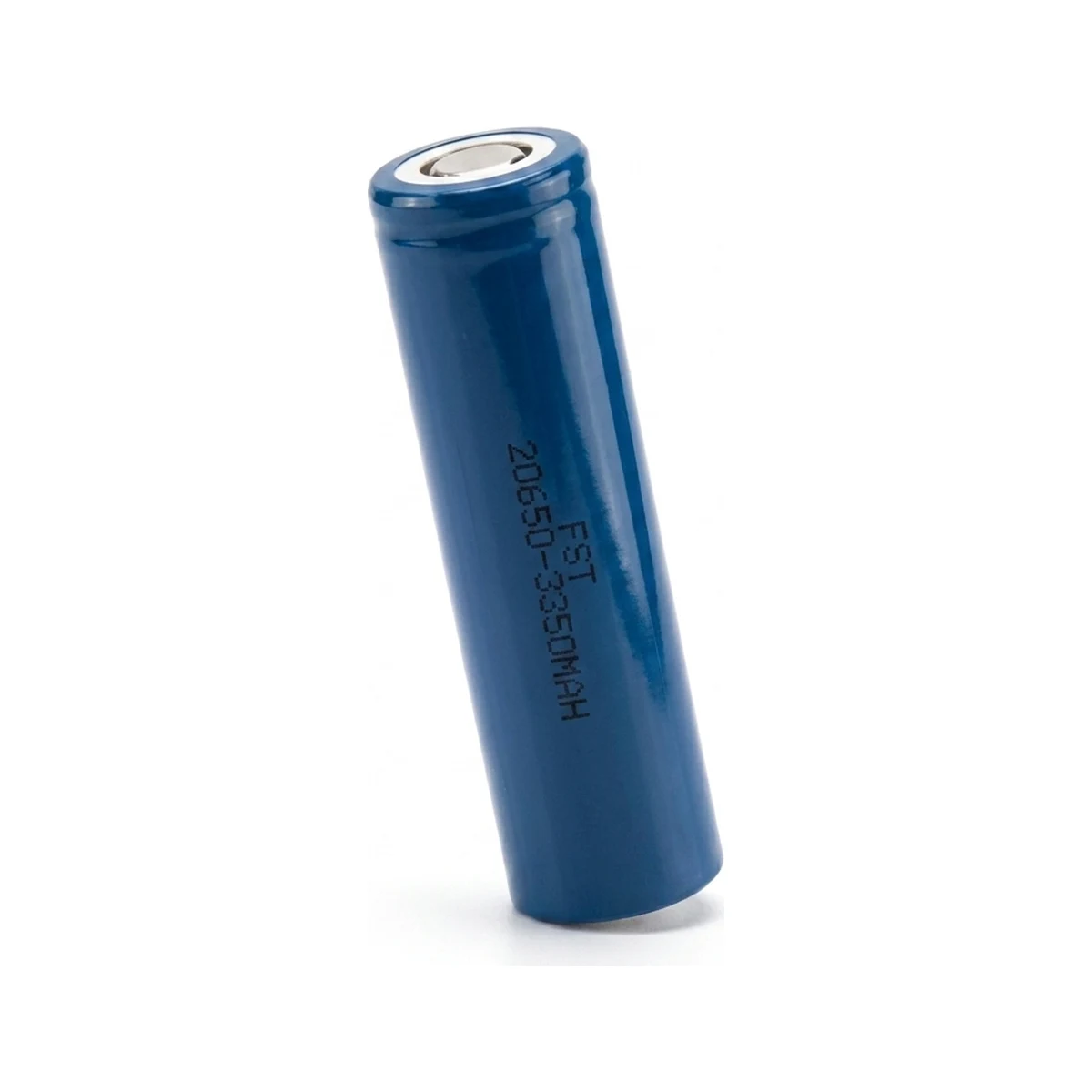

✱ RenderFST 20650-3350mAh
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.8 V |
| Max continuous discharge | 6.7A |
| Standard charge current | 1675 mA |
| Standard discharge current | 1675mA |
| Internal resistance | 35 mΩ |
| Physical | |
| Form factor | 20650 |
| Wrap color | Blue (Dark) |
| Insulator ring | White |
| Performance | |
| Capacity | 3350 mAh |
| Energy | 12.06 Wh |
At the standard 1675 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.8VNominal
3.6VMax charge
4.2V
Usable range: 1.4V
C-rate conversion: FST 20650-3350mAh (3350mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.67 A | 5h 00m |
| 0.5C | 1.68 A | 2h 00m |
| 1C | 3.35 A | 1h 00m |
| 2C | 6.7 A | 30m |
Highlighted row is closest to the rated 6.7A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,675 mA | ~2h 00m |
| 1C | 3,350 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.8V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5.6V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 8.4V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 11.2V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 19.6V | Ebike (24V system) |
| 10S | 36V | 42V | 28V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 36.4V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 39.2V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 44.8V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 3,350 mAh | 12.1 Wh | 6.7 A |
| 2P | 6,700 mAh | 24.1 Wh | 13.4 A |
| 3P | 10,050 mAh | 36.2 Wh | 20.1 A |
| 4P | 13,400 mAh | 48.2 Wh | 26.8 A |
| 5P | 16,750 mAh | 60.3 Wh | 33.5 A |
| 6P | 20,100 mAh | 72.4 Wh | 40.2 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.8V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
