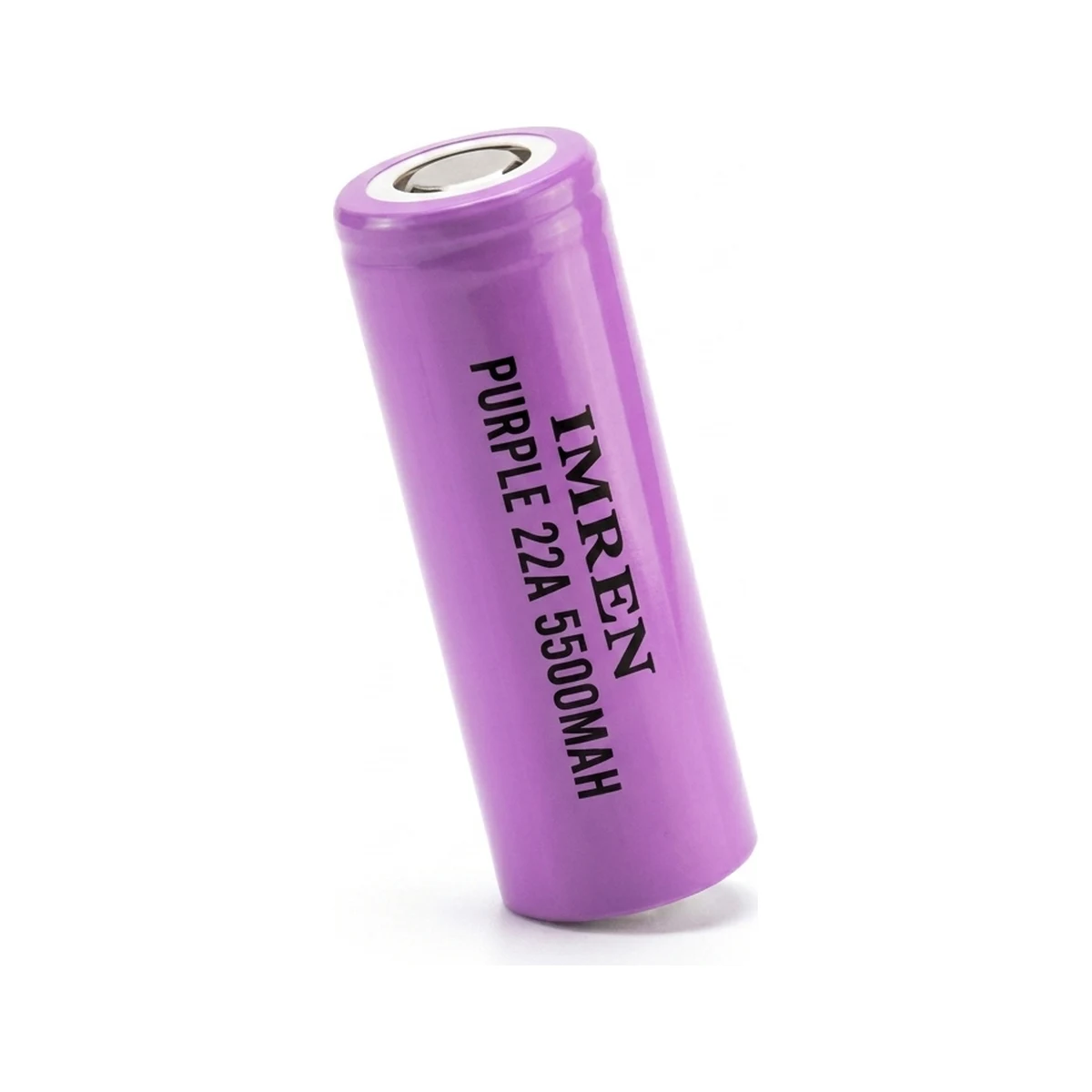

✱ Render

26.08 × 67.17 mm · 91.2 g

26650LMO Mooch-tested · 22 A

Imren PURPLE 22A 5500mAh

Name: Imren PURPLE 22A 5500mAh Lithium Battery Cell
Brand: Imren

Imren · released 2016

Capacity5500 mAh19.8 Wh · 217.11 Wh/kg

Mooch continuous22 ASize to this figure

Voltage window3.6 V2.5 – 4.2 V

Build a pack with this cell →Download spec sheet (PDF)Mooch's test ↗

At 5500 mAh, this ranks #1 of 15 26650 cells in our database. Near the top for capacity among 26650 cells. More capacity than 100% of 26650 cells in our database, but lower discharge than average.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	LMO
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	22A (Mooch-tested)
Mooch CDR (trusted)	22 A
Physical
Form factor	26650
Dimensions	26.08mm × 67.17mm
Weight	91.2 g
Top type	Flat Top
Protected	No
Wrap color	Purple
Performance
Capacity	5500 mAh
Energy	19.8 Wh
Specific energy	217.11 Wh/kg
Energy density	551.8 Wh/L
Power density (gravimetric)	868 W/kg
Power density (volumetric)	2,207 W/L
Year released	2016

Independent test data: Mooch's test of the PURPLE 22A 5500mAh ↗

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Imren PURPLE 22A 5500mAh (5500mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	1.1 A	5h 00m
0.5C	2.75 A	2h 00m
1C	5.5 A	1h 00m
2C	11 A	30m
3C	16.5 A	20m

Highlighted row is closest to the rated 22A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	2,750 mA	~2h 00m
1C	5,500 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	5,500 mAh	19.8 Wh	22 A
2P	11,000 mAh	39.6 Wh	44 A
3P	16,500 mAh	59.4 Wh	66 A
4P	22,000 mAh	79.2 Wh	88 A
5P	27,500 mAh	99 Wh	110 A
6P	33,000 mAh	118.8 Wh	132 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal11,000mAh277Wh44A maxCell weight: 1.28 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells46.8V nominal22,000mAh1030Wh88A maxCell weight: 4.74 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells57.6V nominal22,000mAh1267Wh88A maxCell weight: 5.84 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.4V nominal33,000mAh475Wh132A maxCell weight: 2.19 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksGood balance of capacity for range and discharge for hills. Works well in most ebike packs.

Car AudioEnough discharge to handle amplifier bursts without voltage sag.

High-Drain VapingUsable in regulated mods at moderate wattage. Not recommended for mechanical mods.

FlashlightsHigh capacity means long runtime. Great for everyday carry and extended use.

Power ToolsSufficient discharge and capacity for most power tool packs.

Physical dimensions

Dimensions26.08mm × 67.17mm

TopFlat Top

Format26650

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Imren PURPLE 22A 5500mAh?

What is the maximum discharge rate of the Imren PURPLE 22A 5500mAh?

How many PURPLE 22A 5500mAh cells do I need for a 48V ebike battery?

What does the Imren PURPLE 22A 5500mAh weigh?

Can I use the PURPLE 22A 5500mAh for vaping?

What size is the Imren PURPLE 22A 5500mAh?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
