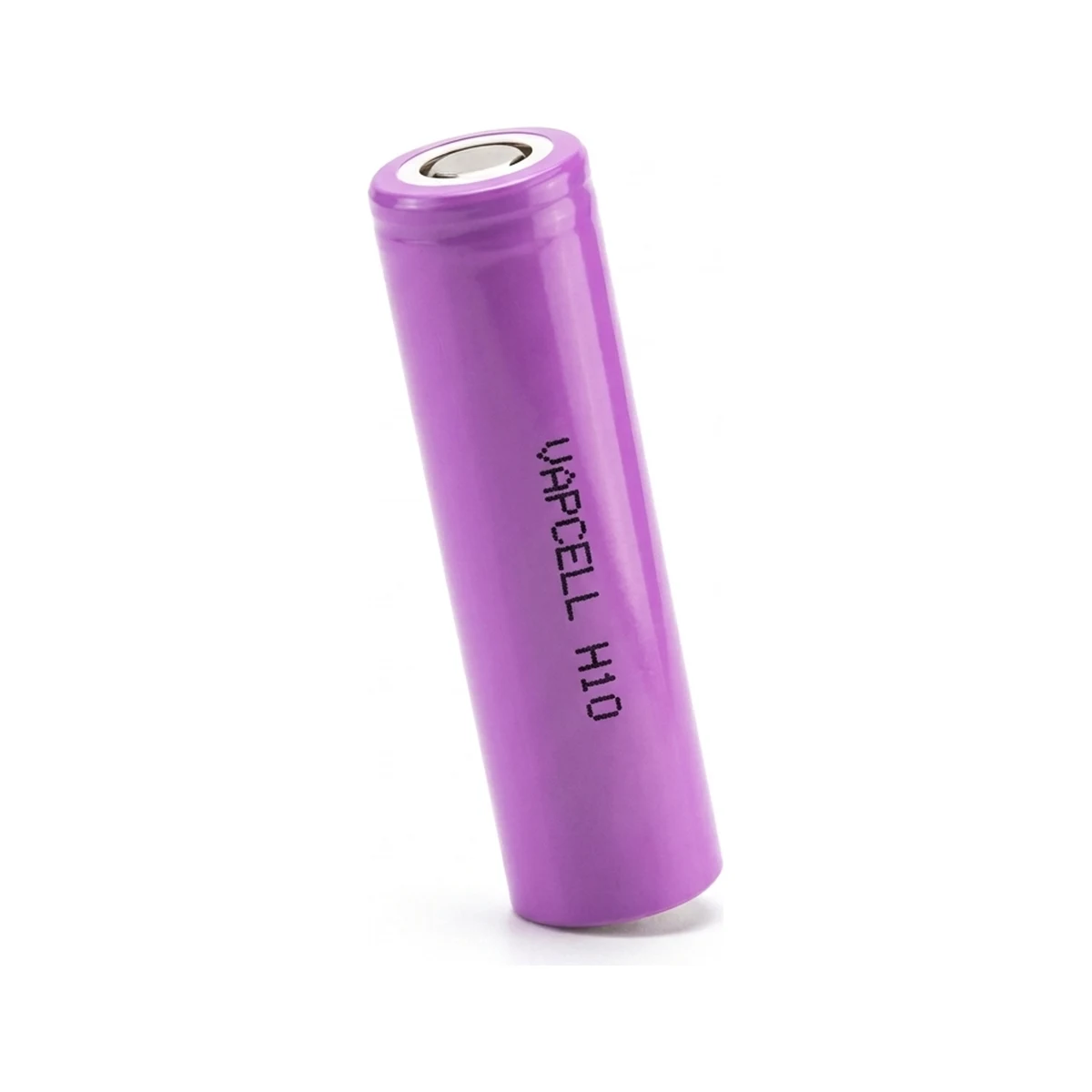

✱ Render

14.3 × 49.4 mm · 24 g

14500NMC Mooch-tested · 10 A

Vapcell H10

Name: Vapcell H10 Lithium Battery Cell
Brand: Vapcell

Vapcell · released 2020

Capacity1000 mAh3.6 Wh · 150 Wh/kg

Mooch continuous10 ASize to this figure

Resistance18 mΩDC internal resistance

Voltage window3.6 V2.5 – 4.2 V

Standard charge500 mA~2 h to full

Build a pack with this cell →Download spec sheet (PDF)Open the datasheet Mooch's test ↗

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	10A (Mooch-tested)
Mooch CDR (trusted)	10 A
Standard charge current	500 mA
Internal resistance	18 mΩ
Physical
Form factor	14500
Dimensions	14.3mm × 49.4mm
Weight	24 g
Top type	Flat Top
Protected	No
Wrap color	Purple
Insulator ring	White
Performance
Capacity	1000 mAh
Energy	3.6 Wh
Specific energy	150 Wh/kg
Energy density	453.75 Wh/L
Power density (gravimetric)	1,500 W/kg
Power density (volumetric)	4,537 W/L
Year released	2020
Operating Limits
Charge temp	0°C to 45°C
Discharge temp	-20°C to 75°C

Independent test data: Mooch's test of the H10 ↗

At the standard 500 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Vapcell H10 (1000mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.2 A	5h 00m
0.5C	0.5 A	2h 00m
1C	1 A	1h 00m
2C	2 A	30m
3C	3 A	20m
5C	5 A	12m
8C	8 A	7m 30s
10C	10 A	6m

Highlighted row is closest to the rated 10A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	500 mA	~2h 00m
1C	1,000 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Datasheet

Download official Vapcell H10 datasheet (PDF) ↗

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	1,000 mAh	3.6 Wh	10 A
2P	2,000 mAh	7.2 Wh	20 A
3P	3,000 mAh	10.8 Wh	30 A
4P	4,000 mAh	14.4 Wh	40 A
5P	5,000 mAh	18 Wh	50 A
6P	6,000 mAh	21.6 Wh	60 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal2,000mAh50Wh20A maxCell weight: 0.34 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells46.8V nominal4,000mAh187Wh40A maxCell weight: 1.25 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells57.6V nominal4,000mAh230Wh40A maxCell weight: 1.54 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.4V nominal6,000mAh86Wh60A maxCell weight: 0.58 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsToo low capacity for practical powerwall use. You'd need too many cells.

Ebike PacksNot enough discharge for ebike use. Voltage sag would be a problem under load.

Car AudioMight work for smaller setups. Check your amp's peak current draw.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsLower capacity means shorter runtime. Better cells are available for flashlight use.

Power ToolsMay work for lighter-duty tools. Check your tool's current requirements.

Physical dimensions

Dimensions14.3mm × 49.4mm

TopFlat Top

Format14500

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Vapcell H10 (this cell)	1000	10A	3.6	24g	150
Vapcell K10	1000	8A	3.6	24g	150

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Vapcell H10?

What is the maximum discharge rate of the Vapcell H10?

How many H10 cells do I need for a 48V ebike battery?

What does the Vapcell H10 weigh?

Can I use the H10 for vaping?

What temperature range can the H10 operate in?

What size is the Vapcell H10?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
