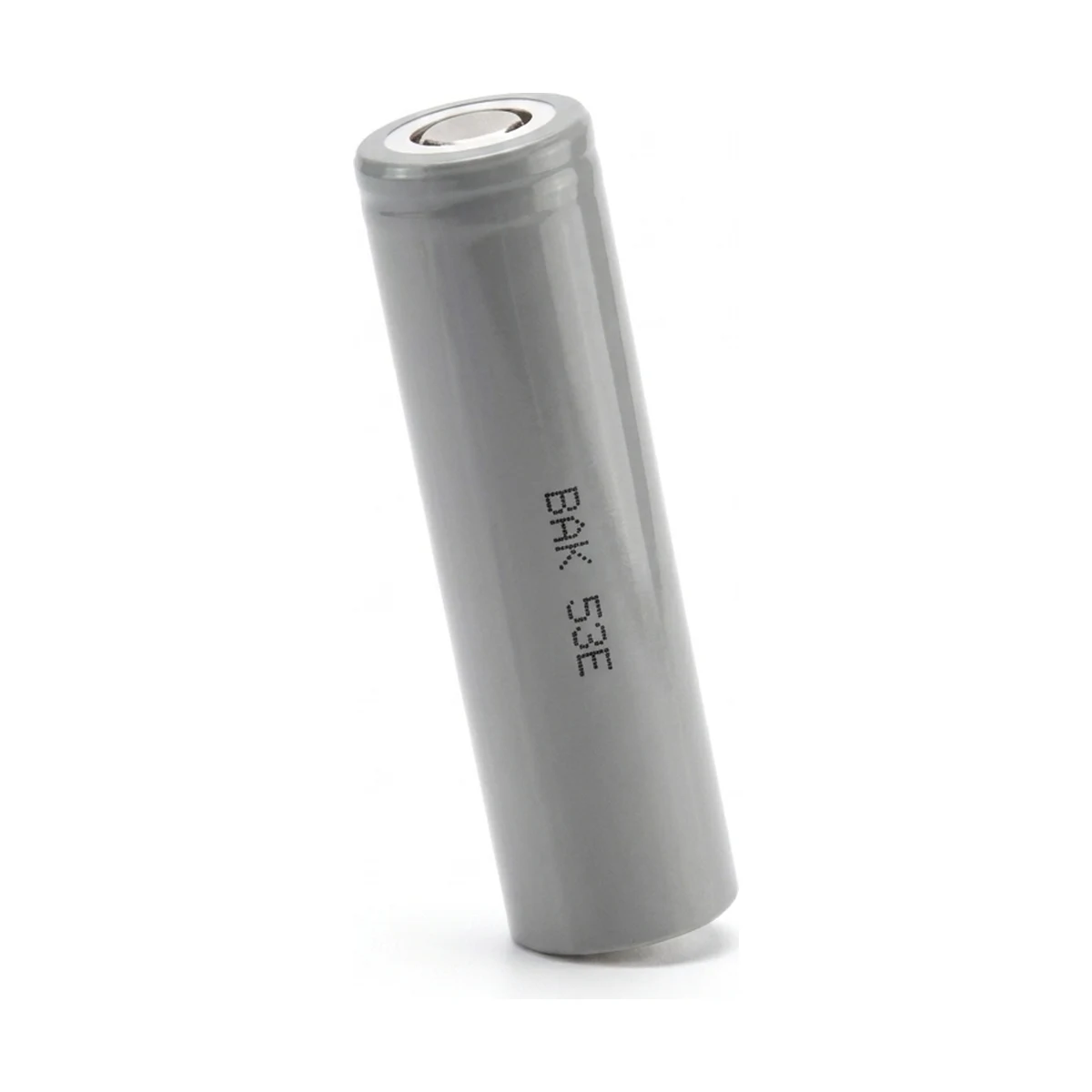

✱ RenderBAK 53E
At 5300 mAh, this ranks #16 of 72 21700 cells in our database. Mid-range for capacity among 21700 cells. More capacity than 79% of 21700 cells in our database, but lower discharge than average.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 10A (Mooch-tested) |
| Mooch CDR (trusted) | 10 A |
| Standard charge current | 2650 mA |
| Standard discharge current | 1060mA |
| Internal resistance | 13 mΩ |
| Physical | |
| Form factor | 21700 |
| Dimensions | 21.3mm × 70.5mm |
| Weight | 69 g |
| Top type | Flat Top |
| Protected | No |
| Performance | |
| Capacity | 5300 mAh |
| Energy | 19.08 Wh |
| Specific energy | 276.52 Wh/kg |
| Energy density | 759.52 Wh/L |
| Power density (gravimetric) | 522 W/kg |
| Power density (volumetric) | 1,433 W/L |
| Cycle life | 800 cycles |
| Operating Limits | |
| Charge temp | 0°C to 55°C |
| Discharge temp | -20°C to 70°C |
Independent test data: Mooch's test of the 53E ↗
At the standard 2650 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: BAK 53E (5300mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 1.06 A | 5h 00m |
| 0.5C | 2.65 A | 2h 00m |
| 1C | 5.3 A | 1h 00m |
Highlighted row is closest to the rated 10A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 2,650 mA | ~2h 00m |
| 1C | 5,300 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 5,300 mAh | 19.1 Wh | 10 A |
| 2P | 10,600 mAh | 38.2 Wh | 20 A |
| 3P | 15,900 mAh | 57.2 Wh | 30 A |
| 4P | 21,200 mAh | 76.3 Wh | 40 A |
| 5P | 26,500 mAh | 95.4 Wh | 50 A |
| 6P | 31,800 mAh | 114.5 Wh | 60 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| BAK 53E (this cell) | 5300 | 10A | 19.08 | 69g | 276.52 |
| Lishen LR2170SK | 5800 | 16A | 20.9 | — | — |
| EVE INR21700-58E | 5700 | 16A | 20.5 | 71g | 289 |
| Vapcell F56 | 5600 | 12A | 20.2 | 74g | 272 |
| LG M58T | 5570 | 12A | 20.1 | 71.2g | 282 |
| Linkdata 55P | 5500 | 40A | 19.8 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
