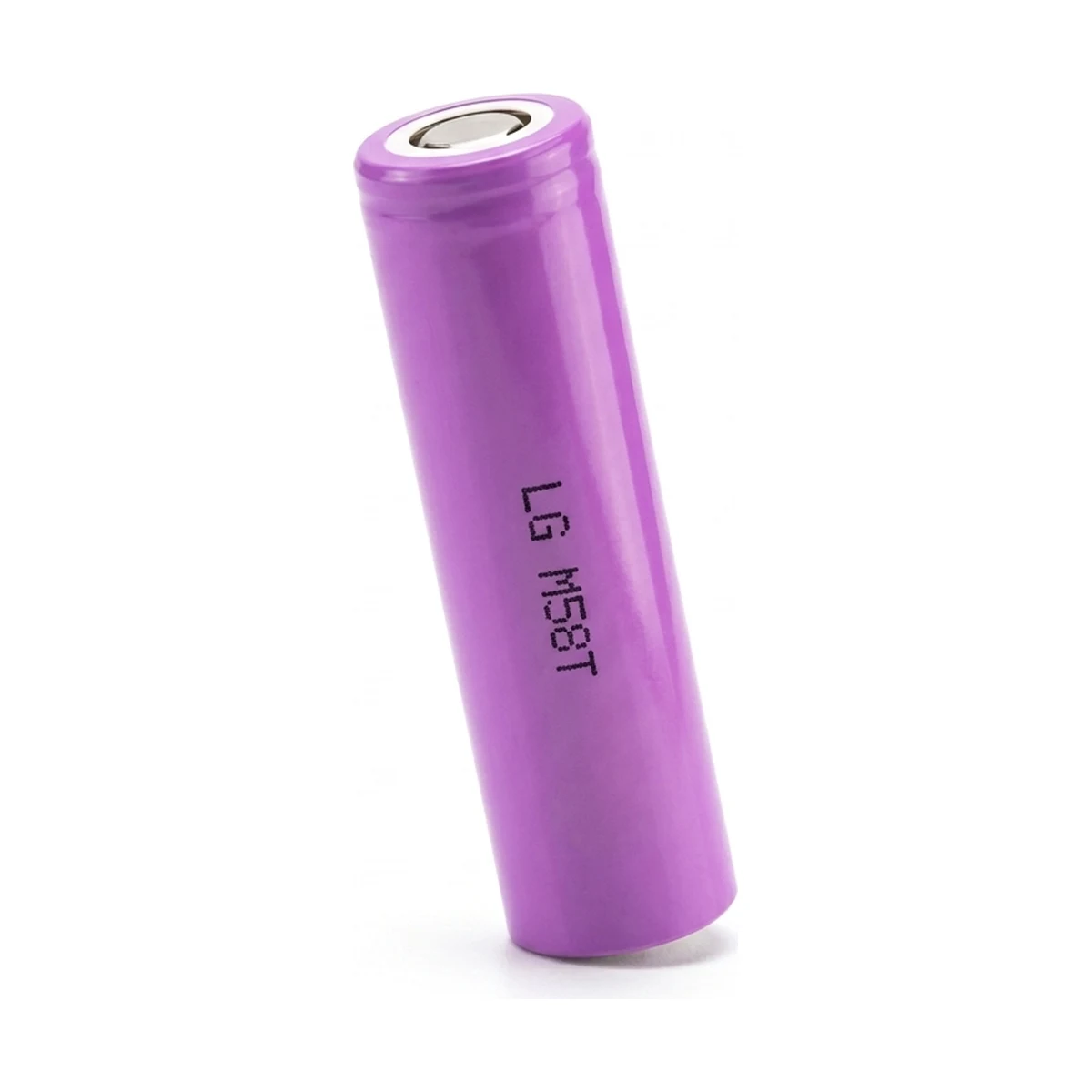

✱ RenderLG M58T
At 5570 mAh, this ranks #13 of 72 21700 cells in our database. Near the top for capacity among 21700 cells. More capacity than 83% of 21700 cells in our database, but lower discharge than average.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 12A (Mooch-tested) |
| Mooch CDR (trusted) | 12 A |
| Standard charge current | 1120 mA |
| Standard discharge current | 1120mA |
| Physical | |
| Form factor | 21700 |
| Dimensions | 21.8mm × 71mm |
| Weight | 71.2 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Clear |
| Performance | |
| Capacity | 5570 mAh |
| Energy | 20.05 Wh |
| Specific energy | 281.6 Wh/kg |
| Energy density | 756.58 Wh/L |
| Power density (gravimetric) | 607 W/kg |
| Power density (volumetric) | 1,630 W/L |
| Cycle life | 500 cycles |
| Year released | 2022 |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
Independent test data: Mooch's test of the M58T ↗
At the standard 1120 mA charge rate, a full charge takes about 5 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: LG M58T (5570mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 1.11 A | 5h 00m |
| 0.5C | 2.79 A | 2h 00m |
| 1C | 5.57 A | 1h 00m |
| 2C | 11.14 A | 30m |
Highlighted row is closest to the rated 12A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 1,120 mA | ~4h 58m |
| 0.5C | 2,785 mA | ~2h 00m |
| 1C | 5,570 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 5,570 mAh | 20.1 Wh | 12 A |
| 2P | 11,140 mAh | 40.1 Wh | 24 A |
| 3P | 16,710 mAh | 60.2 Wh | 36 A |
| 4P | 22,280 mAh | 80.2 Wh | 48 A |
| 5P | 27,850 mAh | 100.3 Wh | 60 A |
| 6P | 33,420 mAh | 120.3 Wh | 72 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| LG M58T (this cell) | 5570 | 12A | 20.05 | 71.2g | 281.6 |
| Linkdata 60P | 6000 | 60A | 21.6 | 68g | 318 |
| Vapcell F60 | 6000 | 12A | 21.6 | 74g | 292 |
| Reliance RH60 | 5850 | 20A | 21.1 | 71g | 297 |
| Reliance RS60 | 5850 | 50A | 21.1 | 71.5g | 295 |
| Lishen LR2170SK | 5800 | 16A | 20.9 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
Get new tools and build tips
We are always adding tools, cell data, and guides. Drop your email for new tool releases and battery-building tips. No spam, unsubscribe anytime.
Specs come from manufacturer datasheets and independent testing; Mooch-tested discharge ratings are shown when available because they reflect real continuous performance better than headline datasheet numbers. Browse the full 18650 & 21700 cell database to compare every cell.
Disclaimer: We do our best to keep the information on this page accurate, but we cannot guarantee that all specifications are correct or up to date. Cell characteristics can vary between production batches and may change over time. Do not rely solely on this data for safety-critical applications. Always verify against the manufacturer's official datasheet before use.
