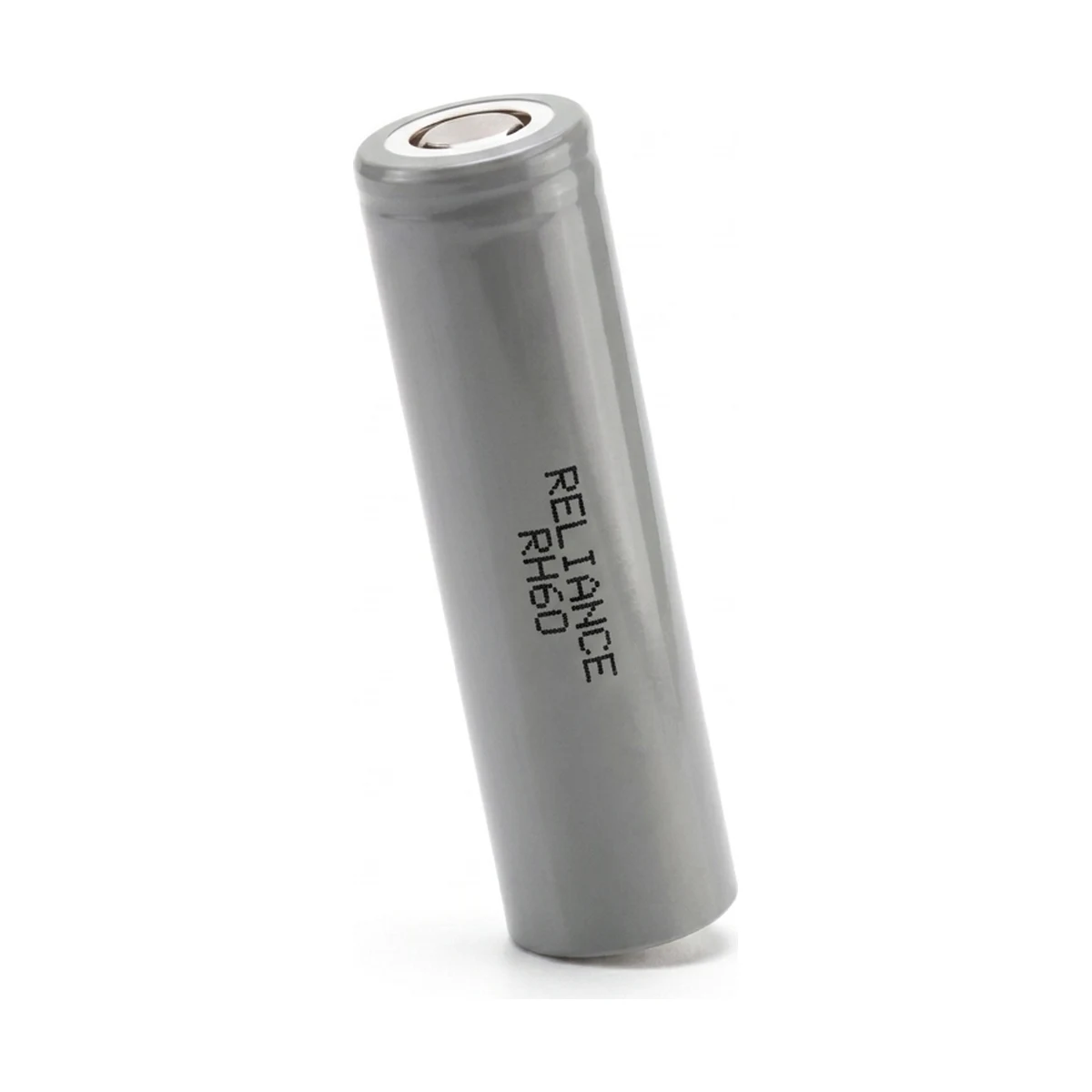

✱ RenderReliance RH60
At 5850 mAh, this ranks #8 of 72 21700 cells in our database. Near the top for capacity among 21700 cells. More capacity than 90% of 21700 cells in our database, but lower discharge than average.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 20A (Mooch-tested) |
| Mooch CDR (trusted) | 20 A |
| Standard charge current | 3000 mA |
| Internal resistance | 7 mΩ |
| Physical | |
| Form factor | 21700 |
| Dimensions | 21.6mm × 70.9mm |
| Weight | 71 g |
| Top type | Flat Top |
| Protected | No |
| Performance | |
| Capacity | 5850 mAh |
| Energy | 21.06 Wh |
| Specific energy | 296.62 Wh/kg |
| Energy density | 810.62 Wh/L |
| Power density (gravimetric) | 1,014 W/kg |
| Power density (volumetric) | 2,771 W/L |
| Cycle life | 500 cycles |
| Year released | 2026 |
| Operating Limits | |
| Discharge temp | -40°C to 80°C |
Independent test data: Mooch's test of the RH60 ↗
At the standard 3000 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: Reliance RH60 (5850mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 1.17 A | 5h 00m |
| 0.5C | 2.93 A | 2h 00m |
| 1C | 5.85 A | 1h 00m |
| 2C | 11.7 A | 30m |
| 3C | 17.55 A | 20m |
Highlighted row is closest to the rated 20A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 2,925 mA | ~2h 00m |
| Standard | 3,000 mA | ~1h 57m |
| 1C | 5,850 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 5,850 mAh | 21.1 Wh | 20 A |
| 2P | 11,700 mAh | 42.1 Wh | 40 A |
| 3P | 17,550 mAh | 63.2 Wh | 60 A |
| 4P | 23,400 mAh | 84.2 Wh | 80 A |
| 5P | 29,250 mAh | 105.3 Wh | 100 A |
| 6P | 35,100 mAh | 126.4 Wh | 120 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Reliance RH60 (this cell) | 5850 | 20A | 21.06 | 71g | 296.62 |
| Vapcell F63 | 6250 | 12A | 22.5 | — | — |
| Linkdata 60P | 6000 | 60A | 21.6 | 68g | 318 |
| Vapcell F60 | 6000 | 12A | 21.6 | 74g | 292 |
| Reliance RS60 | 5850 | 50A | 21.1 | 71.5g | 295 |
| Lishen LR2170SK | 5800 | 16A | 20.9 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
