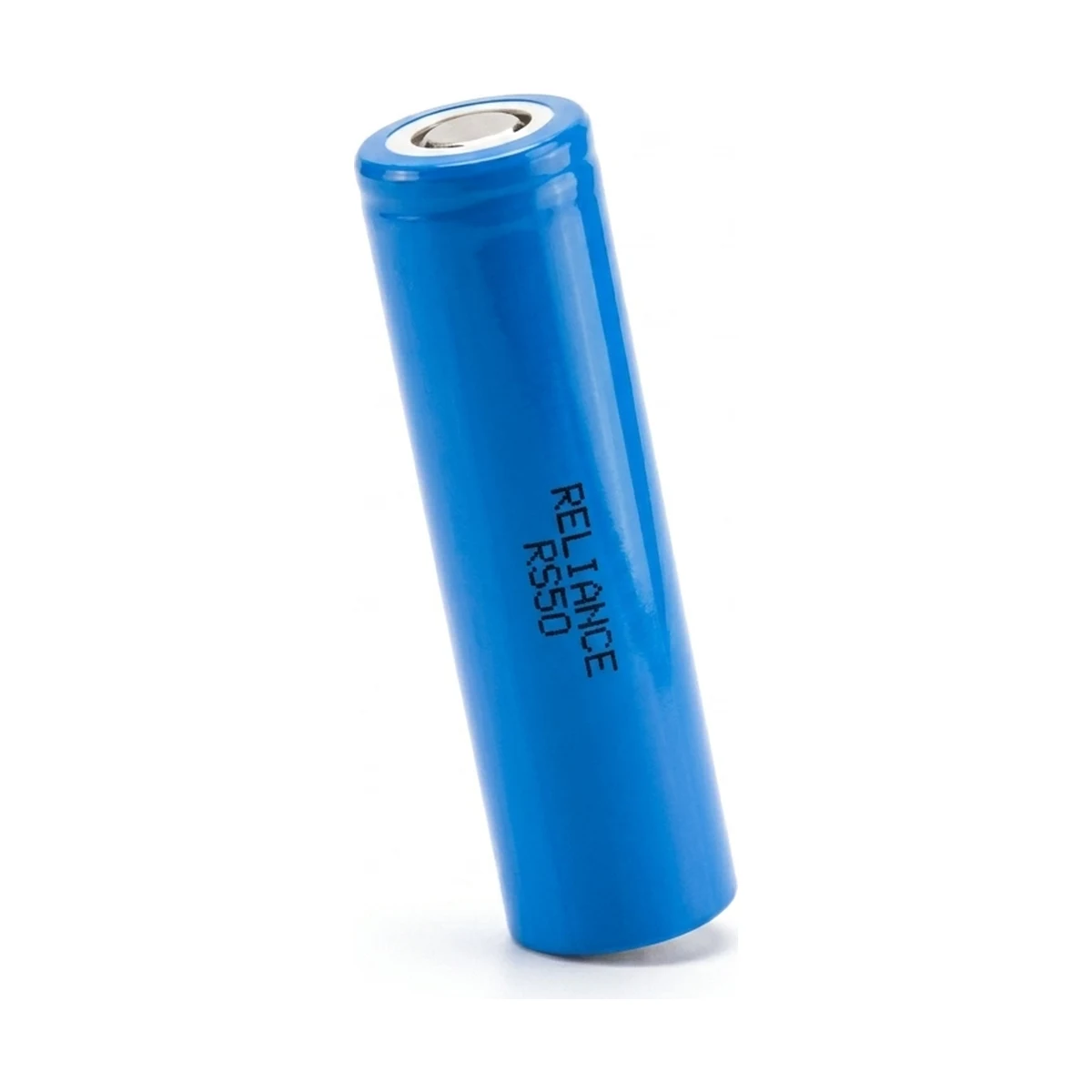

✱ RenderReliance RS50
At 4950 mAh, this ranks #36 of 72 21700 cells in our database. Mid-range for capacity among 21700 cells. Higher discharge than 100% of 21700 cells in our database. Great for high-drain builds.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 70A (Mooch-tested) |
| Mooch CDR (trusted) | 70 A |
| Standard charge current | 2500 mA |
| Standard discharge current | 2500mA |
| Internal resistance | 4 mΩ |
| Physical | |
| Form factor | 21700 |
| Dimensions | 21.35mm × 70.3mm |
| Weight | 67 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Blue |
| Performance | |
| Capacity | 4950 mAh |
| Energy | 17.82 Wh |
| Specific energy | 265.97 Wh/kg |
| Energy density | 708.05 Wh/L |
| Power density (gravimetric) | 3,761 W/kg |
| Power density (volumetric) | 10,013 W/L |
| Year released | 2024 |
| Operating Limits | |
| Charge temp | 0°C to 60°C |
| Discharge temp | -40°C to 80°C |
Independent test data: Mooch's test of the RS50 ↗
At the standard 2500 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: Reliance RS50 (4950mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.99 A | 5h 00m |
| 0.5C | 2.48 A | 2h 00m |
| 1C | 4.95 A | 1h 00m |
| 2C | 9.9 A | 30m |
| 3C | 14.85 A | 20m |
| 5C | 24.75 A | 12m |
| 8C | 39.6 A | 7m 30s |
| 10C | 49.5 A | 6m |
Highlighted row is closest to the rated 70A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 2,475 mA | ~2h 00m |
| 1C | 4,950 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 4,950 mAh | 17.8 Wh | 70 A |
| 2P | 9,900 mAh | 35.6 Wh | 140 A |
| 3P | 14,850 mAh | 53.5 Wh | 210 A |
| 4P | 19,800 mAh | 71.3 Wh | 280 A |
| 5P | 24,750 mAh | 89.1 Wh | 350 A |
| 6P | 29,700 mAh | 106.9 Wh | 420 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Reliance RS50 (this cell) | 4950 | 70A | 17.82 | 67g | 265.97 |
| BAK 53E | 5300 | 10A | 19.1 | 69g | 277 |
| Samsung INR21700-53G | 5300 | 10A | 19.1 | 72g | 265 |
| LG M50T | 5014 | 14A | 18.1 | 70g | 258 |
| Ampace JP50P1 | 5000 | 40A | 18 | 72g | 250 |
| Amprius INR21700-50Q | 5000 | 50A | 18 | 70g | 257 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
