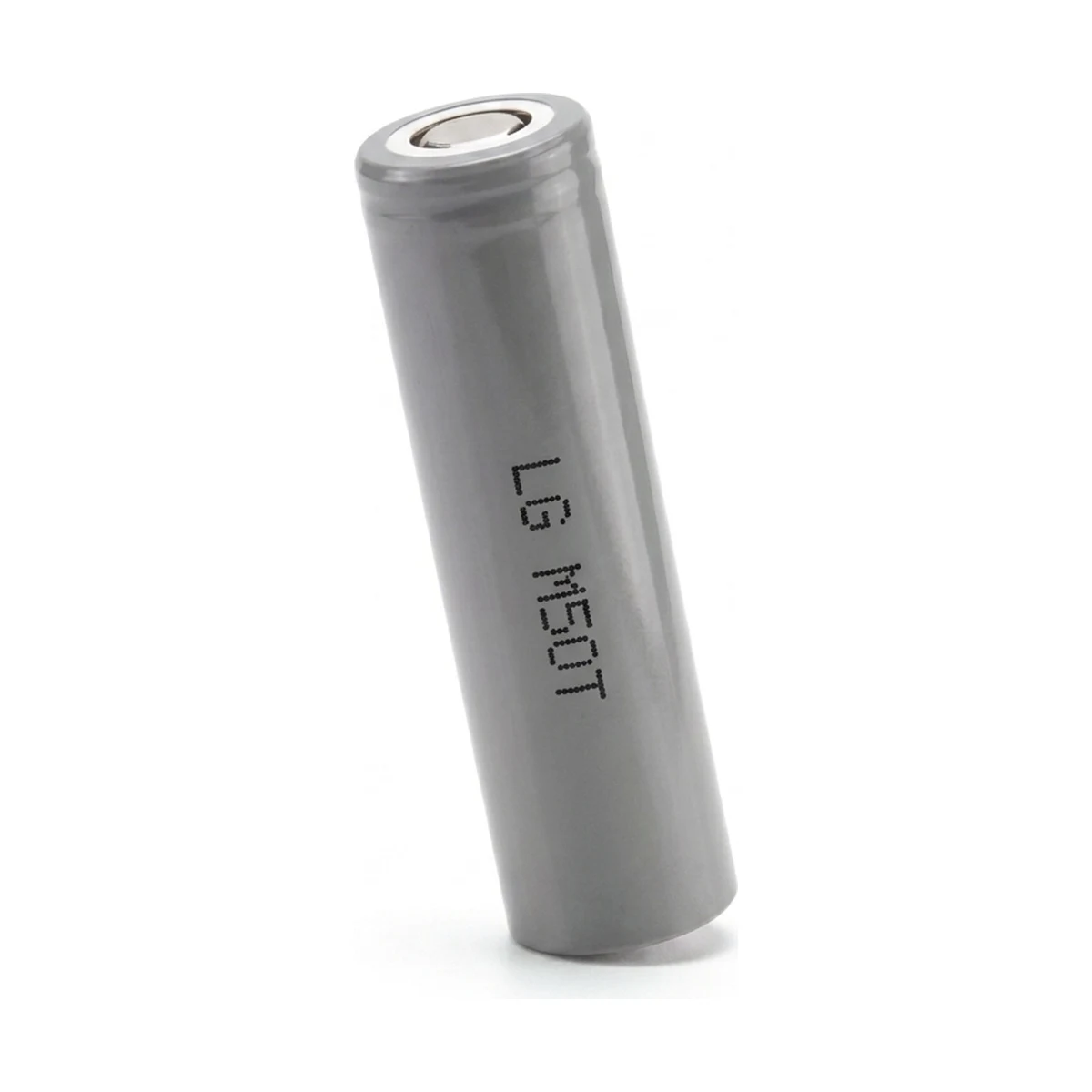

✱ RenderLG M50T
At 5014 mAh, this ranks #18 of 72 21700 cells in our database. Mid-range for capacity among 21700 cells. More capacity than 76% of 21700 cells in our database, but lower discharge than average.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 14A (Mooch-tested) |
| Mooch CDR (trusted) | 14 A |
| Standard charge current | 1455 mA |
| Standard discharge current | 1000mA |
| Internal resistance | 25 mΩ |
| Physical | |
| Form factor | 21700 |
| Dimensions | 21.1mm × 70.2mm |
| Weight | 70 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Gray |
| Performance | |
| Capacity | 5014 mAh |
| Energy | 18.05 Wh |
| Specific energy | 257.86 Wh/kg |
| Energy density | 735.34 Wh/L |
| Power density (gravimetric) | 720 W/kg |
| Power density (volumetric) | 2,053 W/L |
| Cycle life | 300 cycles |
| Year released | 2018 |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 55°C |
Independent test data: Mooch's test of the M50T ↗
At the standard 1455 mA charge rate, a full charge takes about 3.4 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: LG M50T (5014mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 1 A | 5h 00m |
| 0.5C | 2.51 A | 2h 00m |
| 1C | 5.01 A | 1h 00m |
| 2C | 10.03 A | 30m |
Highlighted row is closest to the rated 14A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 1,455 mA | ~3h 27m |
| 0.5C | 2,507 mA | ~2h 00m |
| 1C | 5,014 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 5,014 mAh | 18.1 Wh | 14 A |
| 2P | 10,028 mAh | 36.1 Wh | 28 A |
| 3P | 15,042 mAh | 54.2 Wh | 42 A |
| 4P | 20,056 mAh | 72.2 Wh | 56 A |
| 5P | 25,070 mAh | 90.3 Wh | 70 A |
| 6P | 30,084 mAh | 108.3 Wh | 84 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| LG M50T (this cell) | 5014 | 14A | 18.05 | 70g | 257.86 |
| Linkdata 55P | 5500 | 40A | 19.8 | — | — |
| Samsung INR21700-55E | 5490 | 10A | 19.8 | — | — |
| BAK 53E | 5300 | 10A | 19.1 | 69g | 277 |
| Samsung INR21700-53G | 5300 | 10A | 19.1 | 72g | 265 |
| Ampace JP50P1 | 5000 | 40A | 18 | 72g | 250 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
