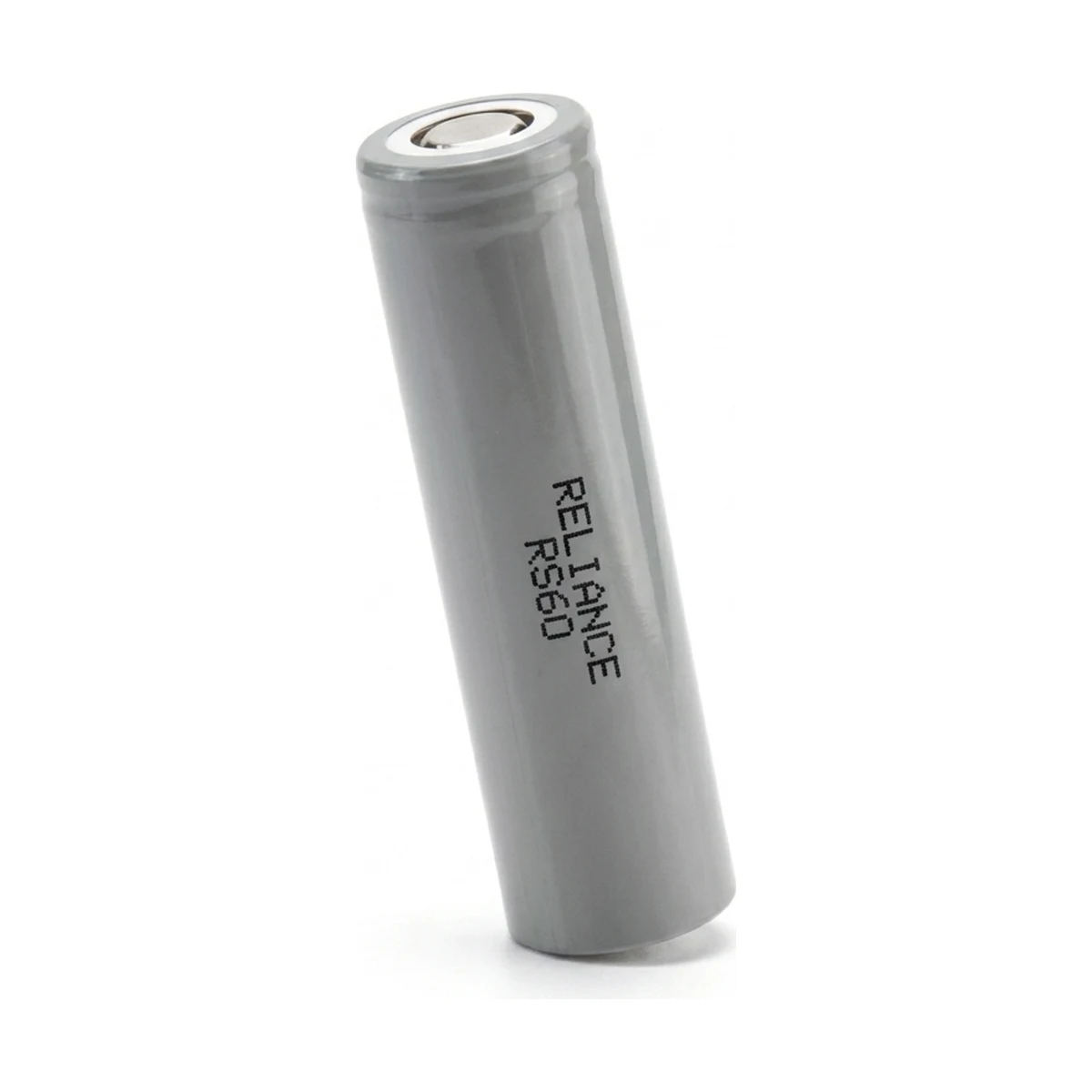

✱ Render

21.35 × 70.3 mm · 71.5 g

21700NMC Mooch-tested · 50 A

Reliance RS60

Name: Reliance RS60 Lithium Battery Cell
Brand: Reliance

Reliance · released 2025

Capacity5850 mAh21.06 Wh · 294.55 Wh/kg

Mooch continuous50 ASize to this figure

Voltage window3.6 V2.5 – 4.2 V

Build a pack with this cell →Download spec sheet (PDF)Mooch's test ↗

At 5850 mAh, this ranks #8 of 72 21700 cells in our database. Near the top for capacity among 21700 cells. Top tier for both capacity and discharge. One of the best all-around 21700 cells.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	50A (Mooch-tested)
Mooch CDR (trusted)	50 A
Physical
Form factor	21700
Dimensions	21.35mm × 70.3mm
Weight	71.5 g
Top type	Flat Top
Protected	No
Performance
Capacity	5850 mAh
Energy	21.06 Wh
Specific energy	294.55 Wh/kg
Energy density	836.79 Wh/L
Power density (gravimetric)	2,517 W/kg
Power density (volumetric)	7,152 W/L
Cycle life	500 cycles
Year released	2025
Operating Limits
Charge temp	-20°C to 60°C
Discharge temp	-40°C to 80°C

Independent test data: Mooch's test of the RS60 ↗

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Reliance RS60 (5850mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	1.17 A	5h 00m
0.5C	2.93 A	2h 00m
1C	5.85 A	1h 00m
2C	11.7 A	30m
3C	17.55 A	20m
5C	29.25 A	12m
8C	46.8 A	7m 30s

Highlighted row is closest to the rated 50A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	2,925 mA	~2h 00m
1C	5,850 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	5,850 mAh	21.1 Wh	50 A
2P	11,700 mAh	42.1 Wh	100 A
3P	17,550 mAh	63.2 Wh	150 A
4P	23,400 mAh	84.2 Wh	200 A
5P	29,250 mAh	105.3 Wh	250 A
6P	35,100 mAh	126.4 Wh	300 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal11,700mAh295Wh100A maxCell weight: 1 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells46.8V nominal23,400mAh1095Wh200A maxCell weight: 3.72 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells57.6V nominal23,400mAh1348Wh200A maxCell weight: 4.58 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.4V nominal35,100mAh505Wh300A maxCell weight: 1.72 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksGood balance of capacity for range and discharge for hills. Works well in most ebike packs.

Car AudioEnough discharge to handle amplifier bursts without voltage sag.

High-Drain VapingAbove the 25A Mooch CDR threshold. Suitable for regulated and mechanical mods.

FlashlightsHigh capacity means long runtime. Great for everyday carry and extended use.

Power ToolsSufficient discharge and capacity for most power tool packs.

Physical dimensions

Dimensions21.35mm × 70.3mm

TopFlat Top

Format21700

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Reliance RS60 (this cell)	5850	50A	21.06	71.5g	294.55
Vapcell F63	6250	12A	22.5	—	—
Linkdata 60P	6000	60A	21.6	68g	318
Vapcell F60	6000	12A	21.6	74g	292
Reliance RH60	5850	20A	21.1	71g	297
Lishen LR2170SK	5800	16A	20.9	—	—

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Reliance RS60?

What is the maximum discharge rate of the Reliance RS60?

How many RS60 cells do I need for a 48V ebike battery?

What does the Reliance RS60 weigh?

Can I use the RS60 for vaping?

What is the cycle life of the Reliance RS60?

What temperature range can the RS60 operate in?

What size is the Reliance RS60?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
