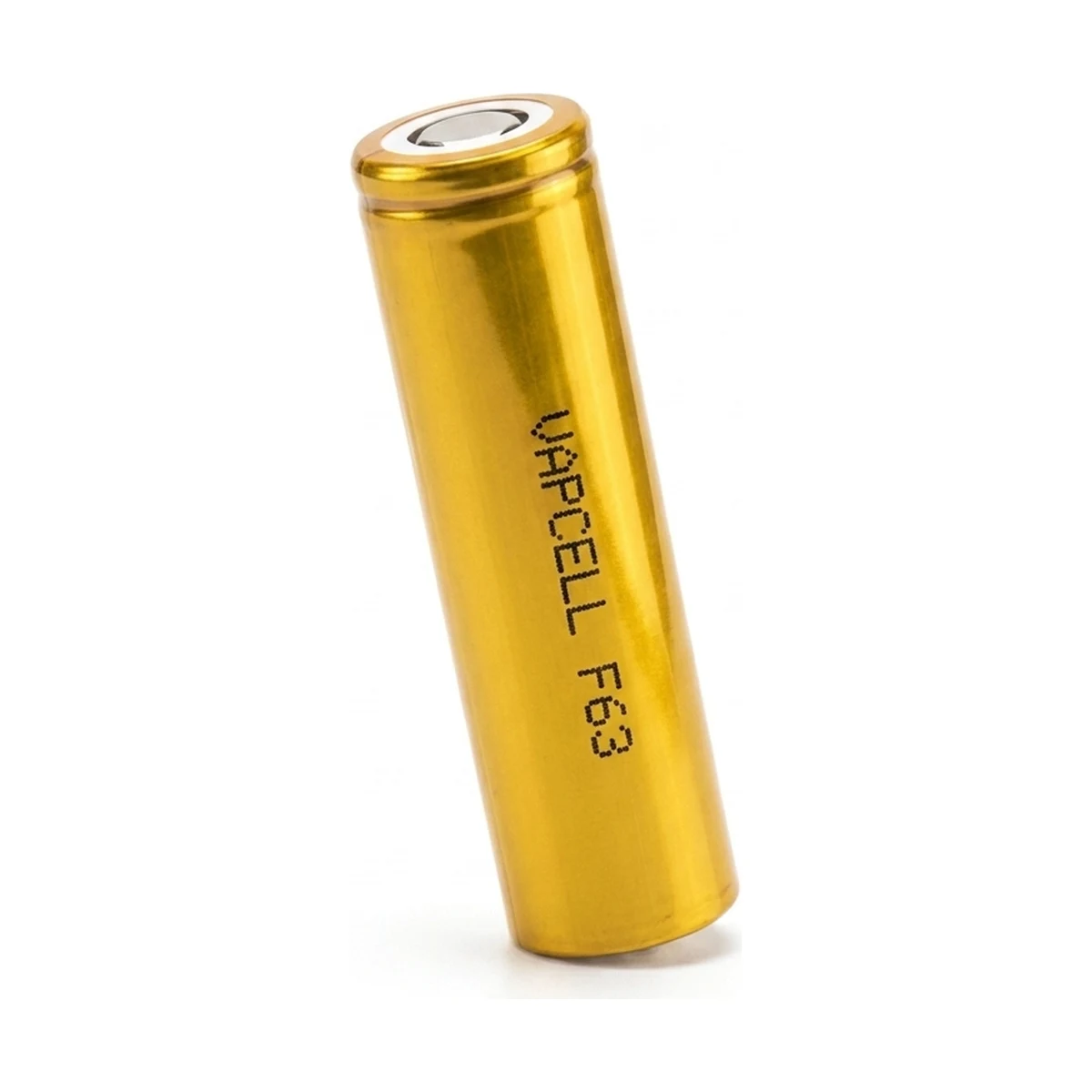

✱ Render

21.6 × 71 mm

21700NMC Mooch-tested · 12 A

Vapcell F63

Name: Vapcell F63 Lithium Battery Cell
Brand: Vapcell

Vapcell

Capacity6250 mAh22.5 Wh

Mooch continuous12 ASize to this figure

Resistance20 mΩDC internal resistance

Voltage window3.6 V2.5 – 4.2 V

Standard charge2000 mA~3.1 h to full

Build a pack with this cell →Download spec sheet (PDF)Open the datasheet Mooch's test ↗

At 6250 mAh, this ranks #4 of 72 21700 cells in our database. Near the top for capacity among 21700 cells. More capacity than 96% of 21700 cells in our database, but lower discharge than average.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	12A (Mooch-tested)
Mooch CDR (trusted)	12 A
Standard charge current	2000 mA
Internal resistance	20 mΩ
Physical
Form factor	21700
Dimensions	21.6mm × 71mm
Top type	Flat Top
Protected	No
Wrap color	Gold
Performance
Capacity	6250 mAh
Energy	22.5 Wh
Energy density	864.82 Wh/L
Power density (volumetric)	1,660 W/L

Independent test data: Mooch's test of the F63 ↗

At the standard 2000 mA charge rate, a full charge takes about 3.1 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Vapcell F63 (6250mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	1.25 A	5h 00m
0.5C	3.13 A	2h 00m
1C	6.25 A	1h 00m
2C	12.5 A	30m

Highlighted row is closest to the rated 12A continuous discharge.

Charging

Rate	Current	Estimated time
Standard	2,000 mA	~3h 08m
0.5C	3,125 mA	~2h 00m
1C	6,250 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Datasheet

Download official Vapcell F63 datasheet (PDF) ↗

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	6,250 mAh	22.5 Wh	12 A
2P	12,500 mAh	45 Wh	24 A
3P	18,750 mAh	67.5 Wh	36 A
4P	25,000 mAh	90 Wh	48 A
5P	31,250 mAh	112.5 Wh	60 A
6P	37,500 mAh	135 Wh	72 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal12,500mAh315Wh24A max

13S4P

48V ebike standard

52 cells46.8V nominal25,000mAh1170Wh48A max

16S4P

DIY powerwall

64 cells57.6V nominal25,000mAh1440Wh48A max

4S6P

Power tool replacement

24 cells14.4V nominal37,500mAh540Wh72A max

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksGood balance of capacity for range and discharge for hills. Works well in most ebike packs.

Car AudioMight work for smaller setups. Check your amp's peak current draw.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsHigh capacity means long runtime. Great for everyday carry and extended use.

Power ToolsMay work for lighter-duty tools. Check your tool's current requirements.

Physical dimensions

Dimensions21.6mm × 71mm

TopFlat Top

Format21700

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Vapcell F63 (this cell)	6250	12A	22.5	—	—
Amprius INR21700-65	6500	13A	23.4	74g	316
BAK 65E	6500	25A	23.4	—	—
Linkdata 65P	6500	52A	23.4	70.2g	333
Linkdata 60P	6000	60A	21.6	68g	318
Vapcell F60	6000	12A	21.6	74g	292

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Vapcell F63?

What is the maximum discharge rate of the Vapcell F63?

How many F63 cells do I need for a 48V ebike battery?

Can I use the F63 for vaping?

What size is the Vapcell F63?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
