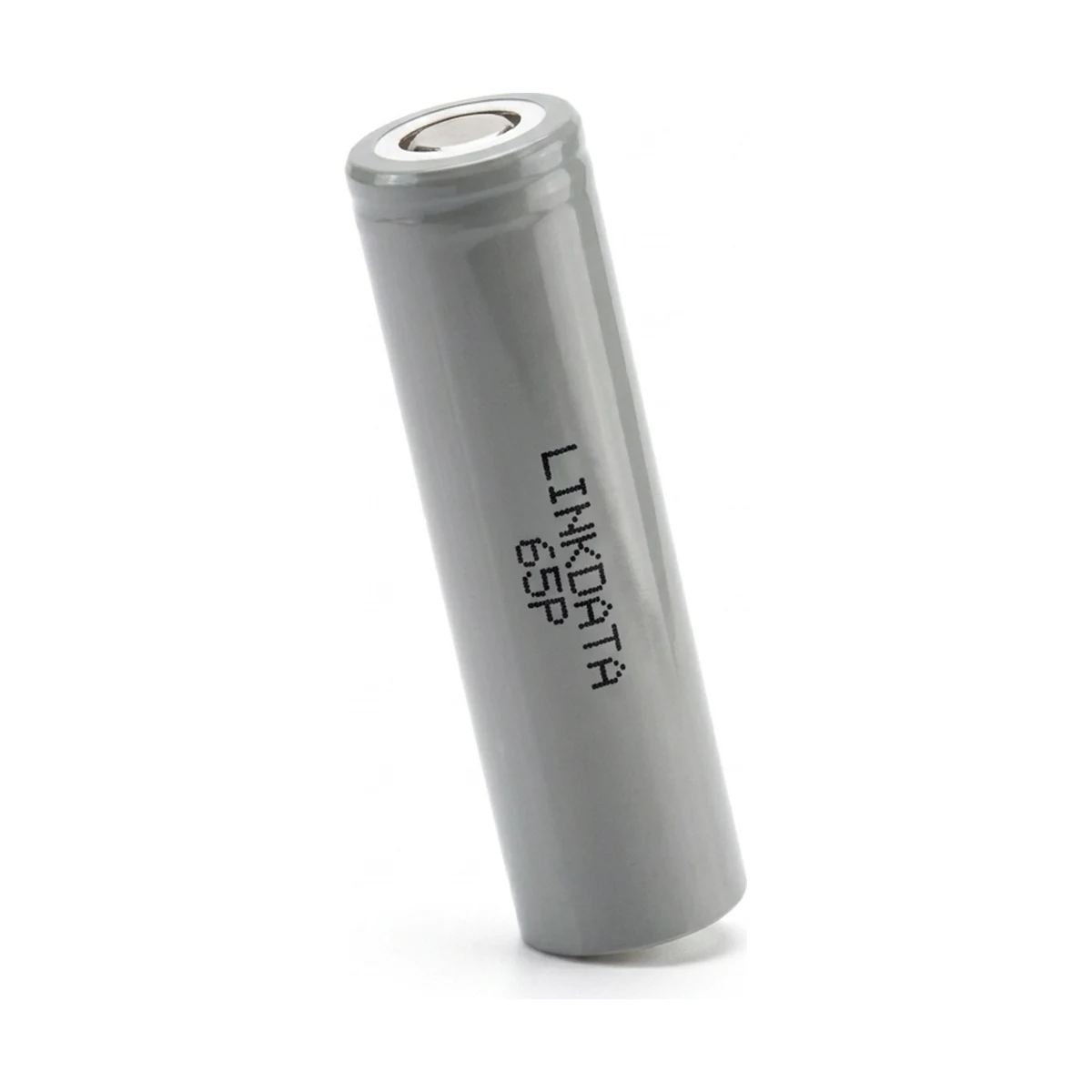

✱ Render

70.2 g

21700NMC Mooch-tested · 52 A

Linkdata 65P

Name: Linkdata 65P Lithium Battery Cell
Brand: Linkdata

Linkdata · released 2026

Capacity6500 mAh23.4 Wh · 333.33 Wh/kg

Mooch continuous52 ASize to this figure

Resistance4.5 mΩDC internal resistance

Voltage window3.6 V2.5 – 4.2 V

Standard charge8000 mA~0.8 h to full

Build a pack with this cell →Download spec sheet (PDF)Mooch's test ↗

At 6500 mAh, this ranks #1 of 72 21700 cells in our database. Near the top for capacity among 21700 cells. Top tier for both capacity and discharge. One of the best all-around 21700 cells.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	52A (Mooch-tested)
Mooch CDR (trusted)	52 A
Standard charge current	8000 mA
Internal resistance	4.5 mΩ
Physical
Form factor	21700
Weight	70.2 g
Protected	No
Performance
Capacity	6500 mAh
Energy	23.4 Wh
Specific energy	333.33 Wh/kg
Power density (gravimetric)	2,667 W/kg
Cycle life	600 cycles
Year released	2026

Independent test data: Mooch's test of the 65P ↗

At the standard 8000 mA charge rate, a full charge takes about 0.8 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Linkdata 65P (6500mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	1.3 A	5h 00m
0.5C	3.25 A	2h 00m
1C	6.5 A	1h 00m
2C	13 A	30m
3C	19.5 A	20m
5C	32.5 A	12m
8C	52 A	7m 30s

Highlighted row is closest to the rated 52A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	3,250 mA	~2h 00m
1C	6,500 mA	~1h 00m
Standard	8,000 mA	~0h 49m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	6,500 mAh	23.4 Wh	52 A
2P	13,000 mAh	46.8 Wh	104 A
3P	19,500 mAh	70.2 Wh	156 A
4P	26,000 mAh	93.6 Wh	208 A
5P	32,500 mAh	117 Wh	260 A
6P	39,000 mAh	140.4 Wh	312 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal13,000mAh328Wh104A maxCell weight: 0.98 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells46.8V nominal26,000mAh1217Wh208A maxCell weight: 3.65 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells57.6V nominal26,000mAh1498Wh208A maxCell weight: 4.49 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.4V nominal39,000mAh562Wh312A maxCell weight: 1.68 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksGood balance of capacity for range and discharge for hills. Works well in most ebike packs.

Car AudioEnough discharge to handle amplifier bursts without voltage sag.

High-Drain VapingAbove the 25A Mooch CDR threshold. Suitable for regulated and mechanical mods.

FlashlightsHigh capacity means long runtime. Great for everyday carry and extended use.

Power ToolsSufficient discharge and capacity for most power tool packs.

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Linkdata 65P (this cell)	6500	52A	23.4	70.2g	333.33
Amprius INR21700-65	6500	13A	23.4	74g	316
BAK 65E	6500	25A	23.4	—	—
Vapcell F63	6250	12A	22.5	—	—
Linkdata 60P	6000	60A	21.6	68g	318
Vapcell F60	6000	12A	21.6	74g	292

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Linkdata 65P?

What is the maximum discharge rate of the Linkdata 65P?

How many 65P cells do I need for a 48V ebike battery?

What does the Linkdata 65P weigh?

Can I use the 65P for vaping?

What is the cycle life of the Linkdata 65P?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
