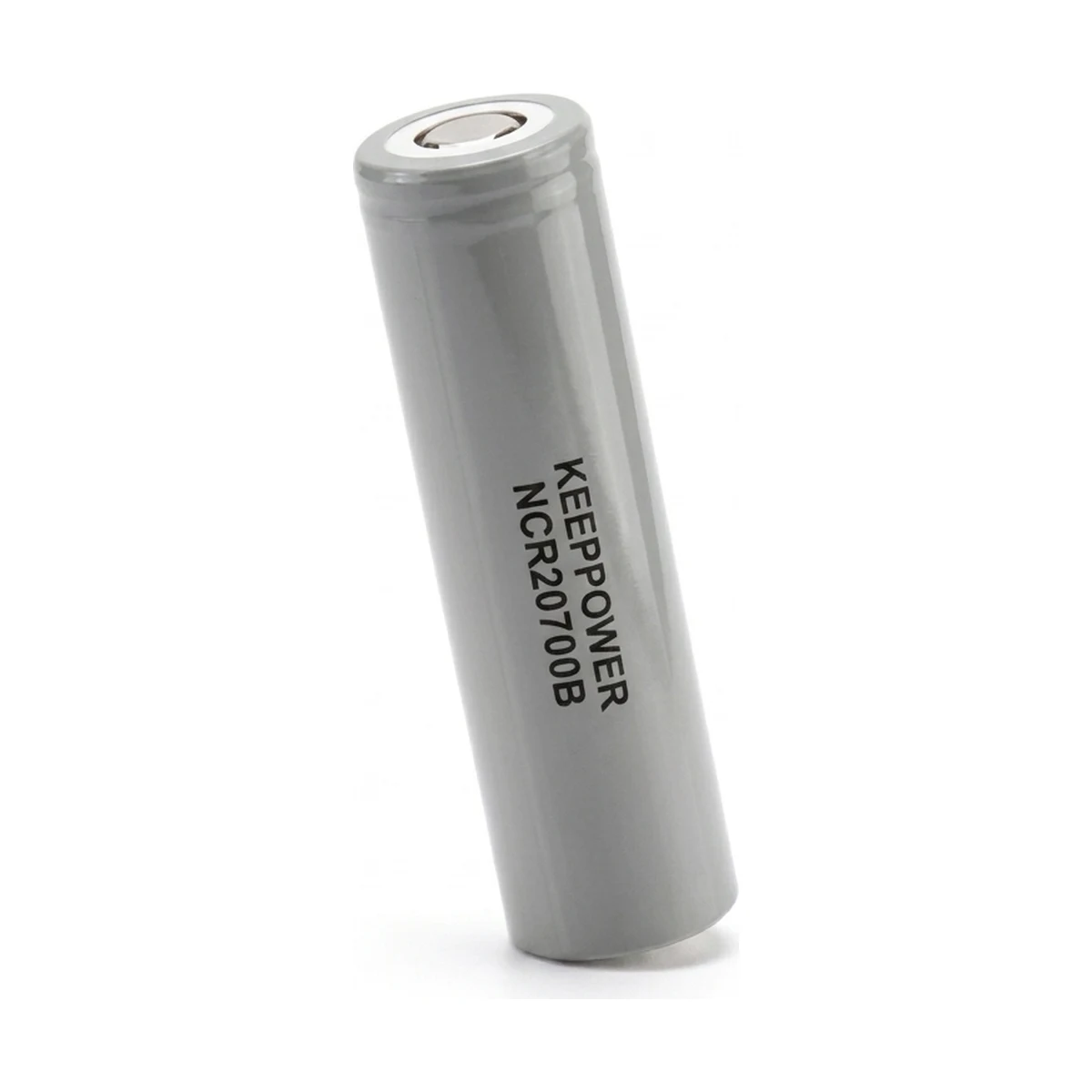

✱ RenderKeeppower NCR20700B
At 4250 mAh, this ranks #1 of 12 20700 cells in our database. Near the top for capacity among 20700 cells. More capacity than 100% of 20700 cells in our database, but lower discharge than average.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NCA |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 15A (Mooch-tested) |
| Mooch CDR (trusted) | 15 A |
| Standard charge current | 2000 mA |
| Physical | |
| Form factor | 20700 |
| Dimensions | 20.35mm × 70.3mm |
| Weight | 63 g |
| Top type | Flat Top |
| Protected | No |
| Performance | |
| Capacity | 4250 mAh |
| Energy | 15.3 Wh |
| Specific energy | 242.86 Wh/kg |
| Energy density | 669.14 Wh/L |
| Power density (gravimetric) | 857 W/kg |
| Power density (volumetric) | 2,362 W/L |
| Operating Limits | |
| Charge temp | 10°C to 45°C |
| Discharge temp | -20°C to 60°C |
Independent test data: Mooch's test of the NCR20700B ↗
At the standard 2000 mA charge rate, a full charge takes about 2.1 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: Keeppower NCR20700B (4250mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.85 A | 5h 00m |
| 0.5C | 2.13 A | 2h 00m |
| 1C | 4.25 A | 1h 00m |
| 2C | 8.5 A | 30m |
| 3C | 12.75 A | 20m |
Highlighted row is closest to the rated 15A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 2,000 mA | ~2h 08m |
| 0.5C | 2,125 mA | ~2h 00m |
| 1C | 4,250 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 4,250 mAh | 15.3 Wh | 15 A |
| 2P | 8,500 mAh | 30.6 Wh | 30 A |
| 3P | 12,750 mAh | 45.9 Wh | 45 A |
| 4P | 17,000 mAh | 61.2 Wh | 60 A |
| 5P | 21,250 mAh | 76.5 Wh | 75 A |
| 6P | 25,500 mAh | 91.8 Wh | 90 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Keeppower NCR20700B (this cell) | 4250 | 15A | 15.3 | 63g | 242.86 |
| Enercig 20700 4000mAh 15A | 4000 | 15A | 14.4 | 63g | 229 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
