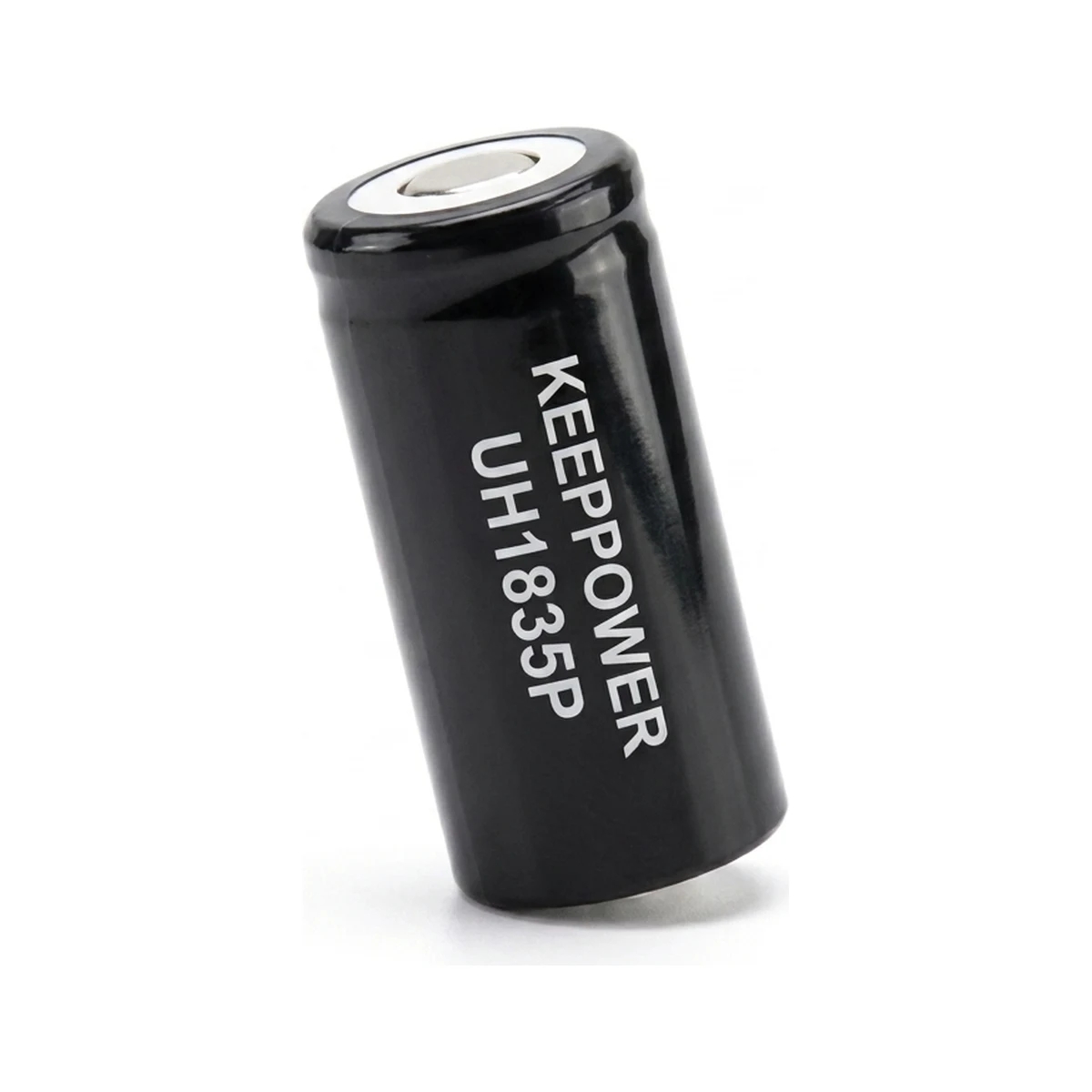

✱ RenderKeeppower UH1835P
At 1200 mAh, this ranks #3 of 10 18350 cells in our database. Mid-range for capacity among 18350 cells. Top tier for both capacity and discharge. One of the best all-around 18350 cells.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2 V |
| Max continuous discharge | 10A (Mooch-tested) |
| Mooch CDR (trusted) | 10 A |
| Standard charge current | 220 mA |
| Physical | |
| Form factor | 18350 |
| Dimensions | 18.3mm × 35mm |
| Weight | 25 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Black |
| Performance | |
| Capacity | 1200 mAh |
| Energy | 4.32 Wh |
| Specific energy | 172.8 Wh/kg |
| Energy density | 469.27 Wh/L |
| Power density (gravimetric) | 1,440 W/kg |
| Power density (volumetric) | 3,911 W/L |
| Year released | 2017 |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
Independent test data: Mooch's test of the UH1835P ↗
At the standard 220 mA charge rate, a full charge takes about 5.5 hours. The last bit is a slow taper to top it off.
Voltage operating window
2VNominal
3.6VMax charge
4.2V
Usable range: 2.2V
C-rate conversion: Keeppower UH1835P (1200mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.24 A | 5h 00m |
| 0.5C | 0.6 A | 2h 00m |
| 1C | 1.2 A | 1h 00m |
| 2C | 2.4 A | 30m |
| 3C | 3.6 A | 20m |
| 5C | 6 A | 12m |
| 8C | 9.6 A | 7m 30s |
Highlighted row is closest to the rated 10A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 220 mA | ~5h 27m |
| 0.5C | 600 mA | ~2h 00m |
| 1C | 1,200 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 4V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 6V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 8V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 14V | Ebike (24V system) |
| 10S | 36V | 42V | 20V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 26V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 28V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 32V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 1,200 mAh | 4.3 Wh | 10 A |
| 2P | 2,400 mAh | 8.6 Wh | 20 A |
| 3P | 3,600 mAh | 13 Wh | 30 A |
| 4P | 4,800 mAh | 17.3 Wh | 40 A |
| 5P | 6,000 mAh | 21.6 Wh | 50 A |
| 6P | 7,200 mAh | 25.9 Wh | 60 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Keeppower UH1835P (this cell) | 1200 | 10A | 4.32 | 25g | 172.8 |
| Vapcell F16 | 1600 | 3A | 5.8 | 26g | 222 |
| Vapcell H16 | 1600 | 5A | 5.8 | 26g | 222 |
| Vapcell 18350 1100mAh 9A | 1100 | 9A | 4 | 26g | 152 |
| Vapcell M11 | 1100 | 9A | 4 | 26g | 152 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
