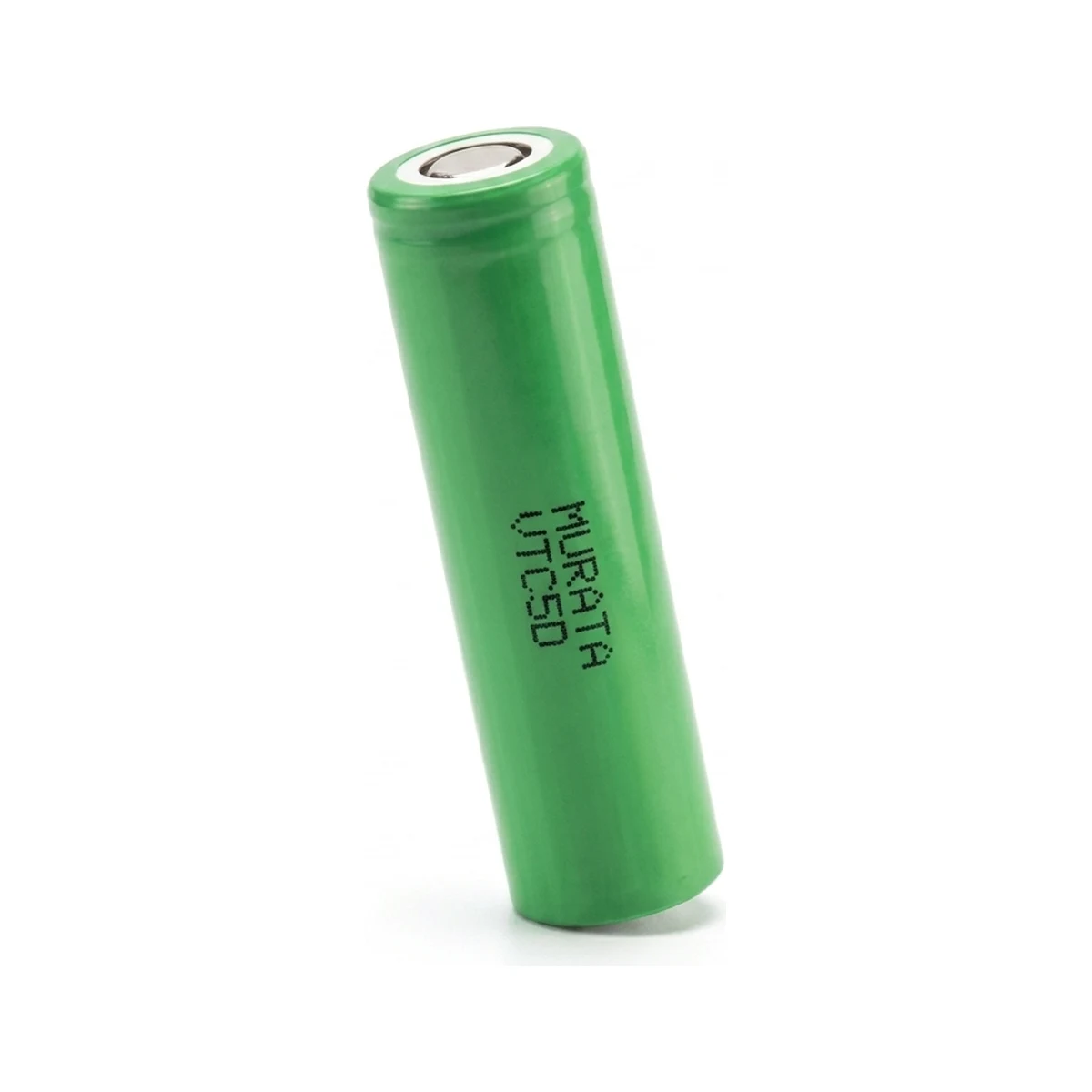

✱ RenderMurata VTC5D
At 2700 mAh, this ranks #92 of 279 18650 cells in our database. Mid-range for capacity among 18650 cells. Higher discharge than 94% of 18650 cells in our database. Great for high-drain builds.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2 V |
| Max continuous discharge | 35A (Mooch-tested) |
| Mooch CDR (trusted) | 35 A |
| Standard charge current | 2700 mA |
| Standard discharge current | 540mA |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.5mm × 65.25mm |
| Weight | 46.7 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Green |
| Performance | |
| Capacity | 2700 mAh |
| Energy | 9.72 Wh |
| Specific energy | 208.14 Wh/kg |
| Energy density | 554.18 Wh/L |
| Power density (gravimetric) | 2,698 W/kg |
| Power density (volumetric) | 7,184 W/L |
| Cycle life | 500 cycles |
| Year released | 2018 |
| Operating Limits | |
| Charge temp | 0°C to 60°C |
| Discharge temp | -20°C to 60°C |
Independent test data: Mooch's test of the VTC5D ↗
At the standard 2700 mA charge rate, a full charge takes about 1 hours. The last bit is a slow taper to top it off.
Voltage operating window
2VNominal
3.6VMax charge
4.2V
Usable range: 2.2V
C-rate conversion: Murata VTC5D (2700mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.54 A | 5h 00m |
| 0.5C | 1.35 A | 2h 00m |
| 1C | 2.7 A | 1h 00m |
| 2C | 5.4 A | 30m |
| 3C | 8.1 A | 20m |
| 5C | 13.5 A | 12m |
| 8C | 21.6 A | 7m 30s |
| 10C | 27 A | 6m |
Highlighted row is closest to the rated 35A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,350 mA | ~2h 00m |
| 1C | 2,700 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 4V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 6V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 8V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 14V | Ebike (24V system) |
| 10S | 36V | 42V | 20V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 26V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 28V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 32V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,700 mAh | 9.7 Wh | 35 A |
| 2P | 5,400 mAh | 19.4 Wh | 70 A |
| 3P | 8,100 mAh | 29.2 Wh | 105 A |
| 4P | 10,800 mAh | 38.9 Wh | 140 A |
| 5P | 13,500 mAh | 48.6 Wh | 175 A |
| 6P | 16,200 mAh | 58.3 Wh | 210 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Murata VTC5D (this cell) | 2700 | 35A | 9.72 | 46.7g | 208.14 |
| LG LGABE11865 | 3200 | 9A | 12 | 49g | 245 |
| LG LGEBE11865 | 3200 | 4.9A | 12 | 49g | 245 |
| Samsung ICR18650-32A | 3200 | 6.4A | 12 | 50g | 240 |
| EVE EVE-INR18650/33V | 3200 | 10A | 11.5 | — | — |
| LG LGDBMH11865 | 3200 | 10A | 11.5 | 49g | 235 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
