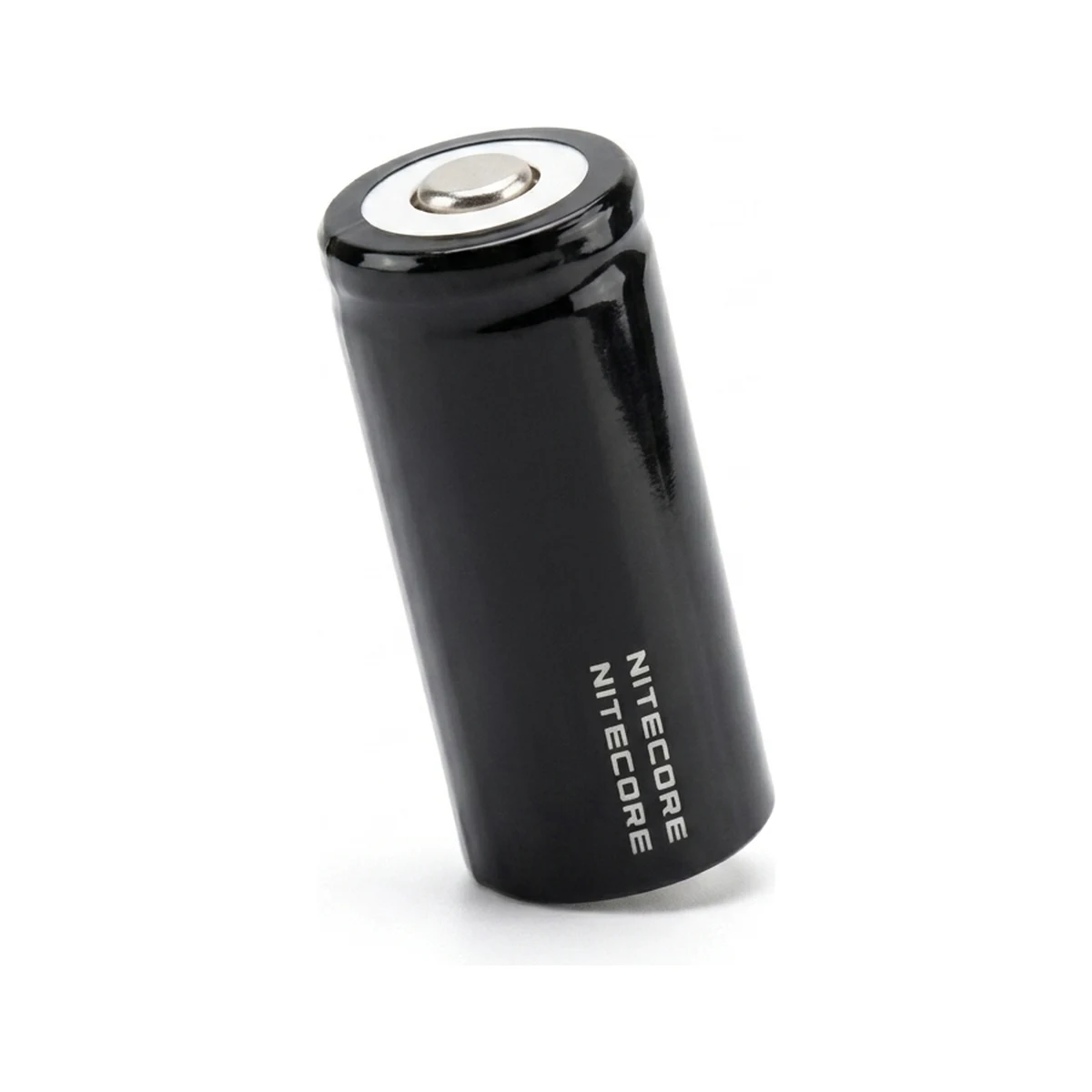

✱ RenderNitecore 18350 700mAh 7A
At 700 mAh, this ranks #9 of 10 18350 cells in our database. On the lower end for capacity among 18350 cells. A mid-range 18350 cell. Solid for builds that don't need extreme capacity or discharge.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | LMO |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.75 V |
| Max continuous discharge | 7A (Mooch-tested) |
| Mooch CDR (trusted) | 7 A |
| Physical | |
| Form factor | 18350 |
| Dimensions | 18.2mm × 36.4mm |
| Weight | 22 g |
| Top type | Button Top |
| Protected | No |
| Wrap color | Black |
| Performance | |
| Capacity | 700 mAh |
| Energy | 2.52 Wh |
| Specific energy | 114.55 Wh/kg |
| Energy density | 266.11 Wh/L |
| Power density (gravimetric) | 1,145 W/kg |
| Power density (volumetric) | 2,661 W/L |
| Cycle life | 500 cycles |
Independent test data: Mooch's test of the 18350 700mAh 7A ↗
Voltage operating window
2.75VNominal
3.6VMax charge
4.2V
Usable range: 1.5V
C-rate conversion: Nitecore 18350 700mAh 7A (700mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.14 A | 5h 00m |
| 0.5C | 0.35 A | 2h 00m |
| 1C | 0.7 A | 1h 00m |
| 2C | 1.4 A | 30m |
| 3C | 2.1 A | 20m |
| 5C | 3.5 A | 12m |
| 8C | 5.6 A | 7m 30s |
| 10C | 7 A | 6m |
Highlighted row is closest to the rated 7A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 350 mA | ~2h 00m |
| 1C | 700 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.8V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5.5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 8.3V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 11V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 19.3V | Ebike (24V system) |
| 10S | 36V | 42V | 27.5V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 35.8V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 38.5V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 44V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 700 mAh | 2.5 Wh | 7 A |
| 2P | 1,400 mAh | 5 Wh | 14 A |
| 3P | 2,100 mAh | 7.6 Wh | 21 A |
| 4P | 2,800 mAh | 10.1 Wh | 28 A |
| 5P | 3,500 mAh | 12.6 Wh | 35 A |
| 6P | 4,200 mAh | 15.1 Wh | 42 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Nitecore 18350 700mAh 7A (this cell) | 700 | 7A | 2.52 | 22g | 114.55 |
| Epoch 18350 | 1100 | 9A | 4 | 26g | 152 |
| AWT 18350 | 850 | 10A | 3.1 | 22.1g | 138 |
| AW 18350 | 800 | 12A | 2.9 | — | — |
| Efest IMR18350 | 700 | 10A | 2.5 | 28g | 90 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.75V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
