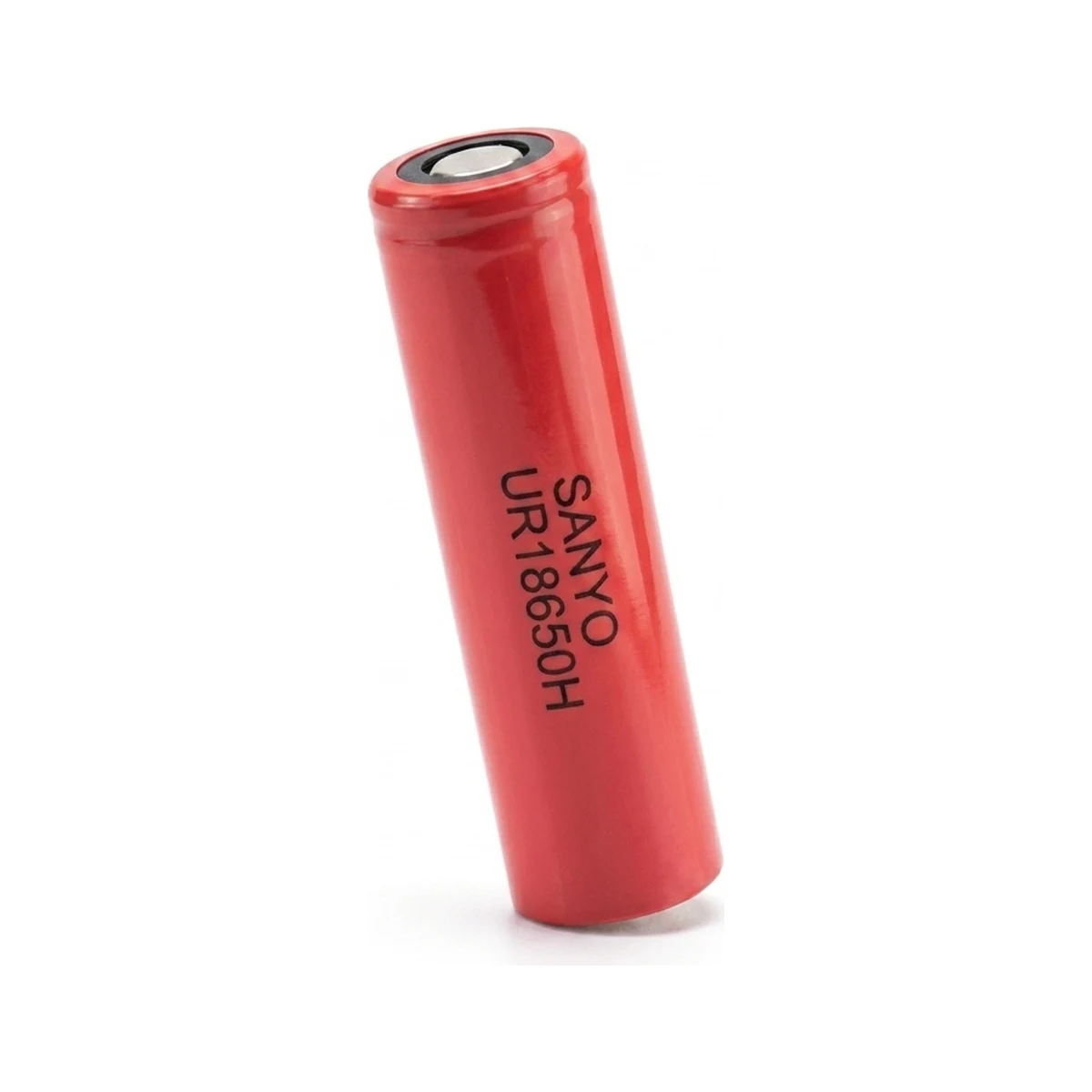

✱ RenderSanyo UR18650H
At 1900 mAh, this ranks #143 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Standard charge current | 1900 mA |
| Standard discharge current | 330mA |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.1mm × 64.8mm |
| Weight | 46 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Red |
| Insulator ring | Black |
| Performance | |
| Capacity | 1900 mAh |
| Energy | 7.03 Wh |
| Specific energy | 152.83 Wh/kg |
| Energy density | 421.63 Wh/L |
| Operating Limits | |
| Charge temp | 0°C to 40°C |
| Discharge temp | -20°C to 60°C |
At the standard 1900 mA charge rate, a full charge takes about 1 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.7VMax charge
4.2V
Usable range: 1.7V
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 950 mA | ~2h 00m |
| 1C | 1,900 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.4V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 11.1V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.8V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.9V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 37V | 42V | 25V | Ebike (36V system) |
| 13S | 48.1V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 51.8V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 59.2V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy |
|---|---|---|
| 1P | 1,900 mAh | 7 Wh |
| 2P | 3,800 mAh | 14.1 Wh |
| 3P | 5,700 mAh | 21.1 Wh |
| 4P | 7,600 mAh | 28.1 Wh |
| 5P | 9,500 mAh | 35.2 Wh |
| 6P | 11,400 mAh | 42.2 Wh |
Example pack configurations
Design a custom pack with this cell:
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Sanyo UR18650H (this cell) | 1900 | — | 7.03 | 46g | 152.83 |
| Samsung ICR18650-24A | 2400 | 4.8A | 8.9 | 47g | 189 |
| Samsung ICR18650-24B | 2400 | 4.8A | 8.9 | 47g | 189 |
| Samsung ICR18650-24E | 2400 | 4.8A | 8.9 | 47g | 189 |
| Samsung ICR18650-24F | 2400 | 5A | 8.9 | 47g | 189 |
| Sanyo UR18650FB | 2400 | 4.8A | 8.9 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
