Battery Building ToolsCell Database ICR18650-24F

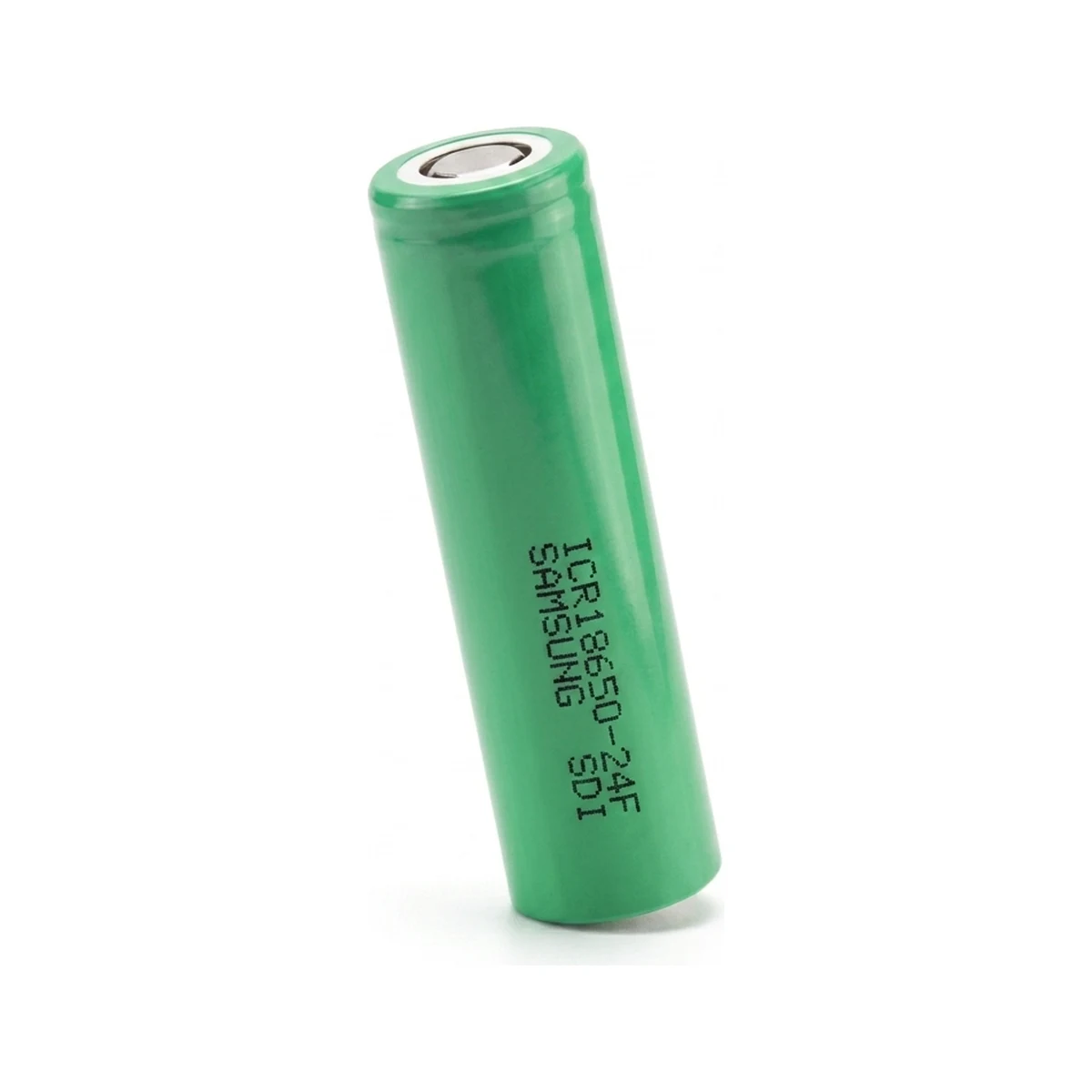

✱ Render

18.4 × 65 mm · 47 g

18650NMC

Samsung ICR18650-24F

Name: Samsung ICR18650-24F Lithium Battery Cell
Brand: Samsung

Samsung

Capacity2400 mAh8.88 Wh · 188.94 Wh/kg

Rated continuous5 A5A

Resistance9 mΩDC internal resistance

Voltage window3.7 V2.8 – 4.2 V

Standard charge1200 mA~2 h to full

Build a pack with this cell →Download spec sheet (PDF)

At 2400 mAh, this ranks #71 of 169 18650 cells in our database. Mid-range for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.7 V
Max charge voltage	4.2 V
Discharge cutoff	2.8 V
Max continuous discharge	5A
Standard charge current	1200 mA
Standard discharge current	480mA
Internal resistance	9 mΩ
Physical
Form factor	18650
Dimensions	18.4mm × 65mm
Weight	47 g
Top type	Flat Top
Protected	No
Wrap color	Green
Insulator ring	White
Performance
Capacity	2400 mAh
Energy	8.88 Wh
Specific energy	188.94 Wh/kg
Energy density	513.78 Wh/L
Power density (gravimetric)	394 W/kg
Power density (volumetric)	1,070 W/L
Operating Limits
Charge temp	0°C to 45°C
Discharge temp	-20°C to 60°C

At the standard 1200 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.8VNominal
3.7VMax charge
4.2V

Usable range: 1.4V

C-rate conversion: Samsung ICR18650-24F (2400mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.48 A	5h 00m
0.5C	1.2 A	2h 00m
1C	2.4 A	1h 00m
2C	4.8 A	30m

Highlighted row is closest to the rated 5A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,200 mA	~2h 00m
1C	2,400 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.7V	4.2V	2.8V	Flashlights, single-cell devices
2S	7.4V	8.4V	5.6V	RC vehicles, 7.2V packs
3S	11.1V	12.6V	8.4V	Power tools (10.8V nominal)
4S	14.8V	16.8V	11.2V	Ebike (small), some power tools
7S	25.9V	29.4V	19.6V	Ebike (24V system)
10S	37V	42V	28V	Ebike (36V system)
13S	48.1V	54.6V	36.4V	Ebike (48V standard)
14S	51.8V	58.8V	39.2V	Ebike (52V high-power)
16S	59.2V	67.2V	44.8V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	2,400 mAh	8.9 Wh	5 A
2P	4,800 mAh	17.8 Wh	10 A
3P	7,200 mAh	26.6 Wh	15 A
4P	9,600 mAh	35.5 Wh	20 A
5P	12,000 mAh	44.4 Wh	25 A
6P	14,400 mAh	53.3 Wh	30 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.9V nominal4,800mAh124Wh10A maxCell weight: 0.66 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells48.1V nominal9,600mAh462Wh20A maxCell weight: 2.44 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells59.2V nominal9,600mAh568Wh20A maxCell weight: 3.01 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.8V nominal14,400mAh213Wh30A maxCell weight: 1.13 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsUsable for powerwalls but lower capacity means you'll need more cells to hit your target kWh.

Ebike PacksMarginal. Check your motor's peak draw first. You might get voltage sag under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsLower capacity means shorter runtime. Better cells are available for flashlight use.

Power ToolsNot enough discharge or capacity for power tool use.

Physical dimensions

Dimensions18.4mm × 65mm

TopFlat Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Samsung ICR18650-24F (this cell)	2400	5A	8.88	47g	188.94
Panasonic NCR18650PD	2900	10A	10.7	44.5g	241
LG LGABC11865	2800	—	10.5	—	—
LG LGDC118650	2800	4.1A	10.5	47g	223
Samsung ICR18650-28A	2800	5.6A	10.5	48g	219
Samsung INR18650-29E	2900	5A	10.5	48g	219

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Samsung ICR18650-24F?

What is the maximum discharge rate of the Samsung ICR18650-24F?

How many ICR18650-24F cells do I need for a 48V ebike battery?

What does the Samsung ICR18650-24F weigh?

Can I use the ICR18650-24F for vaping?

What temperature range can the ICR18650-24F operate in?

What size is the Samsung ICR18650-24F?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.8V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
