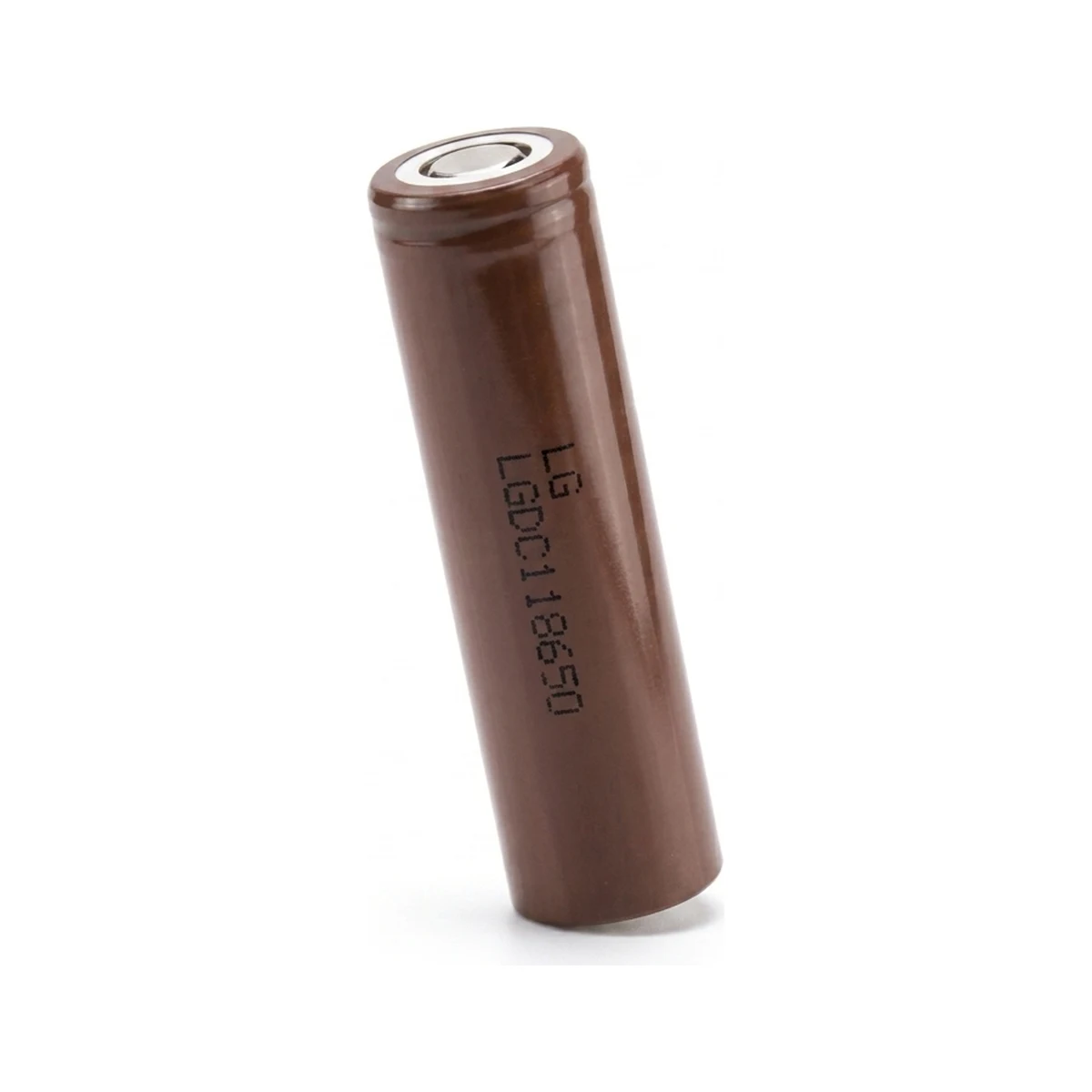

LG LGDC118650 Specifications
18650 · NMC · also sold as ICR18650C1 — full datasheet specs for the LG LGDC118650, plus what it delivers in common DIY pack configurations. Plan a build with it in the Battery Pack Calculator.
At 2800 mAh it ranks #28 of 165 18650 cells in our database by capacity — one of the higher-capacity 18650 options.
Full specifications
| Capacity | 2800 mAh |
|---|---|
| Nominal voltage | 3.75 V |
| Max charge voltage | 4.35 V |
| Discharge cutoff | 3 V |
| Energy | 10.5 Wh |
| Internal resistance | 70 mΩ |
| Standard charge current | 1350 mA |
| Standard discharge current | 540ma |
| Chemistry | NMC |
| Form factor | 18650 |
| Wrap color | Brown |
| Insulator ring | White |
At the standard 1350 mA charge rate, a full charge takes roughly 2.1 hours plus the constant-voltage taper at the end.
The LGDC118650 in a battery pack
Common DIY series configurations using this cell's real 3.75V nominal voltage, with a 3-cells-in-parallel (3P) example for capacity:
| Config | Nominal voltage | Fully charged | Cells (3P) | Capacity (3P) | Energy (3P) | |
|---|---|---|---|---|---|---|
| 3S | 11.3 V | 13 V | 9 | 8.4 Ah | 95 Wh | cell count guide |
| 7S | 26.3 V | 30.4 V | 21 | 8.4 Ah | 221 Wh | cell count guide |
| 10S | 37.5 V | 43.5 V | 30 | 8.4 Ah | 315 Wh | cell count guide |
| 13S | 48.8 V | 56.6 V | 39 | 8.4 Ah | 410 Wh | cell count guide |
| 14S | 52.5 V | 60.9 V | 42 | 8.4 Ah | 441 Wh | cell count guide |
