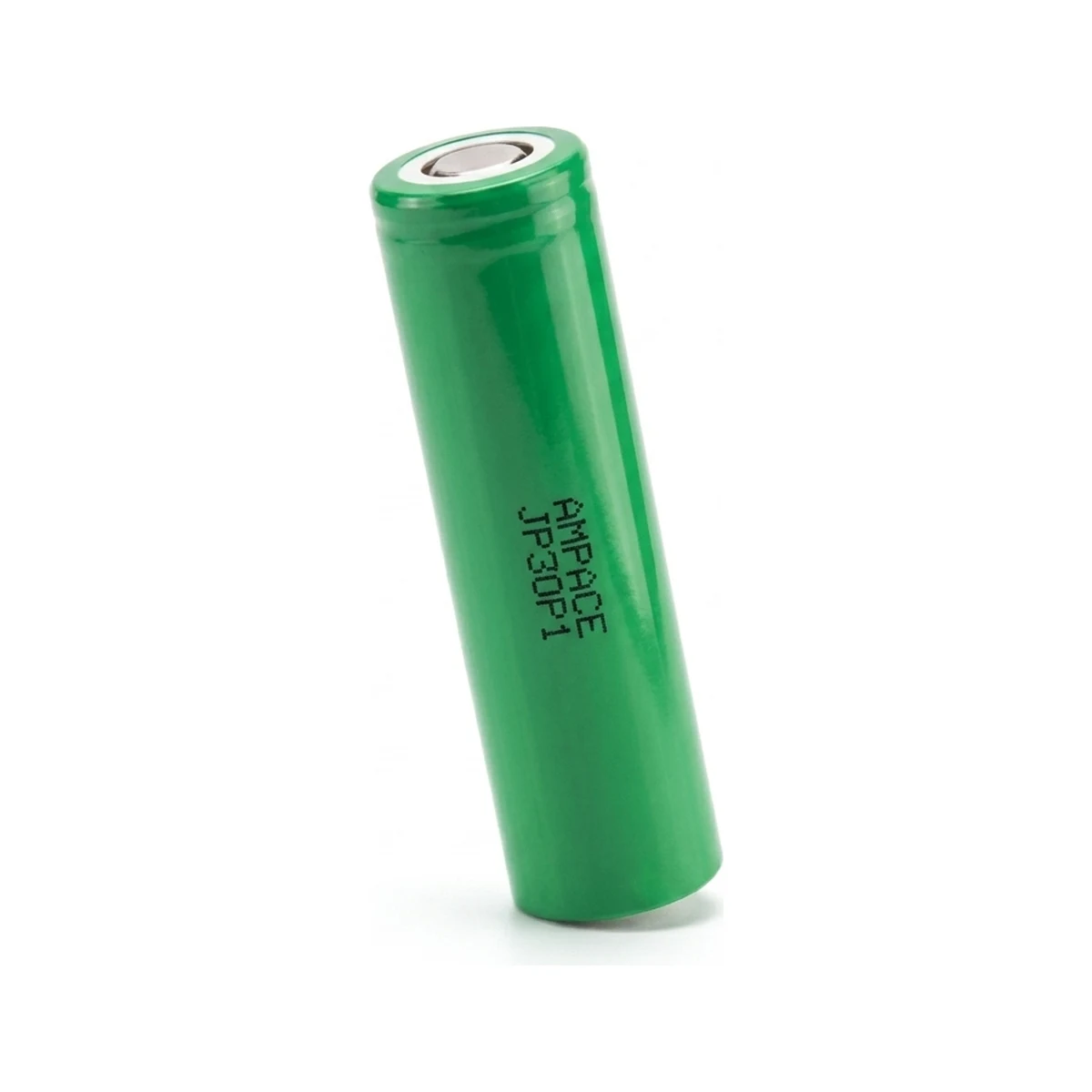

✱ RenderAmpace JP30P1
At 3000 mAh, this ranks #37 of 279 18650 cells in our database. Near the top for capacity among 18650 cells. Top tier for both capacity and discharge. One of the best all-around 18650 cells.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 36A (Mooch-tested) |
| Mooch CDR (trusted) | 36 A |
| Standard charge current | 6000 mA |
| Internal resistance | 3 mΩ |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.56mm × 65.23mm |
| Weight | 50 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Green |
| Insulator ring | White |
| Performance | |
| Capacity | 3000 mAh |
| Energy | 10.8 Wh |
| Specific energy | 216 Wh/kg |
| Energy density | 611.97 Wh/L |
| Power density (gravimetric) | 2,592 W/kg |
| Power density (volumetric) | 7,344 W/L |
| Cycle life | 600 cycles |
| Year released | 2024 |
| Operating Limits | |
| Discharge temp | -40°C to 75°C |
Independent test data: Mooch's test of the JP30P1 ↗
At the standard 6000 mA charge rate, a full charge takes about 0.5 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: Ampace JP30P1 (3000mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.6 A | 5h 00m |
| 0.5C | 1.5 A | 2h 00m |
| 1C | 3 A | 1h 00m |
| 2C | 6 A | 30m |
| 3C | 9 A | 20m |
| 5C | 15 A | 12m |
| 8C | 24 A | 7m 30s |
| 10C | 30 A | 6m |
Highlighted row is closest to the rated 36A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,500 mA | ~2h 00m |
| 1C | 3,000 mA | ~1h 00m |
| Standard | 6,000 mA | ~0h 30m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 3,000 mAh | 10.8 Wh | 36 A |
| 2P | 6,000 mAh | 21.6 Wh | 72 A |
| 3P | 9,000 mAh | 32.4 Wh | 108 A |
| 4P | 12,000 mAh | 43.2 Wh | 144 A |
| 5P | 15,000 mAh | 54 Wh | 180 A |
| 6P | 18,000 mAh | 64.8 Wh | 216 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Ampace JP30P1 (this cell) | 3000 | 36A | 10.8 | 50g | 216 |
| LG LGEBMJ11865 | 3500 | 10A | 12.7 | 49g | 260 |
| LG LGDBMJ11865 | 3500 | 10A | 12.7 | 49g | 259 |
| AWT AWT 35A 3500mAh | 3500 | 35A | 12.6 | — | — |
| Epoch PROTECTED | 3500 | 8A | 12.6 | 49.1g | 257 |
| EVE INR18650-35V | 3500 | 10A | 12.6 | 47g | 268 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
