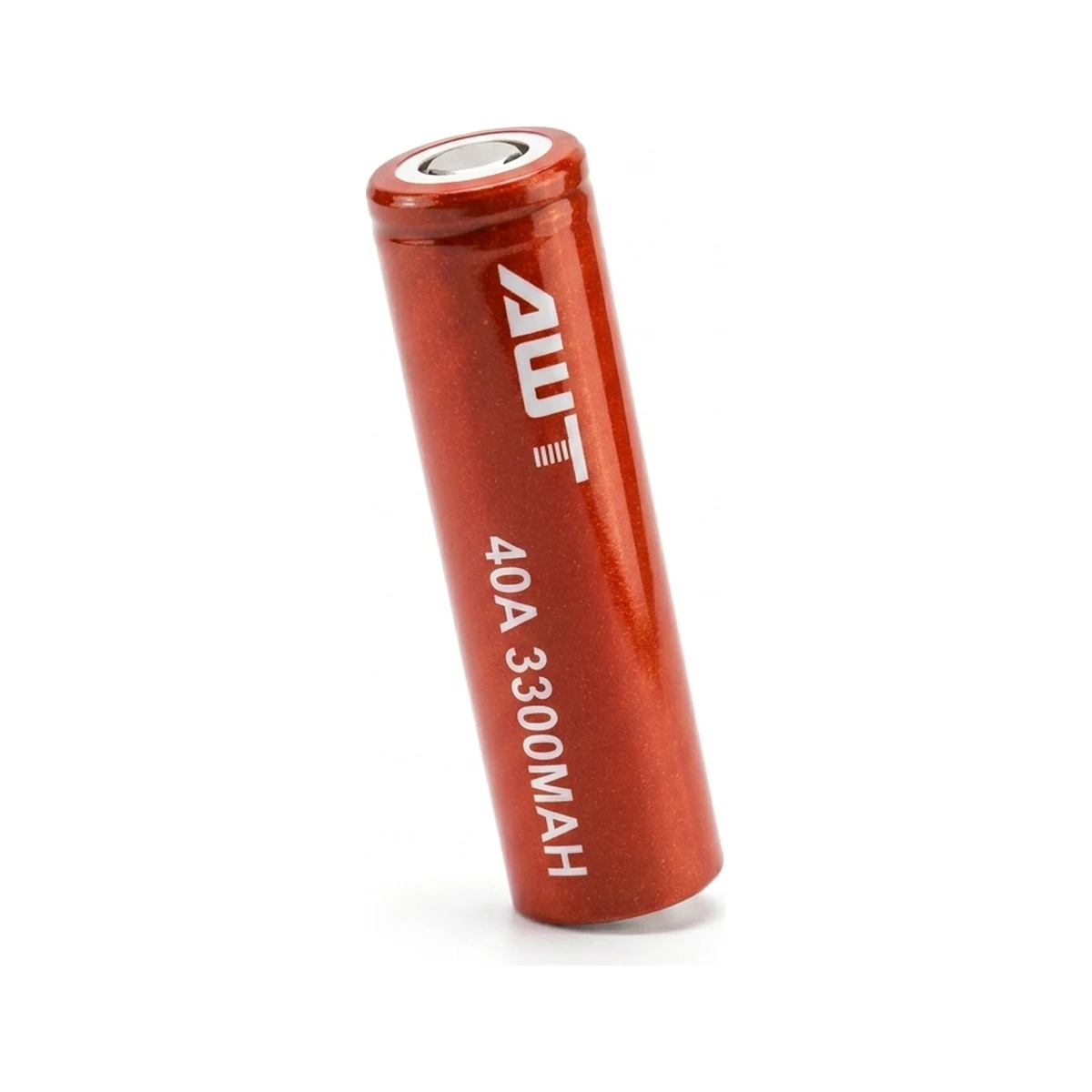

✱ RenderAWT 40A 3300mAh
At 3300 mAh, this ranks #21 of 279 18650 cells in our database. Near the top for capacity among 18650 cells. Top tier for both capacity and discharge. One of the best all-around 18650 cells.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | LMO |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.75 V |
| Max continuous discharge | 40A (Mooch-tested) |
| Mooch CDR (trusted) | 40 A |
| Internal resistance | 30.8 mΩ |
| Physical | |
| Form factor | 18650 |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Patterned |
| Performance | |
| Capacity | 3300 mAh |
| Energy | 11.88 Wh |
| Cycle life | 500 cycles |
| Year released | 2018 |
Independent test data: Mooch's test of the 40A 3300mAh ↗
Voltage operating window
2.75VNominal
3.6VMax charge
4.2V
Usable range: 1.5V
C-rate conversion: AWT 40A 3300mAh (3300mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.66 A | 5h 00m |
| 0.5C | 1.65 A | 2h 00m |
| 1C | 3.3 A | 1h 00m |
| 2C | 6.6 A | 30m |
| 3C | 9.9 A | 20m |
| 5C | 16.5 A | 12m |
| 8C | 26.4 A | 7m 30s |
| 10C | 33 A | 6m |
Highlighted row is closest to the rated 40A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,650 mA | ~2h 00m |
| 1C | 3,300 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.8V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5.5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 8.3V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 11V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 19.3V | Ebike (24V system) |
| 10S | 36V | 42V | 27.5V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 35.8V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 38.5V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 44V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 3,300 mAh | 11.9 Wh | 40 A |
| 2P | 6,600 mAh | 23.8 Wh | 80 A |
| 3P | 9,900 mAh | 35.6 Wh | 120 A |
| 4P | 13,200 mAh | 47.5 Wh | 160 A |
| 5P | 16,500 mAh | 59.4 Wh | 200 A |
| 6P | 19,800 mAh | 71.3 Wh | 240 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| AWT 40A 3300mAh (this cell) | 3300 | 40A | 11.88 | — | — |
| Efest EFEST 35A 2900mAh | 2900 | 35A | 10.4 | — | — |
| Efest 18650 2800mAh 35A | 2800 | 35A | 10.1 | 46g | 219 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.75V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
