Battery Building ToolsCell Database AWT 35A 3500mAh

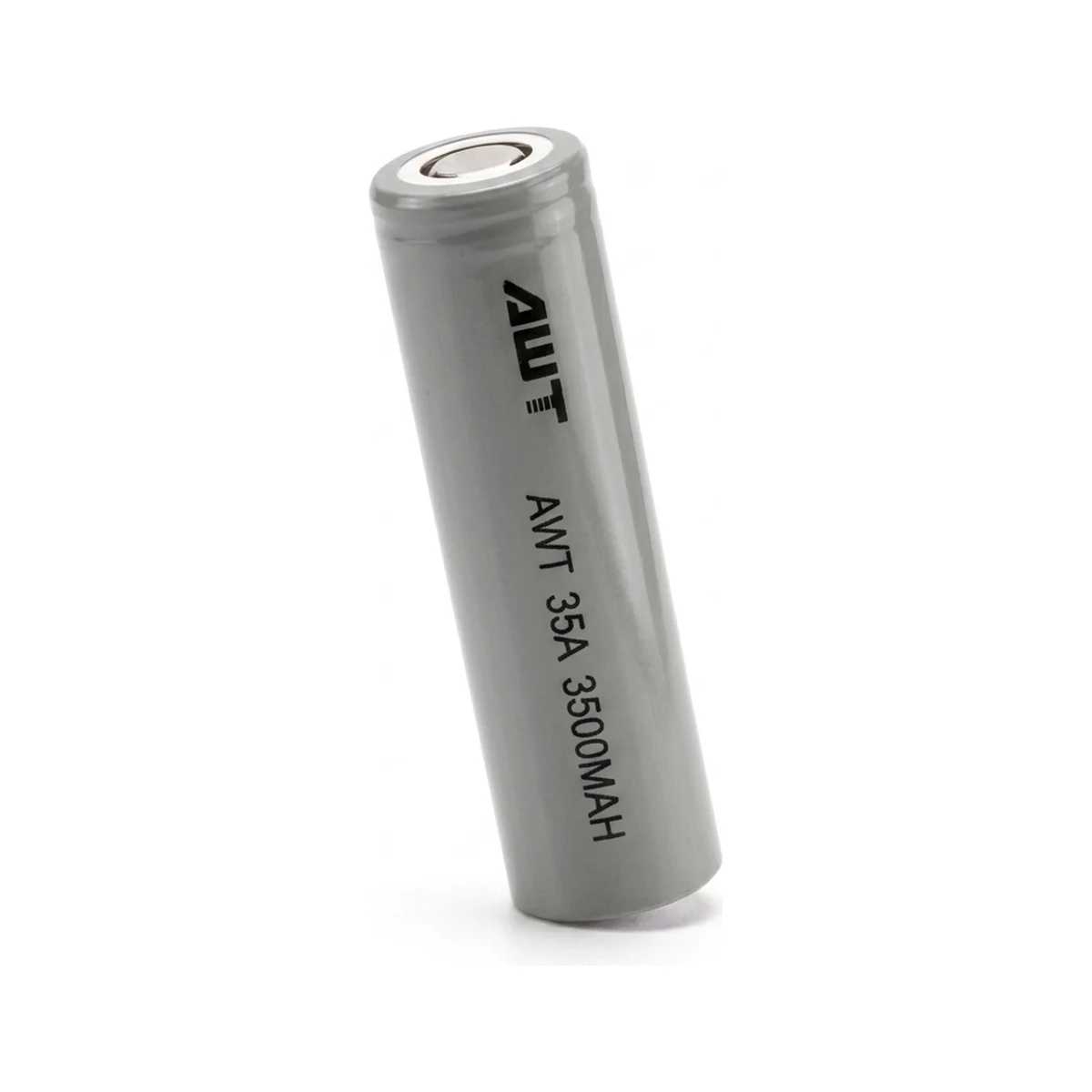

✱ Render

18.2 × 65.05 mm

18650NMC Mooch-tested · 35 A

AWT AWT 35A 3500mAh

Name: AWT AWT 35A 3500mAh Lithium Battery Cell
Brand: AWT

AWT

Capacity3500 mAh12.6 Wh

Mooch continuous35 ASize to this figure

Voltage window3.6 V2.5 – 4.2 V

Standard charge1250 mA~2.8 h to full

Build a pack with this cell →Download spec sheet (PDF)Mooch's test ↗

At 3500 mAh, this ranks #6 of 279 18650 cells in our database. Near the top for capacity among 18650 cells. Top tier for both capacity and discharge. One of the best all-around 18650 cells.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	35A (Mooch-tested)
Mooch CDR (trusted)	35 A
Standard charge current	1250 mA
Physical
Form factor	18650
Dimensions	18.2mm × 65.05mm
Top type	Flat Top
Protected	No
Performance
Capacity	3500 mAh
Energy	12.6 Wh
Energy density	744.54 Wh/L
Power density (volumetric)	7,445 W/L

Independent test data: Mooch's test of the AWT 35A 3500mAh ↗

At the standard 1250 mA charge rate, a full charge takes about 2.8 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: AWT AWT 35A 3500mAh (3500mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.7 A	5h 00m
0.5C	1.75 A	2h 00m
1C	3.5 A	1h 00m
2C	7 A	30m
3C	10.5 A	20m
5C	17.5 A	12m
8C	28 A	7m 30s
10C	35 A	6m

Highlighted row is closest to the rated 35A continuous discharge.

Charging

Rate	Current	Estimated time
Standard	1,250 mA	~2h 48m
0.5C	1,750 mA	~2h 00m
1C	3,500 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	3,500 mAh	12.6 Wh	35 A
2P	7,000 mAh	25.2 Wh	70 A
3P	10,500 mAh	37.8 Wh	105 A
4P	14,000 mAh	50.4 Wh	140 A
5P	17,500 mAh	63 Wh	175 A
6P	21,000 mAh	75.6 Wh	210 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal7,000mAh176Wh70A max

13S4P

48V ebike standard

52 cells46.8V nominal14,000mAh655Wh140A max

16S4P

DIY powerwall

64 cells57.6V nominal14,000mAh806Wh140A max

4S6P

Power tool replacement

24 cells14.4V nominal21,000mAh302Wh210A max

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksGood balance of capacity for range and discharge for hills. Works well in most ebike packs.

Car AudioEnough discharge to handle amplifier bursts without voltage sag.

High-Drain VapingAbove the 25A Mooch CDR threshold. Suitable for regulated and mechanical mods.

FlashlightsHigh capacity means long runtime. Great for everyday carry and extended use.

Power ToolsSufficient discharge and capacity for most power tool packs.

Physical dimensions

Dimensions18.2mm × 65.05mm

TopFlat Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
AWT AWT 35A 3500mAh (this cell)	3500	35A	12.6	—	—
Amprius INR18650/40	4000	12A	14.4	48g	300
Vapcell N40	4000	10A	14.4	48g	300
Vapcell F38	3800	10A	13.7	48g	285
Vapcell N36	3650	8A	13.1	48g	274
LG LGEBMJ11865	3500	10A	12.7	49g	260

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the AWT AWT 35A 3500mAh?

What is the maximum discharge rate of the AWT AWT 35A 3500mAh?

How many AWT 35A 3500mAh cells do I need for a 48V ebike battery?

Can I use the AWT 35A 3500mAh for vaping?

What size is the AWT AWT 35A 3500mAh?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
