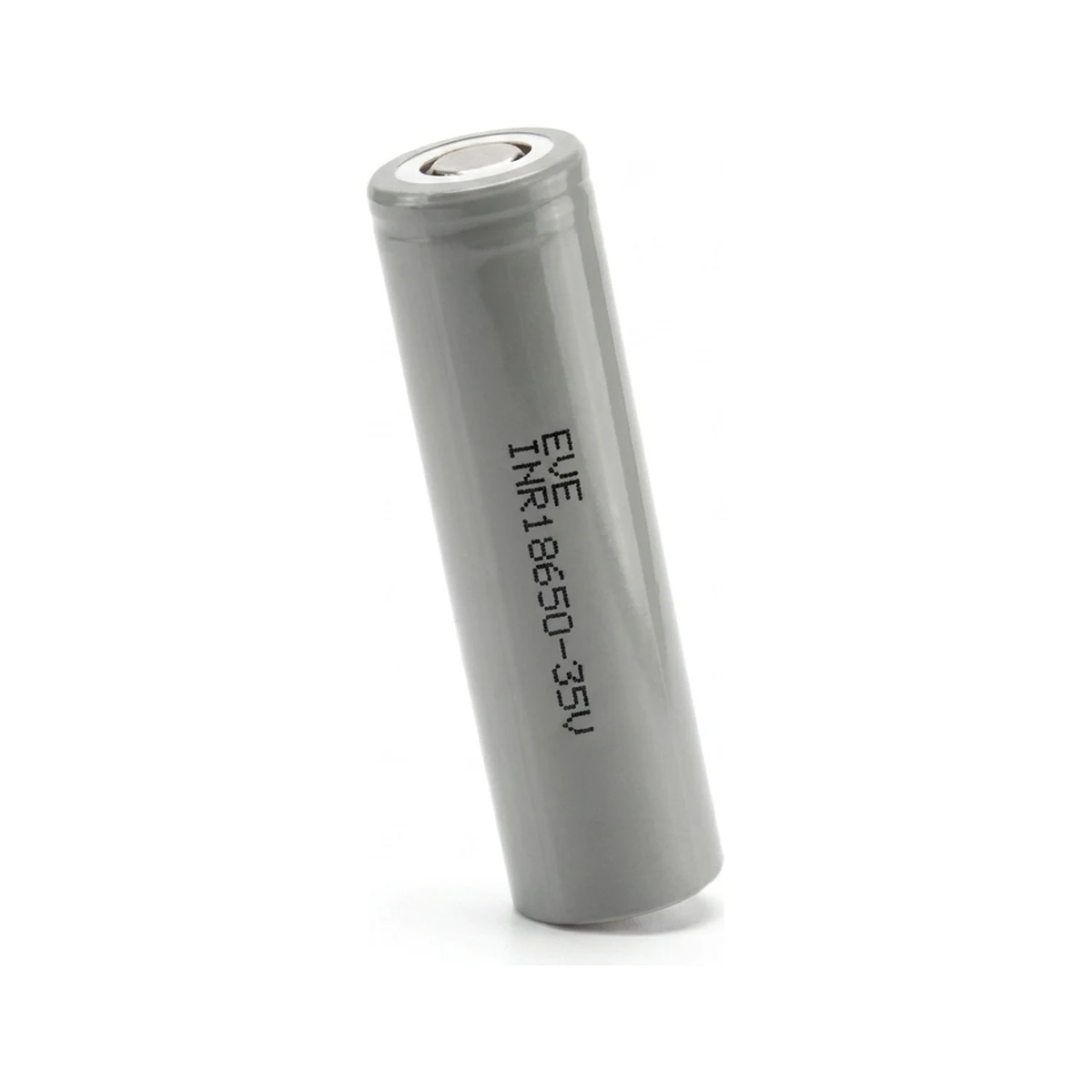

✱ RenderEVE INR18650-35V
At 3500 mAh, this ranks #6 of 279 18650 cells in our database. Near the top for capacity among 18650 cells. More capacity than 98% of 18650 cells in our database. One of the higher-capacity options.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 10A (Mooch-tested) |
| Mooch CDR (trusted) | 10 A |
| Standard charge current | 680 mA |
| Standard discharge current | 680mA |
| Internal resistance | 32 mΩ |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.35mm × 65.1mm |
| Weight | 47 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Gray |
| Performance | |
| Capacity | 3500 mAh |
| Energy | 12.6 Wh |
| Specific energy | 268.09 Wh/kg |
| Energy density | 731.86 Wh/L |
| Power density (gravimetric) | 766 W/kg |
| Power density (volumetric) | 2,091 W/L |
| Cycle life | 1000 cycles |
| Year released | 2020 |
| Operating Limits | |
| Charge temp | 15°C to 45°C |
| Discharge temp | -20°C to 60°C |
Independent test data: Mooch's test of the INR18650-35V ↗
At the standard 680 mA charge rate, a full charge takes about 5.1 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: EVE INR18650-35V (3500mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.7 A | 5h 00m |
| 0.5C | 1.75 A | 2h 00m |
| 1C | 3.5 A | 1h 00m |
| 2C | 7 A | 30m |
| 3C | 10.5 A | 20m |
Highlighted row is closest to the rated 10A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 680 mA | ~5h 09m |
| 0.5C | 1,750 mA | ~2h 00m |
| 1C | 3,500 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 3,500 mAh | 12.6 Wh | 10 A |
| 2P | 7,000 mAh | 25.2 Wh | 20 A |
| 3P | 10,500 mAh | 37.8 Wh | 30 A |
| 4P | 14,000 mAh | 50.4 Wh | 40 A |
| 5P | 17,500 mAh | 63 Wh | 50 A |
| 6P | 21,000 mAh | 75.6 Wh | 60 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| EVE INR18650-35V (this cell) | 3500 | 10A | 12.6 | 47g | 268.09 |
| Amprius INR18650/40 | 4000 | 12A | 14.4 | 48g | 300 |
| Vapcell N40 | 4000 | 10A | 14.4 | 48g | 300 |
| Vapcell F38 | 3800 | 10A | 13.7 | 48g | 285 |
| Vapcell N36 | 3650 | 8A | 13.1 | 48g | 274 |
| LG LGEBMJ11865 | 3500 | 10A | 12.7 | 49g | 260 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
