Battery Building ToolsCell Database ICR18650-26V

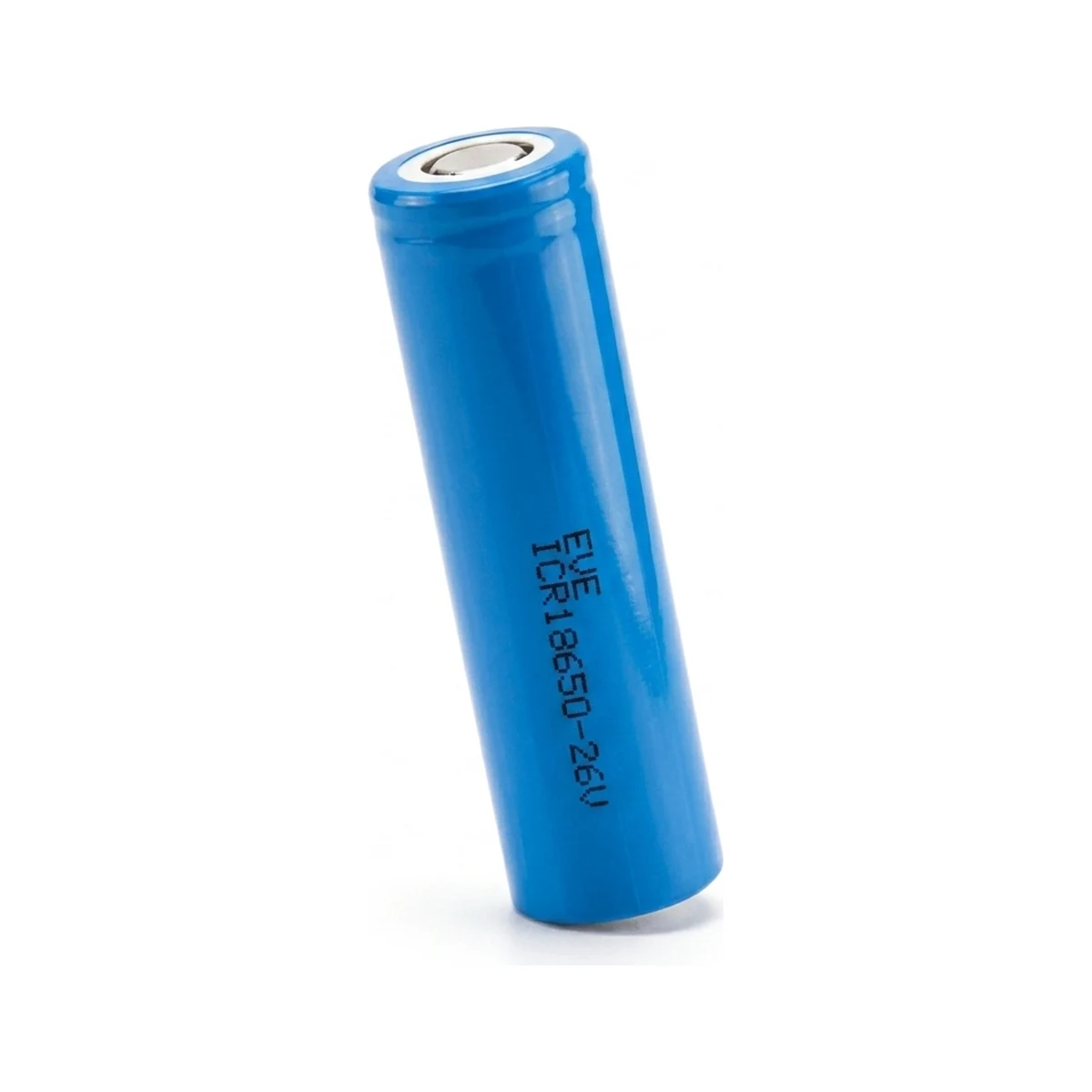

✱ Render

18650NMC Mooch-tested · 7 A

EVE ICR18650-26V

Name: EVE ICR18650-26V Lithium Battery Cell
Brand: EVE

EVE

Capacity2550 mAh9.18 Wh

Mooch continuous7 ASize to this figure

Resistance30 mΩDC internal resistance

Voltage window3.6 V2.5 – 4.2 V

Standard charge1275 mA~2 h to full

Build a pack with this cell →Download spec sheet (PDF)Mooch's test ↗

At 2550 mAh, this ranks #60 of 169 18650 cells in our database. Mid-range for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	7A (Mooch-tested)
Mooch CDR (trusted)	7 A
Standard charge current	1275 mA
Standard discharge current	1275
Internal resistance	30 mΩ
Physical
Form factor	18650
Wrap color	Blue
Insulator ring	White
Performance
Capacity	2550 mAh
Energy	9.18 Wh

Independent test data: Mooch's test of the ICR18650-26V ↗

At the standard 1275 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: EVE ICR18650-26V (2550mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.51 A	5h 00m
0.5C	1.28 A	2h 00m
1C	2.55 A	1h 00m
2C	5.1 A	30m

Highlighted row is closest to the rated 7A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,275 mA	~2h 00m
1C	2,550 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	2,550 mAh	9.2 Wh	7 A
2P	5,100 mAh	18.4 Wh	14 A
3P	7,650 mAh	27.5 Wh	21 A
4P	10,200 mAh	36.7 Wh	28 A
5P	12,750 mAh	45.9 Wh	35 A
6P	15,300 mAh	55.1 Wh	42 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal5,100mAh129Wh14A max

13S4P

48V ebike standard

52 cells46.8V nominal10,200mAh477Wh28A max

16S4P

DIY powerwall

64 cells57.6V nominal10,200mAh588Wh28A max

4S6P

Power tool replacement

24 cells14.4V nominal15,300mAh220Wh42A max

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksMarginal. Check your motor's peak draw first. You might get voltage sag under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsDecent runtime. Works well for most flashlights.

Power ToolsNot enough discharge or capacity for power tool use.

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
EVE ICR18650-26V (this cell)	2550	7A	9.18	—	—
LG LGABD11865	3000	—	11.3	—	—
LG LGDBD11865	3000	5.8A	11.3	48.5g	232
Samsung ICR18650-30B	2950	5.9A	11.2	48g	232
Samsung ICR18650-30A	3000	6A	11.1	48g	231
LG LGDBHG21865	3000	20A	10.8	47g	230

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the EVE ICR18650-26V?

What is the maximum discharge rate of the EVE ICR18650-26V?

How many ICR18650-26V cells do I need for a 48V ebike battery?

Can I use the ICR18650-26V for vaping?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
