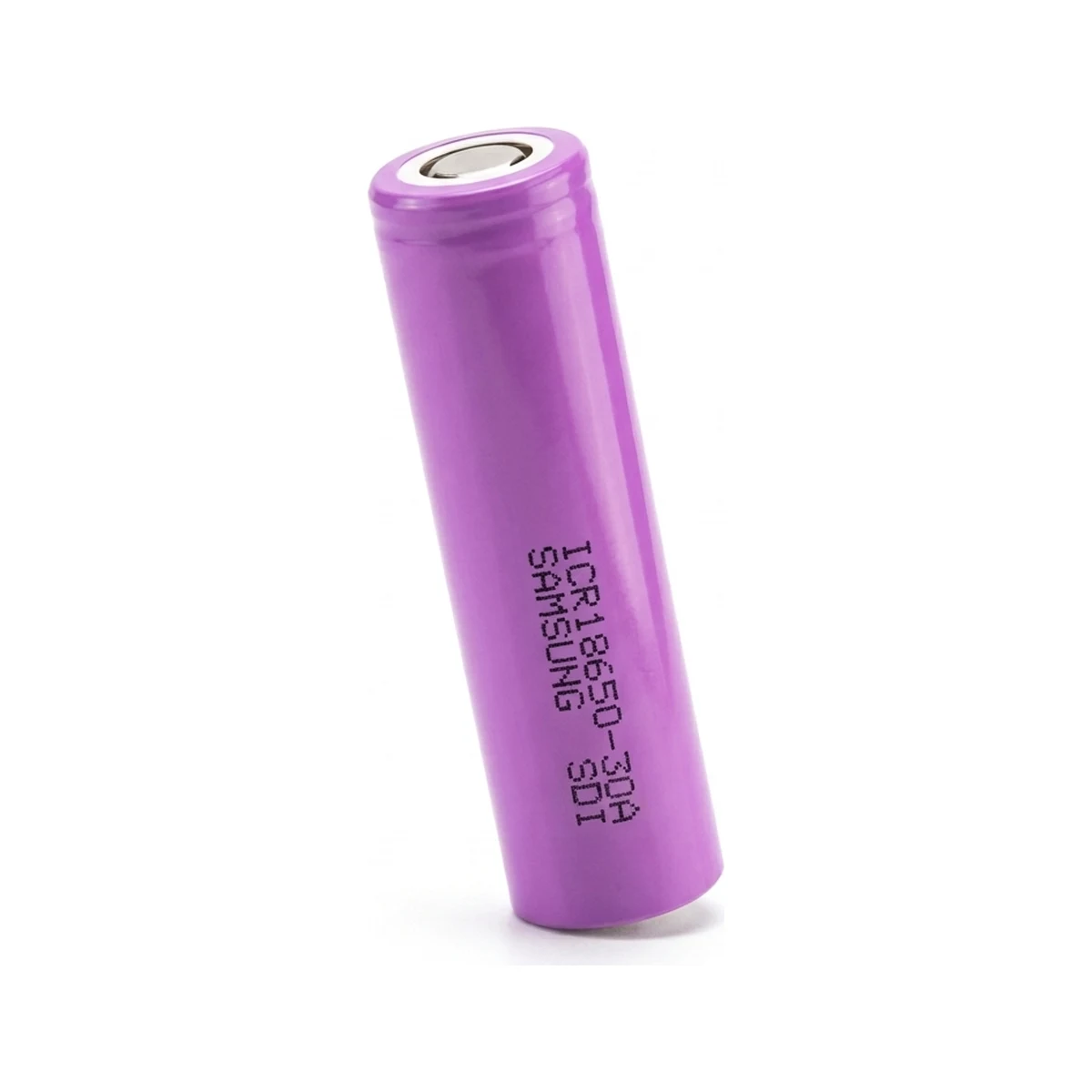

Samsung ICR18650-30A Specifications
18650 · NMC — full datasheet specs for the Samsung ICR18650-30A, plus what it delivers in common DIY pack configurations. Plan a build with it in the Battery Pack Calculator.
At 3000 mAh it ranks #15 of 165 18650 cells in our database by capacity — one of the higher-capacity 18650 options.
Full specifications
| Capacity | 3000 mAh |
|---|---|
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.3 V |
| Discharge cutoff | 2.8 V |
| Energy | 11.1 Wh |
| Internal resistance | 100 mΩ |
| Standard charge current | 1500 mA |
| Standard discharge current | 440mA |
| Chemistry | NMC |
| Form factor | 18650 |
| Wrap color | Purple (Light) |
| Insulator ring | White |
At the standard 1500 mA charge rate, a full charge takes roughly 2 hours plus the constant-voltage taper at the end.
The ICR18650-30A in a battery pack
Common DIY series configurations using this cell's real 3.7V nominal voltage, with a 3-cells-in-parallel (3P) example for capacity:
| Config | Nominal voltage | Fully charged | Cells (3P) | Capacity (3P) | Energy (3P) | |
|---|---|---|---|---|---|---|
| 3S | 11.1 V | 12.9 V | 9 | 9 Ah | 100 Wh | cell count guide |
| 7S | 25.9 V | 30.1 V | 21 | 9 Ah | 233 Wh | cell count guide |
| 10S | 37 V | 43 V | 30 | 9 Ah | 333 Wh | cell count guide |
| 13S | 48.1 V | 55.9 V | 39 | 9 Ah | 433 Wh | cell count guide |
| 14S | 51.8 V | 60.2 V | 42 | 9 Ah | 466 Wh | cell count guide |
Size a full pack around the ICR18650-30A — voltage, capacity, runtime, and BMS:
