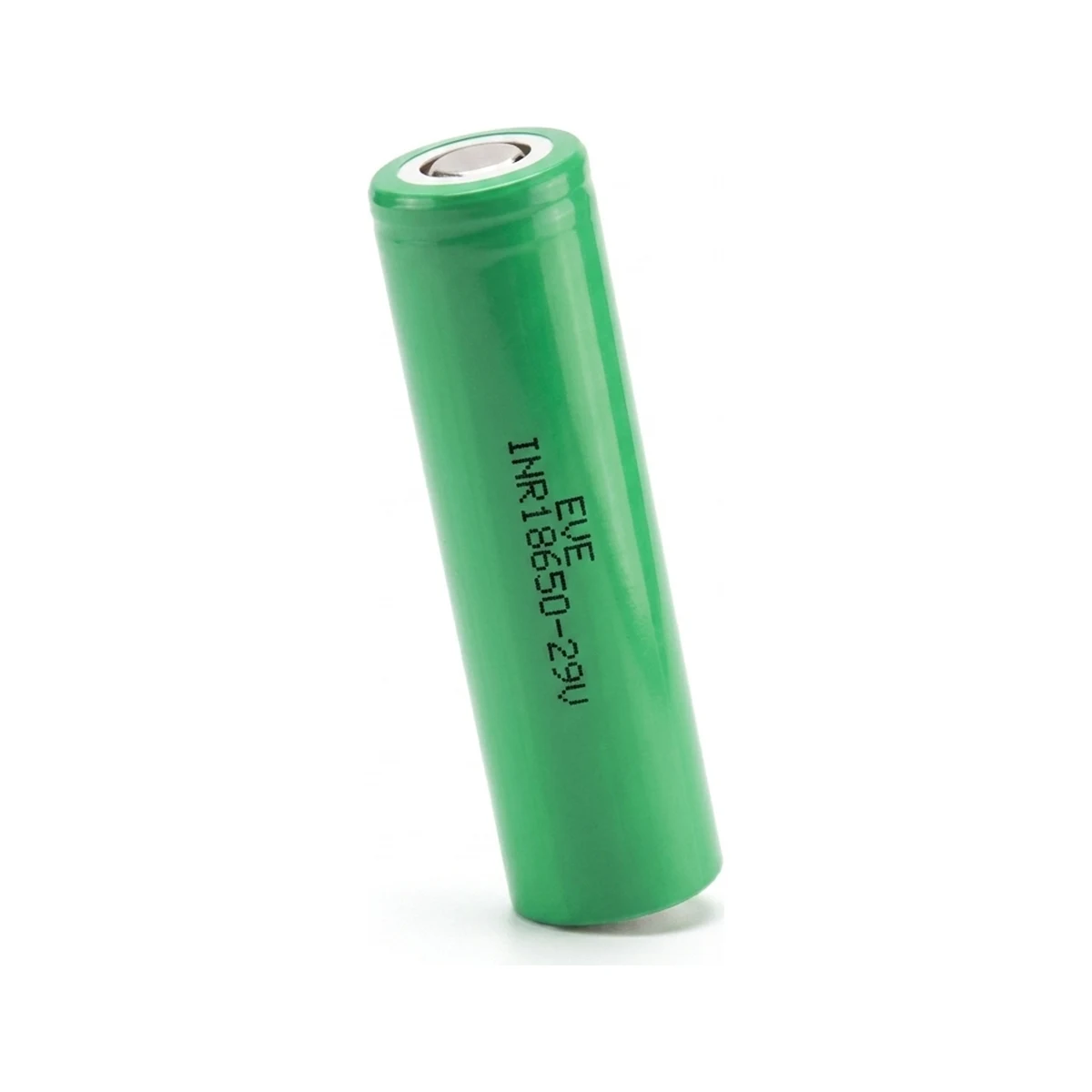

✱ RenderEVE INR18650-29V
At 2850 mAh, this ranks #75 of 279 18650 cells in our database. Mid-range for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 8A (Mooch-tested) |
| Mooch CDR (trusted) | 8 A |
| Standard charge current | 560 mA |
| Standard discharge current | 560mA |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.3mm × 65mm |
| Weight | 44.5 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Green |
| Performance | |
| Capacity | 2850 mAh |
| Energy | 10.26 Wh |
| Specific energy | 230.56 Wh/kg |
| Energy density | 600.13 Wh/L |
| Power density (gravimetric) | 647 W/kg |
| Power density (volumetric) | 1,685 W/L |
| Year released | 2018 |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
Independent test data: Mooch's test of the INR18650-29V ↗
At the standard 560 mA charge rate, a full charge takes about 5.1 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: EVE INR18650-29V (2850mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.57 A | 5h 00m |
| 0.5C | 1.43 A | 2h 00m |
| 1C | 2.85 A | 1h 00m |
| 2C | 5.7 A | 30m |
Highlighted row is closest to the rated 8A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 560 mA | ~5h 05m |
| 0.5C | 1,425 mA | ~2h 00m |
| 1C | 2,850 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,850 mAh | 10.3 Wh | 8 A |
| 2P | 5,700 mAh | 20.5 Wh | 16 A |
| 3P | 8,550 mAh | 30.8 Wh | 24 A |
| 4P | 11,400 mAh | 41 Wh | 32 A |
| 5P | 14,250 mAh | 51.3 Wh | 40 A |
| 6P | 17,100 mAh | 61.6 Wh | 48 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| EVE INR18650-29V (this cell) | 2850 | 8A | 10.26 | 44.5g | 230.56 |
| LG LGABF1L1865 | 3350 | 4.9A | 12.2 | 49g | 248 |
| LG LGGBF1L1865 | 3350 | 4.9A | 12.2 | 49g | 248 |
| Panasonic NCR18650B | 3350 | 4A | 12.1 | 47.5g | 254 |
| Samsung INR18650-35E3 | 3350 | 8A | 12.1 | 50g | 241 |
| Samsung INR18650-35E5 | 3350 | 8A | 12.1 | 48g | 251 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
