Battery Building ToolsCell Database LGDBD11865

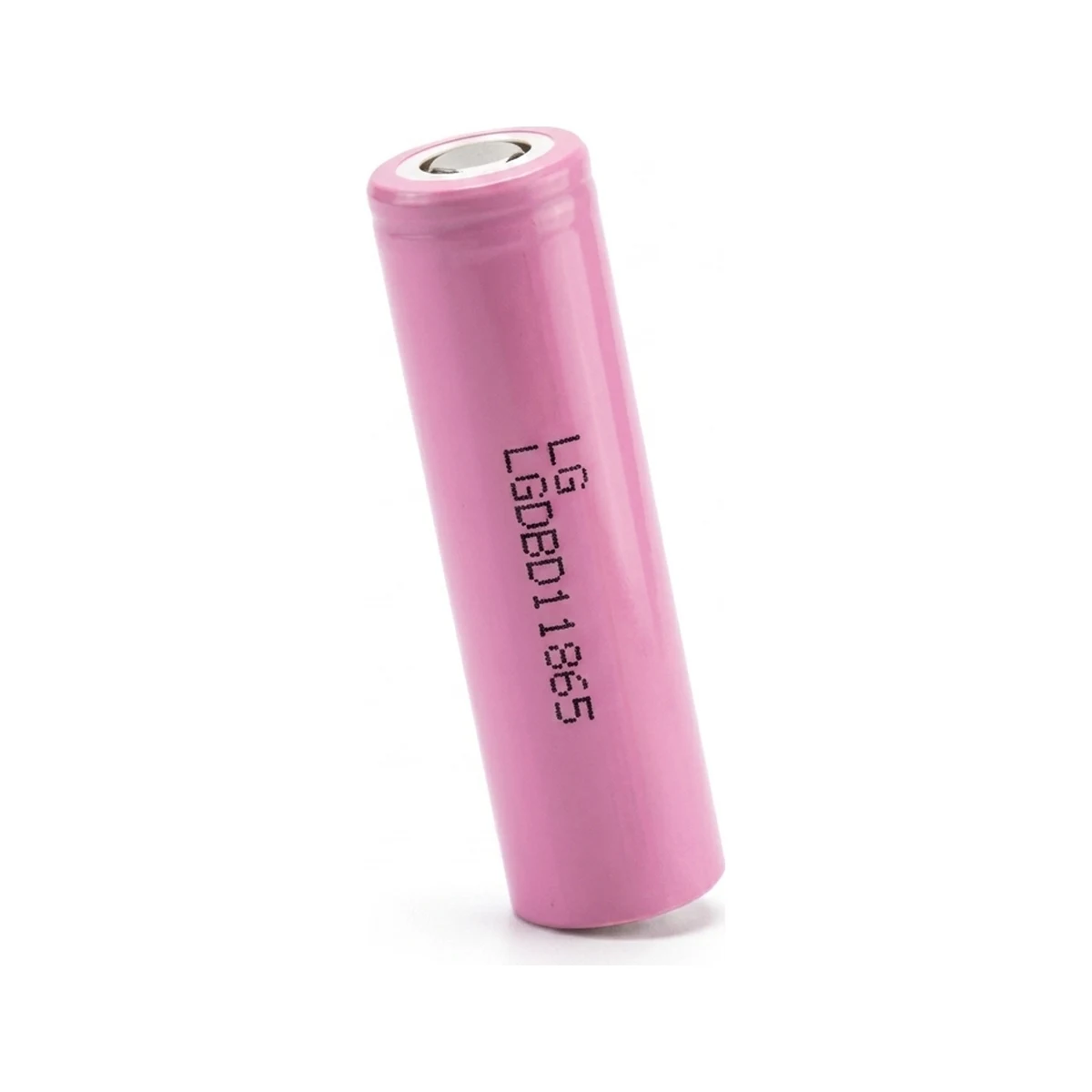

✱ Render

18.29 × 65.05 mm · 48.5 g

18650NMC

LG LGDBD11865

Q: What is the capacity of the LG LGDBD11865?

The LG LGDBD11865 has a rated capacity of 3,000mAh (11.25Wh at 3.75V nominal).

Q: What is the maximum discharge rate of the LG LGDBD11865?

The manufacturer rates the LGDBD11865 at 5.8A continuous discharge.

Q: How many LGDBD11865 cells do I need for a 48V ebike battery?

A 48V ebike pack uses a 13S configuration. With the LGDBD11865's 3.75V nominal, 13S gives you 48.8V nominal. A 13S4P pack (52 cells) delivers 12,000mAh (585Wh). That covers most 48V ebike applications.

Q: What does the LG LGDBD11865 weigh?

The LGDBD11865 weighs 48.5g with a specific energy of 231.96Wh/kg.

Q: Can I use the LGDBD11865 for vaping?

Not recommended. The LGDBD11865 is below the 25A Mooch CDR threshold that high-drain vaping requires. A cell with a higher CDR is the safer choice.

Q: What temperature range can the LGDBD11865 operate in?

Charge: 0°C to 45°C. Discharge: -20°C to 60°C.

Q: What size is the LG LGDBD11865?

The LGDBD11865 measures 18.29mm × 65.05mm and weighs 48.5g. It is a Flat Top 18650 cell.

LG · also sold as ICR18650D1 · released 2011

Capacity3000 mAh11.25 Wh · 231.96 Wh/kg

Rated continuous5.8 A5.8A

Resistance70 mΩDC internal resistance

Voltage window3.75 V3 – 4.35 V

Standard charge1450 mA~2.1 h to full

Build a pack with this cell →Download spec sheet (PDF)Open the datasheet

At 3000 mAh, this ranks #37 of 279 18650 cells in our database. Near the top for capacity among 18650 cells. More capacity than 87% of 18650 cells in our database, but lower discharge than average.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.75 V
Max charge voltage	4.35 V
Discharge cutoff	3 V
Max continuous discharge	5.8A
Standard charge current	1450 mA
Standard discharge current	580mA
Internal resistance	70 mΩ
Physical
Form factor	18650
Dimensions	18.29mm × 65.05mm
Weight	48.5 g
Top type	Flat Top
Protected	No
Wrap color	Pink
Insulator ring	White
Performance
Capacity	3000 mAh
Energy	11.25 Wh
Specific energy	231.96 Wh/kg
Energy density	658.25 Wh/L
Power density (gravimetric)	448 W/kg
Power density (volumetric)	1,273 W/L
Year released	2011
Operating Limits
Charge temp	0°C to 45°C
Discharge temp	-20°C to 60°C

At the standard 1450 mA charge rate, a full charge takes about 2.1 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
3VNominal
3.75VMax charge
4.35V

Usable range: 1.3V

C-rate conversion: LG LGDBD11865 (3000mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.6 A	5h 00m
0.5C	1.5 A	2h 00m
1C	3 A	1h 00m
2C	6 A	30m

Highlighted row is closest to the rated 5.8A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,500 mA	~2h 00m
1C	3,000 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Datasheet

Download official LG LGDBD11865 datasheet (PDF) ↗

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.8V	4.4V	3V	Flashlights, single-cell devices
2S	7.5V	8.7V	6V	RC vehicles, 7.2V packs
3S	11.3V	13V	9V	Power tools (10.8V nominal)
4S	15V	17.4V	12V	Ebike (small), some power tools
7S	26.3V	30.4V	21V	Ebike (24V system)
10S	37.5V	43.5V	30V	Ebike (36V system)
13S	48.8V	56.6V	39V	Ebike (48V standard)
14S	52.5V	60.9V	42V	Ebike (52V high-power)
16S	60V	69.6V	48V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	3,000 mAh	11.3 Wh	5.8 A
2P	6,000 mAh	22.5 Wh	11.6 A
3P	9,000 mAh	33.8 Wh	17.4 A
4P	12,000 mAh	45 Wh	23.2 A
5P	15,000 mAh	56.3 Wh	29 A
6P	18,000 mAh	67.5 Wh	34.8 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells26.3V nominal6,000mAh158Wh12A maxCell weight: 0.68 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells48.8V nominal12,000mAh585Wh23A maxCell weight: 2.52 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells60V nominal12,000mAh720Wh23A maxCell weight: 3.1 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells15V nominal18,000mAh270Wh35A maxCell weight: 1.16 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksMarginal. Check your motor's peak draw first. You might get voltage sag under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsHigh capacity means long runtime. Great for everyday carry and extended use.

Power ToolsNot enough discharge or capacity for power tool use.

Physical dimensions

Dimensions18.29mm × 65.05mm

TopFlat Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
LG LGDBD11865 (this cell)	3000	5.8A	11.25	48.5g	231.96
LG LGEBMJ11865	3500	10A	12.7	49g	260
LG LGDBMJ11865	3500	10A	12.7	49g	259
AWT AWT 35A 3500mAh	3500	35A	12.6	50g	252
Epoch PROTECTED	3500	8A	12.6	49.1g	257
EVE INR18650-35V	3500	10A	12.6	47g	268

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance Essential ToolsSpot welders, testers, nickel strip and other supplies for your build Build GuideStep-by-step 18650 pack build from salvaging to final assembly

Frequently asked questions

What is the capacity of the LG LGDBD11865?

What is the maximum discharge rate of the LG LGDBD11865?

How many LGDBD11865 cells do I need for a 48V ebike battery?

What does the LG LGDBD11865 weigh?

Can I use the LGDBD11865 for vaping?

What temperature range can the LGDBD11865 operate in?

What size is the LG LGDBD11865?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.35V or discharge below 3V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
