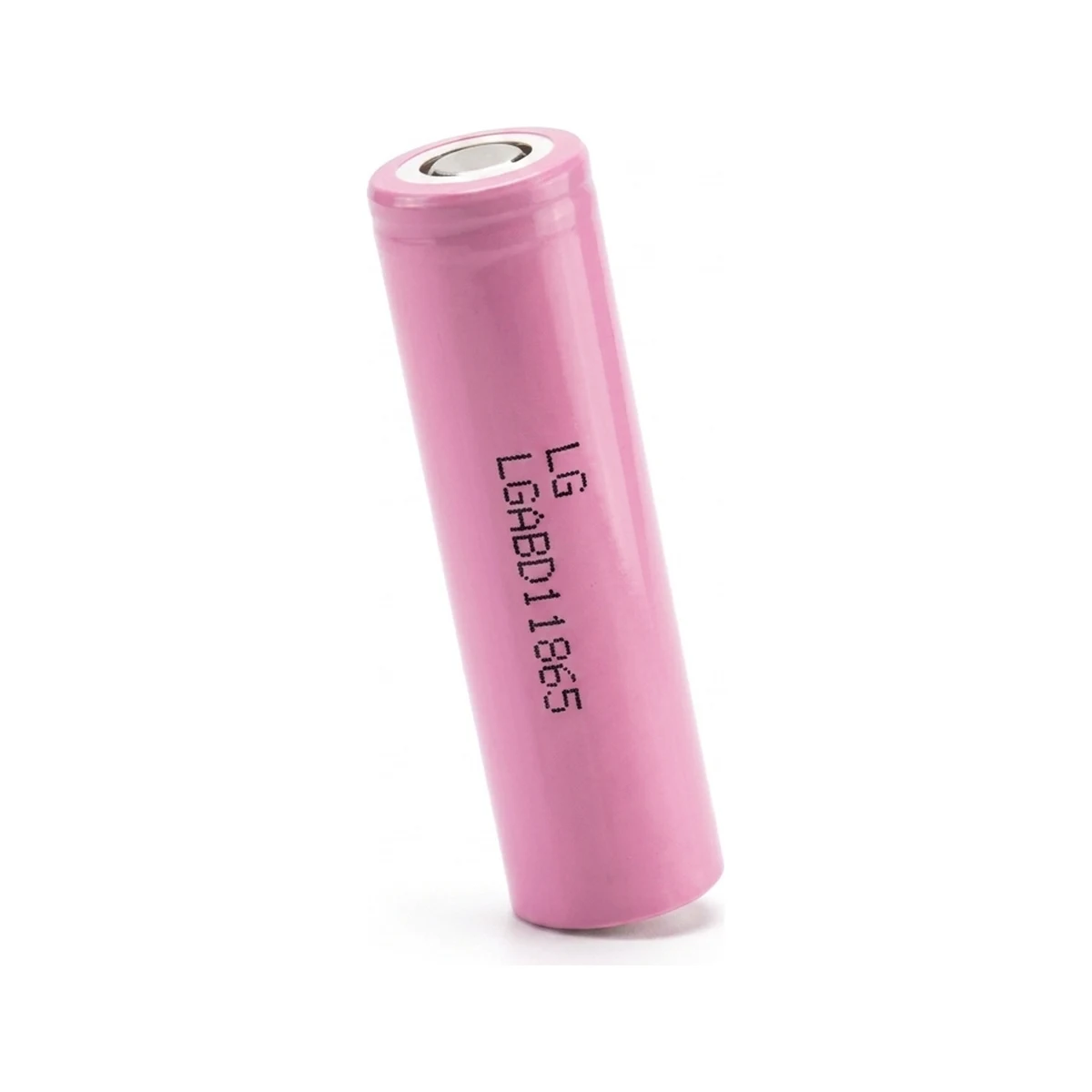

✱ RenderLG LGABD11865
At 3000 mAh, this ranks #15 of 169 18650 cells in our database. Near the top for capacity among 18650 cells. More capacity than 92% of 18650 cells in our database. One of the higher-capacity options.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.75 V |
| Max charge voltage | 4.35 V |
| Discharge cutoff | 3 V |
| Standard charge current | 1450 mA |
| Standard discharge current | 580mA |
| Internal resistance | 40 mΩ |
| Physical | |
| Form factor | 18650 |
| Wrap color | Pink |
| Insulator ring | White |
| Performance | |
| Capacity | 3000 mAh |
| Energy | 11.25 Wh |
At the standard 1450 mA charge rate, a full charge takes about 2.1 hours. The last bit is a slow taper to top it off.
Voltage operating window
3VNominal
3.75VMax charge
4.35V
Usable range: 1.3V
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,500 mA | ~2h 00m |
| 1C | 3,000 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.8V | 4.4V | 3V | Flashlights, single-cell devices |
| 2S | 7.5V | 8.7V | 6V | RC vehicles, 7.2V packs |
| 3S | 11.3V | 13V | 9V | Power tools (10.8V nominal) |
| 4S | 15V | 17.4V | 12V | Ebike (small), some power tools |
| 7S | 26.3V | 30.4V | 21V | Ebike (24V system) |
| 10S | 37.5V | 43.5V | 30V | Ebike (36V system) |
| 13S | 48.8V | 56.6V | 39V | Ebike (48V standard) |
| 14S | 52.5V | 60.9V | 42V | Ebike (52V high-power) |
| 16S | 60V | 69.6V | 48V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy |
|---|---|---|
| 1P | 3,000 mAh | 11.3 Wh |
| 2P | 6,000 mAh | 22.5 Wh |
| 3P | 9,000 mAh | 33.8 Wh |
| 4P | 12,000 mAh | 45 Wh |
| 5P | 15,000 mAh | 56.3 Wh |
| 6P | 18,000 mAh | 67.5 Wh |
Example pack configurations
Design a custom pack with this cell:
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| LG LGABD11865 (this cell) | 3000 | — | 11.25 | — | — |
| LG LGEBMJ11865 | 3500 | 10A | 12.7 | — | — |
| LG LGDBMJ11865 | 3500 | 10A | 12.7 | 49g | 259 |
| LG LGABF1L1865 | 3350 | 4.9A | 12.2 | 49g | 248 |
| LG LGGBF1L1865 | 3350 | 4.9A | 12.2 | — | — |
| Panasonic NCR18650B | 3350 | 4A | 12.1 | 47.5g | 254 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.35V or discharge below 3V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
