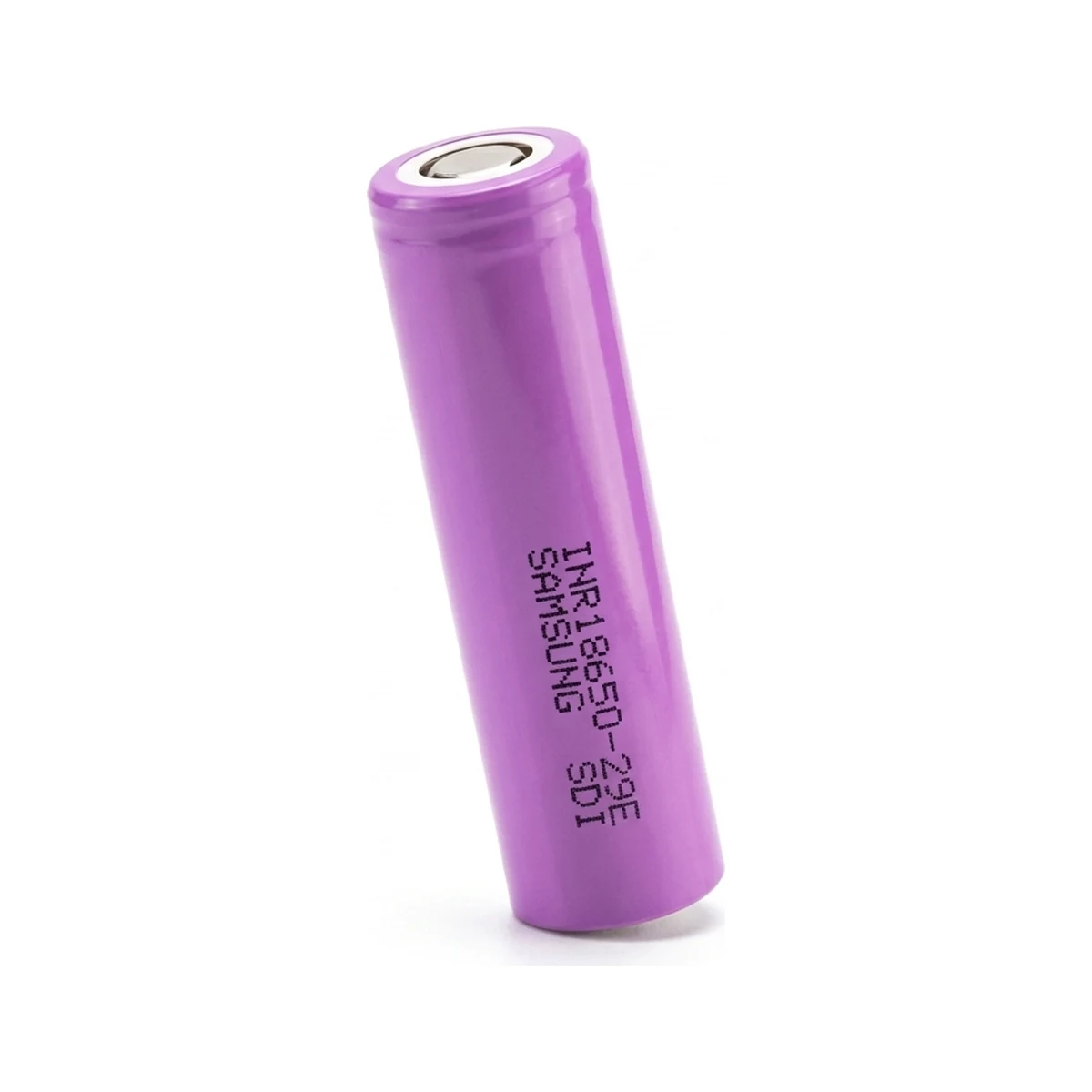

✱ RenderSamsung INR18650-29E
At 2900 mAh, this ranks #25 of 169 18650 cells in our database. Near the top for capacity among 18650 cells. More capacity than 86% of 18650 cells in our database, but lower discharge than average.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.62 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 5A (Mooch-tested) |
| Mooch CDR (trusted) | 5 A |
| Standard charge current | 1375 mA |
| Standard discharge current | 550mA |
| Internal resistance | 35 mΩ |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.4mm × 65mm |
| Weight | 48 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Purple (Light) |
| Insulator ring | White |
| Performance | |
| Capacity | 2900 mAh |
| Energy | 10.5 Wh |
| Specific energy | 218.75 Wh/kg |
| Energy density | 607.51 Wh/L |
| Power density (gravimetric) | 377 W/kg |
| Power density (volumetric) | 1,047 W/L |
| Cycle life | 500 cycles |
| Year released | 2012 |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
Independent test data: Mooch's test of the INR18650-29E ↗
At the standard 1375 mA charge rate, a full charge takes about 2.1 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.62VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: Samsung INR18650-29E (2900mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.58 A | 5h 00m |
| 0.5C | 1.45 A | 2h 00m |
| 1C | 2.9 A | 1h 00m |
Highlighted row is closest to the rated 5A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 1,375 mA | ~2h 07m |
| 0.5C | 1,450 mA | ~2h 00m |
| 1C | 2,900 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.9V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.5V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.3V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36.2V | 42V | 25V | Ebike (36V system) |
| 13S | 47.1V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.7V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.9V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,900 mAh | 10.5 Wh | 5 A |
| 2P | 5,800 mAh | 21 Wh | 10 A |
| 3P | 8,700 mAh | 31.5 Wh | 15 A |
| 4P | 11,600 mAh | 42 Wh | 20 A |
| 5P | 14,500 mAh | 52.5 Wh | 25 A |
| 6P | 17,400 mAh | 63 Wh | 30 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Samsung INR18650-29E (this cell) | 2900 | 5A | 10.5 | 48g | 218.75 |
| LG LGABF1L1865 | 3350 | 4.9A | 12.2 | 49g | 248 |
| LG LGGBF1L1865 | 3350 | 4.9A | 12.2 | — | — |
| Panasonic NCR18650B | 3350 | 4A | 12.1 | 47.5g | 254 |
| LG LGABE11865 | 3200 | 9A | 12 | 49g | 245 |
| LG LGEBE11865 | 3200 | 4.9A | 12 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
