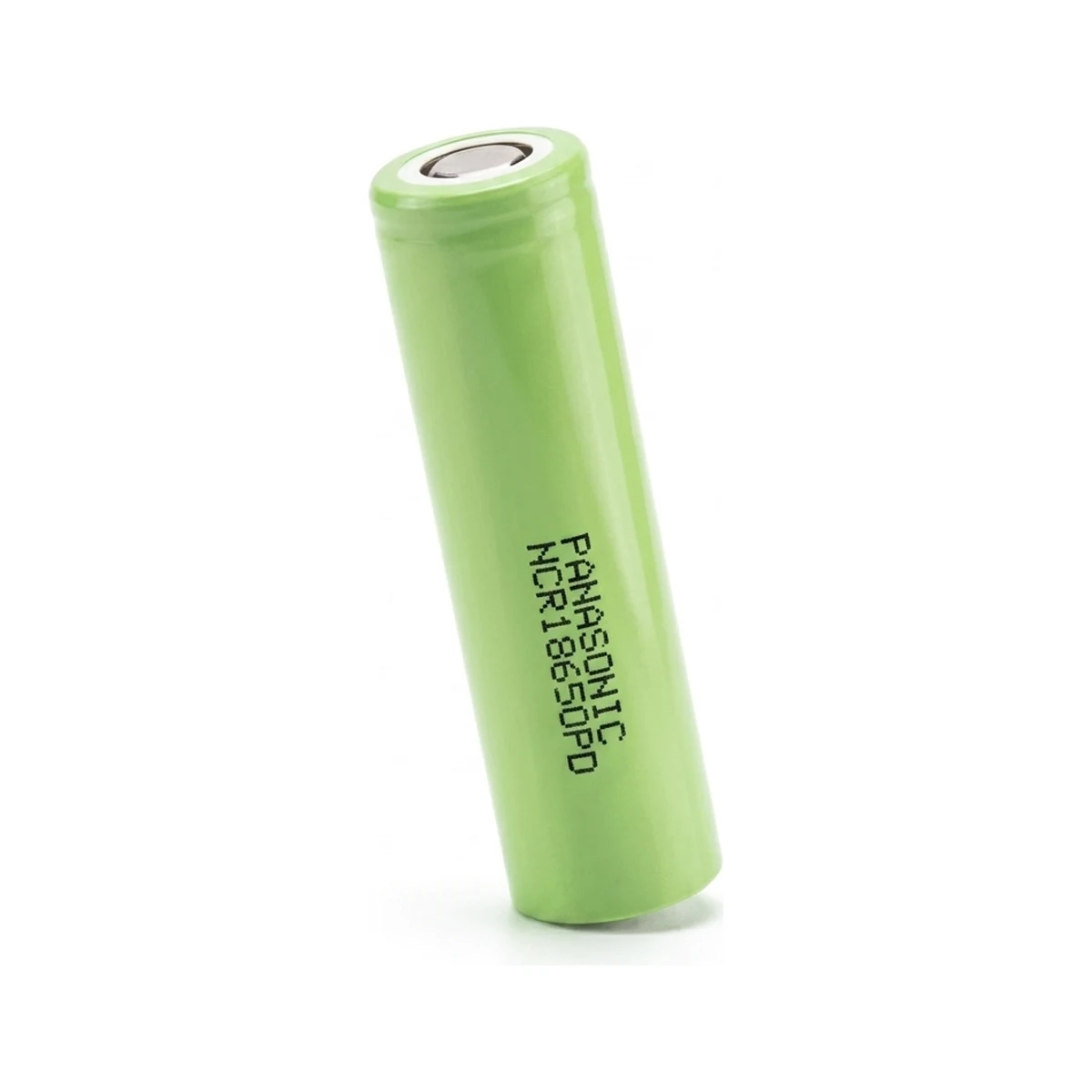

Panasonic NCR18650PD Specifications
18650 · NMC — full datasheet specs for the Panasonic NCR18650PD, plus what it delivers in common DIY pack configurations. Plan a build with it in the Battery Pack Calculator.
At 2900 mAh it ranks #25 of 165 18650 cells in our database by capacity — one of the higher-capacity 18650 options.
Full specifications
| Capacity | 2900 mAh |
|---|---|
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Energy | 10.73 Wh |
| Standard charge current | 825 mA |
| Standard discharge current | 550mA |
| Chemistry | NMC |
| Form factor | 18650 |
| Wrap color | Green (Light) |
| Insulator ring | White |
At the standard 825 mA charge rate, a full charge takes roughly 3.5 hours plus the constant-voltage taper at the end.
The NCR18650PD in a battery pack
Common DIY series configurations using this cell's real 3.7V nominal voltage, with a 3-cells-in-parallel (3P) example for capacity:
| Config | Nominal voltage | Fully charged | Cells (3P) | Capacity (3P) | Energy (3P) | |
|---|---|---|---|---|---|---|
| 3S | 11.1 V | 12.6 V | 9 | 8.7 Ah | 97 Wh | cell count guide |
| 7S | 25.9 V | 29.4 V | 21 | 8.7 Ah | 225 Wh | cell count guide |
| 10S | 37 V | 42 V | 30 | 8.7 Ah | 322 Wh | cell count guide |
| 13S | 48.1 V | 54.6 V | 39 | 8.7 Ah | 418 Wh | cell count guide |
| 14S | 51.8 V | 58.8 V | 42 | 8.7 Ah | 451 Wh | cell count guide |
Size a full pack around the NCR18650PD — voltage, capacity, runtime, and BMS:
