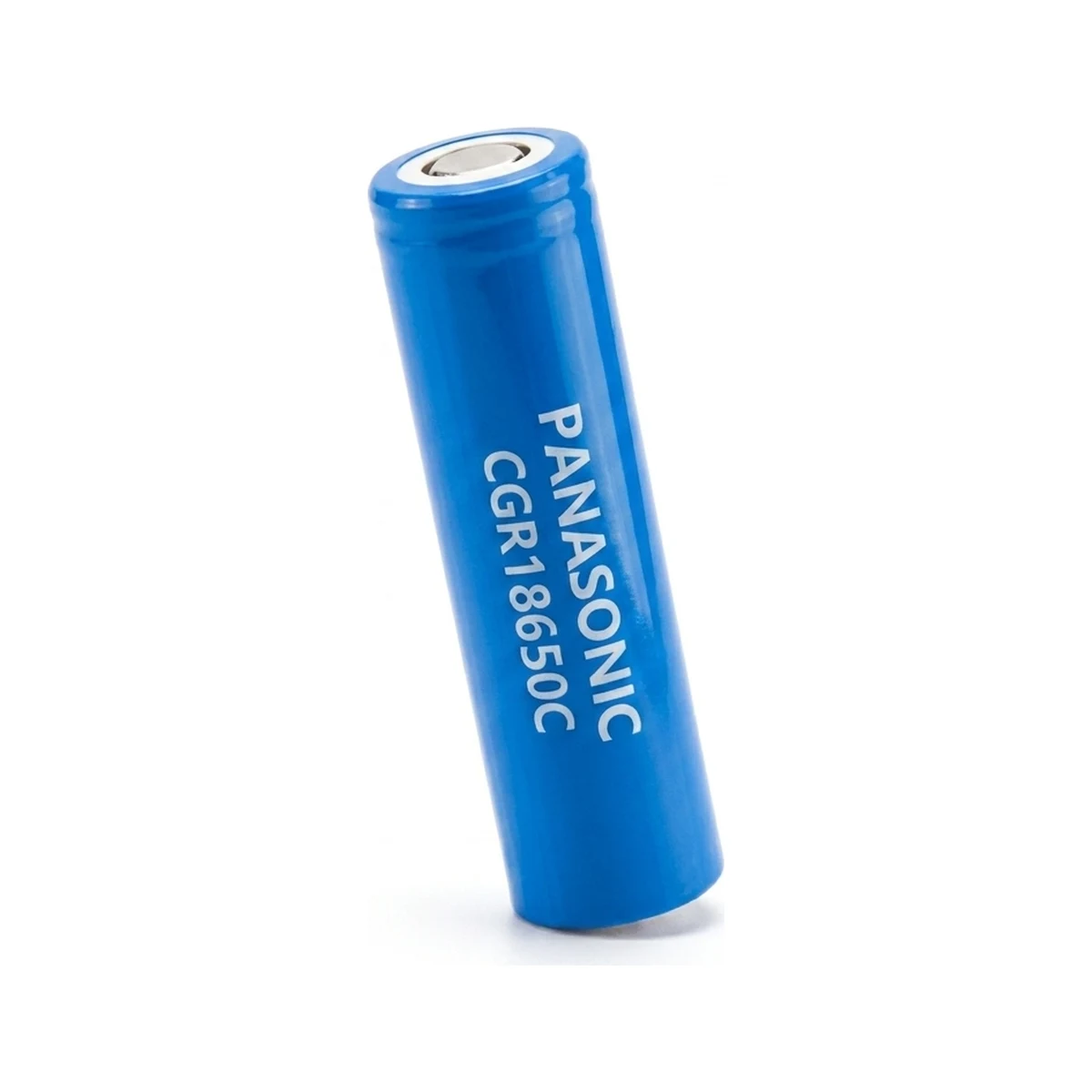

✱ RenderPanasonic CGR18650C
At 2150 mAh, this ranks #118 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3 V |
| Max continuous discharge | 4.08A |
| Standard charge current | 1428 mA |
| Standard discharge current | 408mA |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.6mm × 65.2mm |
| Weight | 44.5 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Blue |
| Insulator ring | White |
| Performance | |
| Capacity | 2150 mAh |
| Energy | 7.74 Wh |
| Specific energy | 173.93 Wh/kg |
| Energy density | 436.9 Wh/L |
| Power density (gravimetric) | 332 W/kg |
| Power density (volumetric) | 833 W/L |
| Cycle life | 500 cycles |
| Year released | 2003 |
| Operating Limits | |
| Discharge temp | -20°C to 60°C |
At the standard 1428 mA charge rate, a full charge takes about 1.5 hours. The last bit is a slow taper to top it off.
Voltage operating window
3VNominal
3.6VMax charge
4.2V
Usable range: 1.2V
C-rate conversion: Panasonic CGR18650C (2150mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.43 A | 5h 00m |
| 0.5C | 1.08 A | 2h 00m |
| 1C | 2.15 A | 1h 00m |
| 2C | 4.3 A | 30m |
Highlighted row is closest to the rated 4.1A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,075 mA | ~2h 00m |
| Standard | 1,428 mA | ~1h 30m |
| 1C | 2,150 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 3V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 6V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 9V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 12V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 21V | Ebike (24V system) |
| 10S | 36V | 42V | 30V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 39V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 42V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 48V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,150 mAh | 7.7 Wh | 4.1 A |
| 2P | 4,300 mAh | 15.5 Wh | 8.2 A |
| 3P | 6,450 mAh | 23.2 Wh | 12.3 A |
| 4P | 8,600 mAh | 31 Wh | 16.4 A |
| 5P | 10,750 mAh | 38.7 Wh | 20.5 A |
| 6P | 12,900 mAh | 46.4 Wh | 24.6 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Panasonic CGR18650C (this cell) | 2150 | 4.1A | 7.74 | 44.5g | 173.93 |
| Sanyo UR18650ZT | 2650 | 5.3A | 9.8 | 46g | 213 |
| LG LGDB118650 | 2600 | — | 9.8 | — | — |
| LG LGDBB11865 | 2600 | — | 9.8 | — | — |
| Sanyo UR18650ZTA | 2620 | 5.8A | 9.7 | 48g | 202 |
| BAK C18650CC | 2600 | 2A | 9.6 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 3V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
