Battery Building ToolsCell Database LGDBB11865

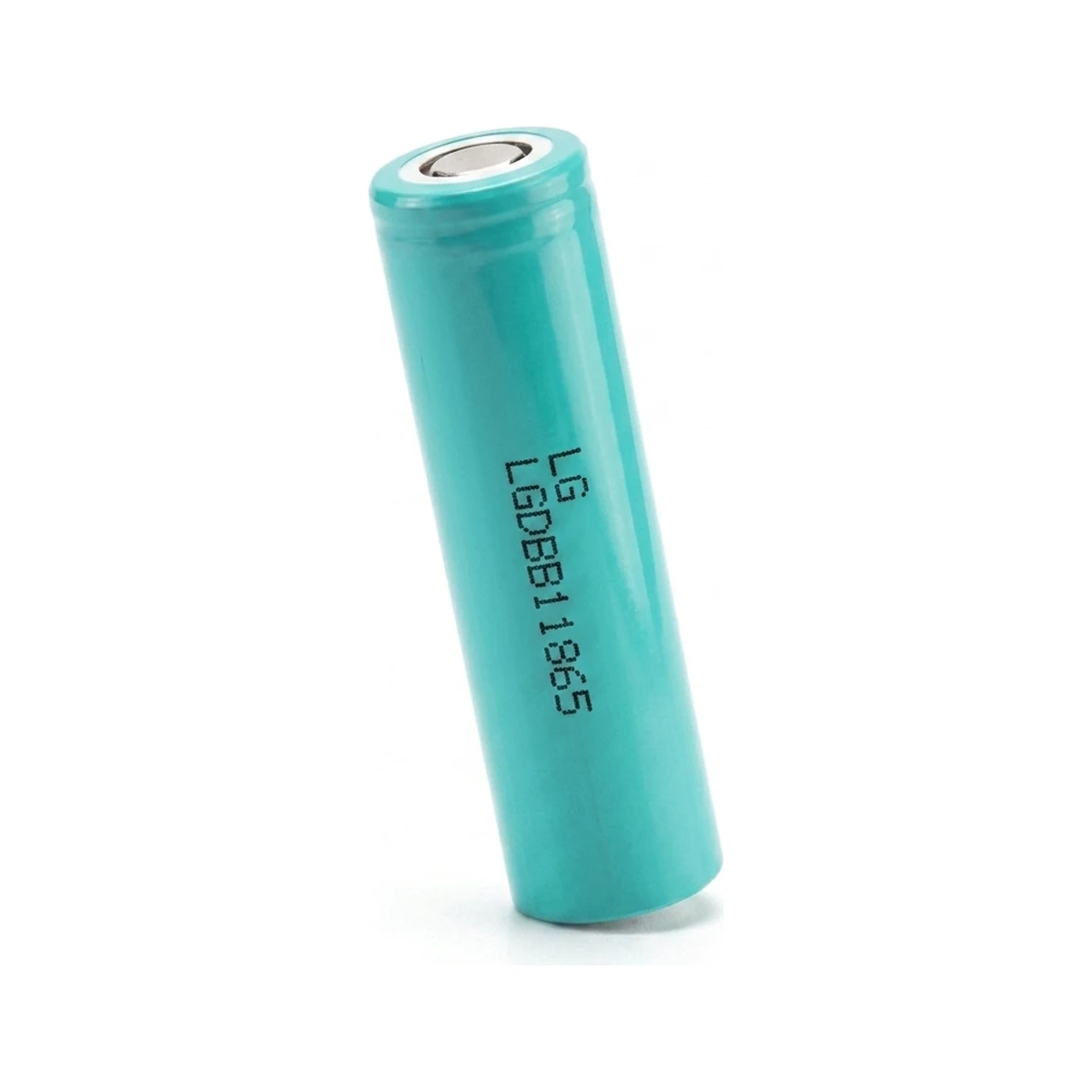

✱ Render

46.5 g

18650NMC

LG LGDBB11865

Q: What is the capacity of the LG LGDBB11865?

The LG LGDBB11865 has a rated capacity of 2,600mAh (9.75Wh at 3.75V nominal).

Q: What is the maximum discharge rate of the LG LGDBB11865?

The manufacturer rates the LGDBB11865 at 5.1A continuous discharge.

Q: How many LGDBB11865 cells do I need for a 48V ebike battery?

A 48V ebike pack uses a 13S configuration. With the LGDBB11865's 3.75V nominal, 13S gives you 48.8V nominal. A 13S4P pack (52 cells) delivers 10,400mAh (507Wh). That covers most 48V ebike applications.

Q: What does the LG LGDBB11865 weigh?

The LGDBB11865 weighs 46.5g with a specific energy of 209.68Wh/kg.

Q: Can I use the LGDBB11865 for vaping?

Not recommended. The LGDBB11865 is below the 25A Mooch CDR threshold that high-drain vaping requires. A cell with a higher CDR is the safer choice.

Q: What temperature range can the LGDBB11865 operate in?

Charge: 0°C to 45°C. Discharge: -20°C to 60°C.

LG · also sold as ICR18650B1 · released 2006

Capacity2600 mAh9.75 Wh · 209.68 Wh/kg

Rated continuous5.1 A5.1A

Resistance50 mΩDC internal resistance

Voltage window3.75 V3 – 4.35 V

Standard charge1275 mA~2 h to full

Build a pack with this cell →Download spec sheet (PDF)Open the datasheet

At 2600 mAh, this ranks #96 of 279 18650 cells in our database. Mid-range for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.75 V
Max charge voltage	4.35 V
Discharge cutoff	3 V
Max continuous discharge	5.1A
Standard charge current	1275 mA
Standard discharge current	510mA
Internal resistance	50 mΩ
Physical
Form factor	18650
Weight	46.5 g
Top type	Flat Top
Protected	No
Wrap color	Turquoise
Insulator ring	White
Performance
Capacity	2600 mAh
Energy	9.75 Wh
Specific energy	209.68 Wh/kg
Power density (gravimetric)	411 W/kg
Year released	2006
Operating Limits
Charge temp	0°C to 45°C
Discharge temp	-20°C to 60°C

At the standard 1275 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
3VNominal
3.75VMax charge
4.35V

Usable range: 1.3V

C-rate conversion: LG LGDBB11865 (2600mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.52 A	5h 00m
0.5C	1.3 A	2h 00m
1C	2.6 A	1h 00m
2C	5.2 A	30m

Highlighted row is closest to the rated 5.1A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,300 mA	~2h 00m
1C	2,600 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Datasheet

Download official LG LGDBB11865 datasheet (PDF) ↗

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.8V	4.4V	3V	Flashlights, single-cell devices
2S	7.5V	8.7V	6V	RC vehicles, 7.2V packs
3S	11.3V	13V	9V	Power tools (10.8V nominal)
4S	15V	17.4V	12V	Ebike (small), some power tools
7S	26.3V	30.4V	21V	Ebike (24V system)
10S	37.5V	43.5V	30V	Ebike (36V system)
13S	48.8V	56.6V	39V	Ebike (48V standard)
14S	52.5V	60.9V	42V	Ebike (52V high-power)
16S	60V	69.6V	48V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	2,600 mAh	9.8 Wh	5.1 A
2P	5,200 mAh	19.5 Wh	10.2 A
3P	7,800 mAh	29.3 Wh	15.3 A
4P	10,400 mAh	39 Wh	20.4 A
5P	13,000 mAh	48.8 Wh	25.5 A
6P	15,600 mAh	58.5 Wh	30.6 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells26.3V nominal5,200mAh137Wh10A maxCell weight: 0.65 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells48.8V nominal10,400mAh507Wh20A maxCell weight: 2.42 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells60V nominal10,400mAh624Wh20A maxCell weight: 2.98 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells15V nominal15,600mAh234Wh31A maxCell weight: 1.12 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksMarginal. Check your motor's peak draw first. You might get voltage sag under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsDecent runtime. Works well for most flashlights.

Power ToolsNot enough discharge or capacity for power tool use.

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
LG LGDBB11865 (this cell)	2600	5.1A	9.75	46.5g	209.68
LG LGABD11865	3000	5.8A	11.3	48.5g	232
LG LGDBD11865	3000	5.8A	11.3	48.5g	232
Nitecore NL1831	3100	35A	11.2	—	—
Panasonic NCR18650BD	3100	10A	11.2	49.5g	225
Samsung ICR18650-30B	2950	5.9A	11.2	48g	232

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance Essential ToolsSpot welders, testers, nickel strip and other supplies for your build Build GuideStep-by-step 18650 pack build from salvaging to final assembly

Frequently asked questions

What is the capacity of the LG LGDBB11865?

What is the maximum discharge rate of the LG LGDBB11865?

How many LGDBB11865 cells do I need for a 48V ebike battery?

What does the LG LGDBB11865 weigh?

Can I use the LGDBB11865 for vaping?

What temperature range can the LGDBB11865 operate in?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.35V or discharge below 3V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
