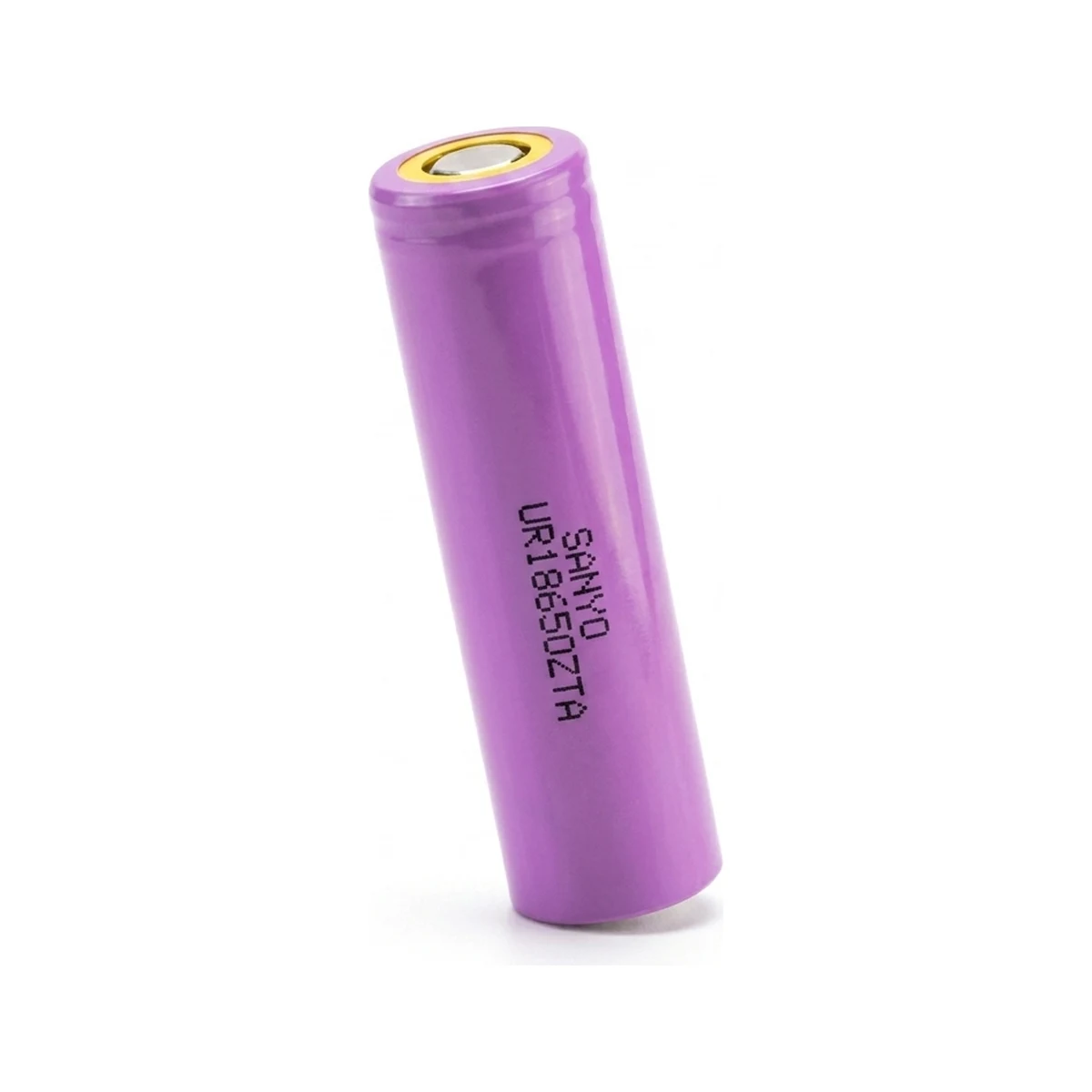

Sanyo UR18650ZTA Specifications
18650 · NMC — full datasheet specs for the Sanyo UR18650ZTA, plus what it delivers in common DIY pack configurations. Plan a build with it in the Battery Pack Calculator.
At 2620 mAh it ranks #38 of 165 18650 cells in our database by capacity — a mid-capacity 18650 options.
Full specifications
| Capacity | 2620 mAh |
|---|---|
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.35 V |
| Discharge cutoff | 3 V |
| Energy | 9.69 Wh |
| Standard charge current | 1450 mA |
| Standard discharge current | 580mA |
| Chemistry | NMC |
| Form factor | 18650 |
| Wrap color | Purple |
| Insulator ring | Yellow |
At the standard 1450 mA charge rate, a full charge takes roughly 1.8 hours plus the constant-voltage taper at the end.
The UR18650ZTA in a battery pack
Common DIY series configurations using this cell's real 3.7V nominal voltage, with a 3-cells-in-parallel (3P) example for capacity:
| Config | Nominal voltage | Fully charged | Cells (3P) | Capacity (3P) | Energy (3P) | |
|---|---|---|---|---|---|---|
| 3S | 11.1 V | 13 V | 9 | 7.9 Ah | 87 Wh | cell count guide |
| 7S | 25.9 V | 30.4 V | 21 | 7.9 Ah | 204 Wh | cell count guide |
| 10S | 37 V | 43.5 V | 30 | 7.9 Ah | 291 Wh | cell count guide |
| 13S | 48.1 V | 56.6 V | 39 | 7.9 Ah | 378 Wh | cell count guide |
| 14S | 51.8 V | 60.9 V | 42 | 7.9 Ah | 407 Wh | cell count guide |
Size a full pack around the UR18650ZTA — voltage, capacity, runtime, and BMS:
