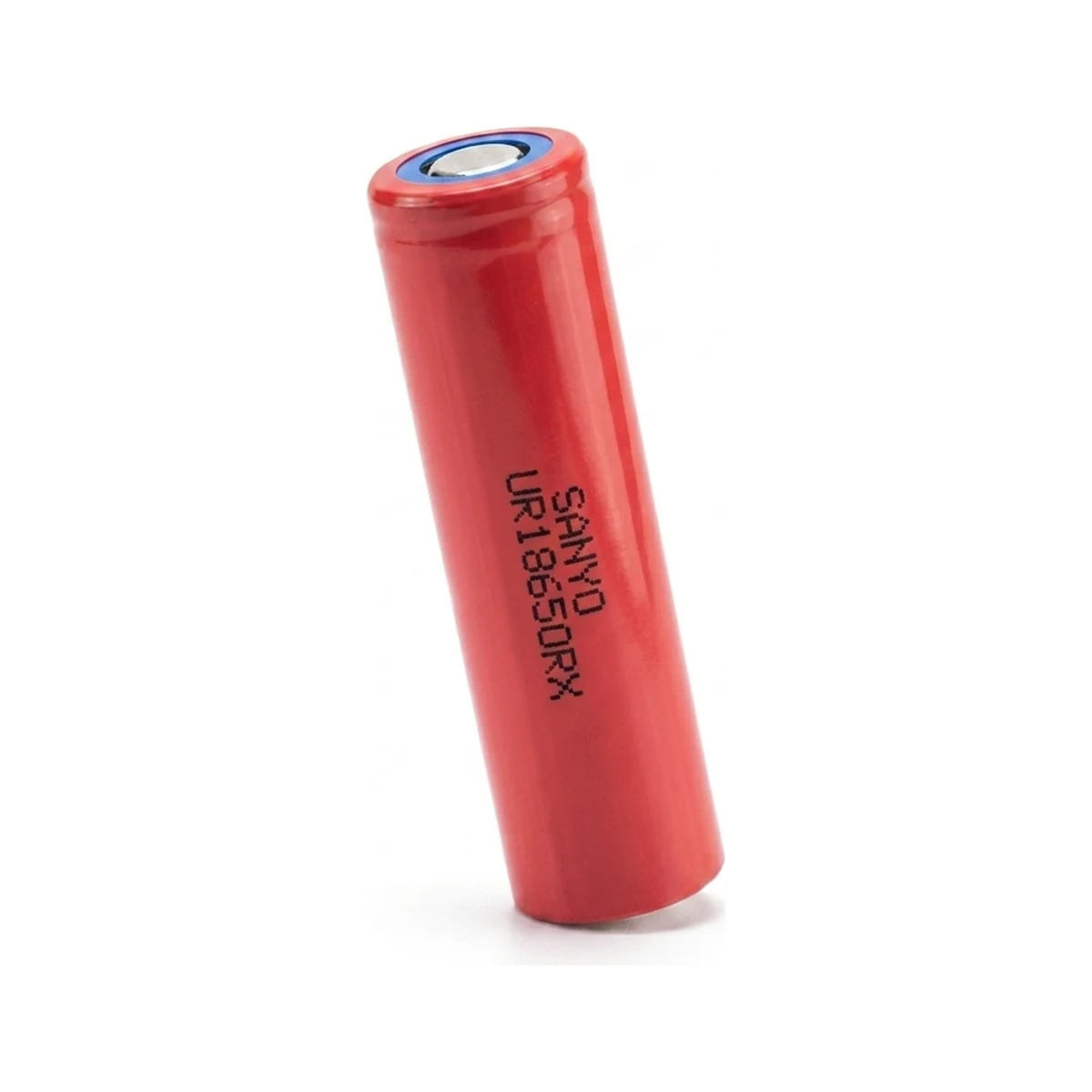

✱ RenderSanyo UR18650RX
At 1950 mAh, this ranks #142 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. Higher discharge than 91% of 18650 cells in our database. Great for high-drain builds.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.8 V |
| Max continuous discharge | 20A |
| Standard charge current | 1360 mA |
| Standard discharge current | 390mA |
| Internal resistance | 25 mΩ |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.6mm × 65.3mm |
| Weight | 46.2 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Red |
| Insulator ring | Blue |
| Performance | |
| Capacity | 1950 mAh |
| Energy | 7.02 Wh |
| Specific energy | 151.95 Wh/kg |
| Energy density | 395.65 Wh/L |
| Power density (gravimetric) | 1,558 W/kg |
| Power density (volumetric) | 4,058 W/L |
| Operating Limits | |
| Charge temp | 0°C to 40°C |
| Discharge temp | -20°C to 60°C |
At the standard 1360 mA charge rate, a full charge takes about 1.4 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.8VNominal
3.6VMax charge
4.2V
Usable range: 1.4V
C-rate conversion: Sanyo UR18650RX (1950mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.39 A | 5h 00m |
| 0.5C | 0.98 A | 2h 00m |
| 1C | 1.95 A | 1h 00m |
| 2C | 3.9 A | 30m |
| 3C | 5.85 A | 20m |
| 5C | 9.75 A | 12m |
| 8C | 15.6 A | 7m 30s |
| 10C | 19.5 A | 6m |
Highlighted row is closest to the rated 20A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 975 mA | ~2h 00m |
| Standard | 1,360 mA | ~1h 26m |
| 1C | 1,950 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.8V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5.6V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 8.4V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 11.2V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 19.6V | Ebike (24V system) |
| 10S | 36V | 42V | 28V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 36.4V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 39.2V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 44.8V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 1,950 mAh | 7 Wh | 20 A |
| 2P | 3,900 mAh | 14 Wh | 40 A |
| 3P | 5,850 mAh | 21.1 Wh | 60 A |
| 4P | 7,800 mAh | 28.1 Wh | 80 A |
| 5P | 9,750 mAh | 35.1 Wh | 100 A |
| 6P | 11,700 mAh | 42.1 Wh | 120 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Sanyo UR18650RX (this cell) | 1950 | 20A | 7.02 | 46.2g | 151.95 |
| Samsung ICR18650-24A | 2400 | 4.8A | 8.9 | 47g | 189 |
| Samsung ICR18650-24B | 2400 | 4.8A | 8.9 | 47g | 189 |
| Samsung ICR18650-24E | 2400 | 4.8A | 8.9 | 47g | 189 |
| Samsung ICR18650-24F | 2400 | 5A | 8.9 | 47g | 189 |
| Sanyo UR18650FB | 2400 | 4.8A | 8.9 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.8V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
