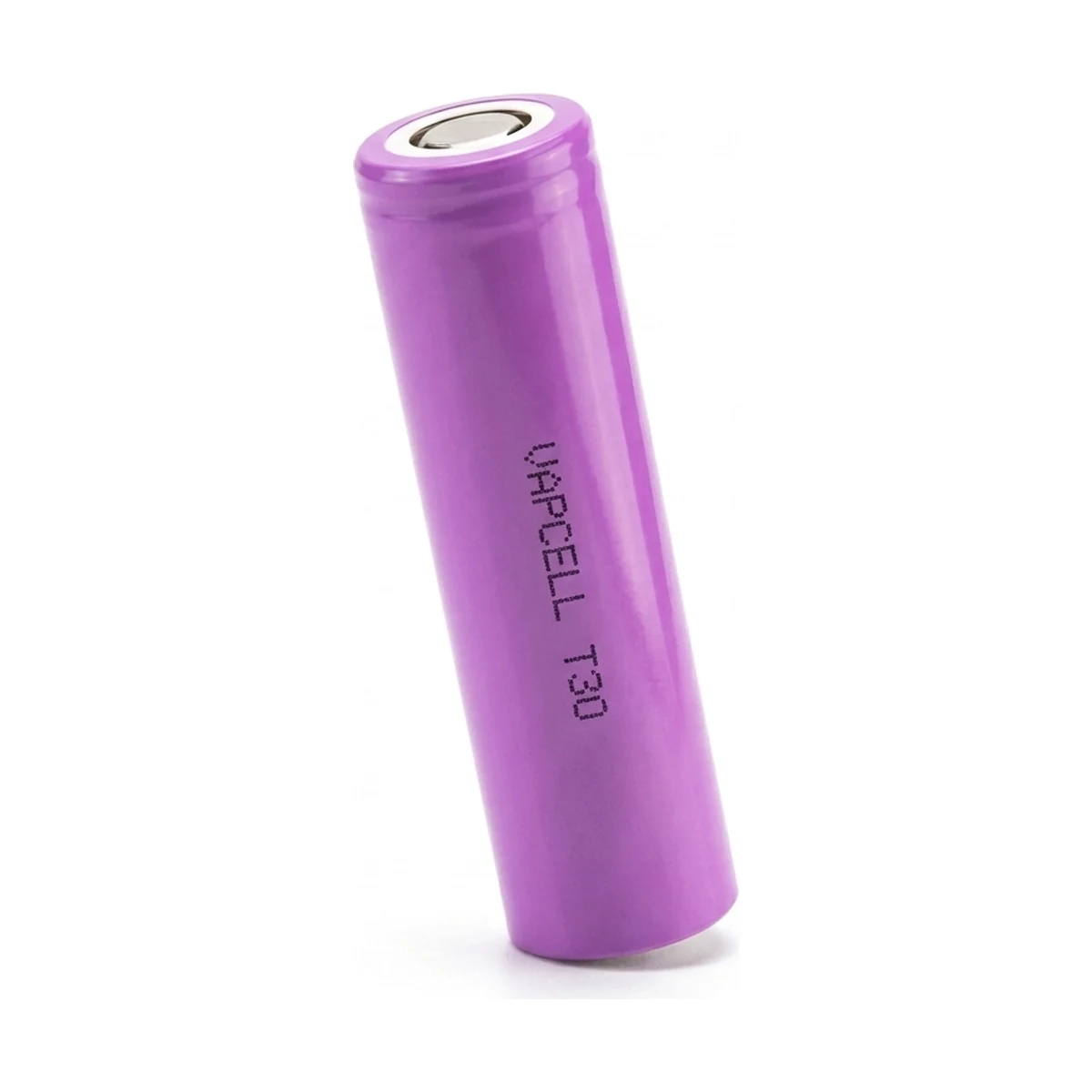

✱ RenderVapcell T30
At 3000 mAh, this ranks #69 of 72 21700 cells in our database. On the lower end for capacity among 21700 cells. A mid-range 21700 cell. Solid for builds that don't need extreme capacity or discharge.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 35A (Mooch-tested) |
| Mooch CDR (trusted) | 35 A |
| Standard charge current | 2000 mA |
| Internal resistance | 8 mΩ |
| Physical | |
| Form factor | 21700 |
| Dimensions | 21.6mm × 70.9mm |
| Weight | 70 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Purple |
| Performance | |
| Capacity | 3000 mAh |
| Energy | 10.8 Wh |
| Specific energy | 154.29 Wh/kg |
| Energy density | 415.7 Wh/L |
| Power density (gravimetric) | 1,800 W/kg |
| Power density (volumetric) | 4,850 W/L |
| Year released | 2021 |
Independent test data: Mooch's test of the T30 ↗
At the standard 2000 mA charge rate, a full charge takes about 1.5 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: Vapcell T30 (3000mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.6 A | 5h 00m |
| 0.5C | 1.5 A | 2h 00m |
| 1C | 3 A | 1h 00m |
| 2C | 6 A | 30m |
| 3C | 9 A | 20m |
| 5C | 15 A | 12m |
| 8C | 24 A | 7m 30s |
| 10C | 30 A | 6m |
Highlighted row is closest to the rated 35A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,500 mA | ~2h 00m |
| Standard | 2,000 mA | ~1h 30m |
| 1C | 3,000 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 3,000 mAh | 10.8 Wh | 35 A |
| 2P | 6,000 mAh | 21.6 Wh | 70 A |
| 3P | 9,000 mAh | 32.4 Wh | 105 A |
| 4P | 12,000 mAh | 43.2 Wh | 140 A |
| 5P | 15,000 mAh | 54 Wh | 175 A |
| 6P | 18,000 mAh | 64.8 Wh | 210 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Vapcell T30 (this cell) | 3000 | 35A | 10.8 | 70g | 154.29 |
| Vapcell PURPLE 35A 3100mAh | 3100 | 35A | 11.2 | 68g | 164 |
| Hohm Tech Hohm RUN | 3023 | 39A | 10.9 | — | — |
| Lishen LR2170LH | 3000 | 60A | 10.8 | — | — |
| Vapcell BLUE 35A 3000mAh | 3000 | 35A | 10.8 | 68g | 159 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
