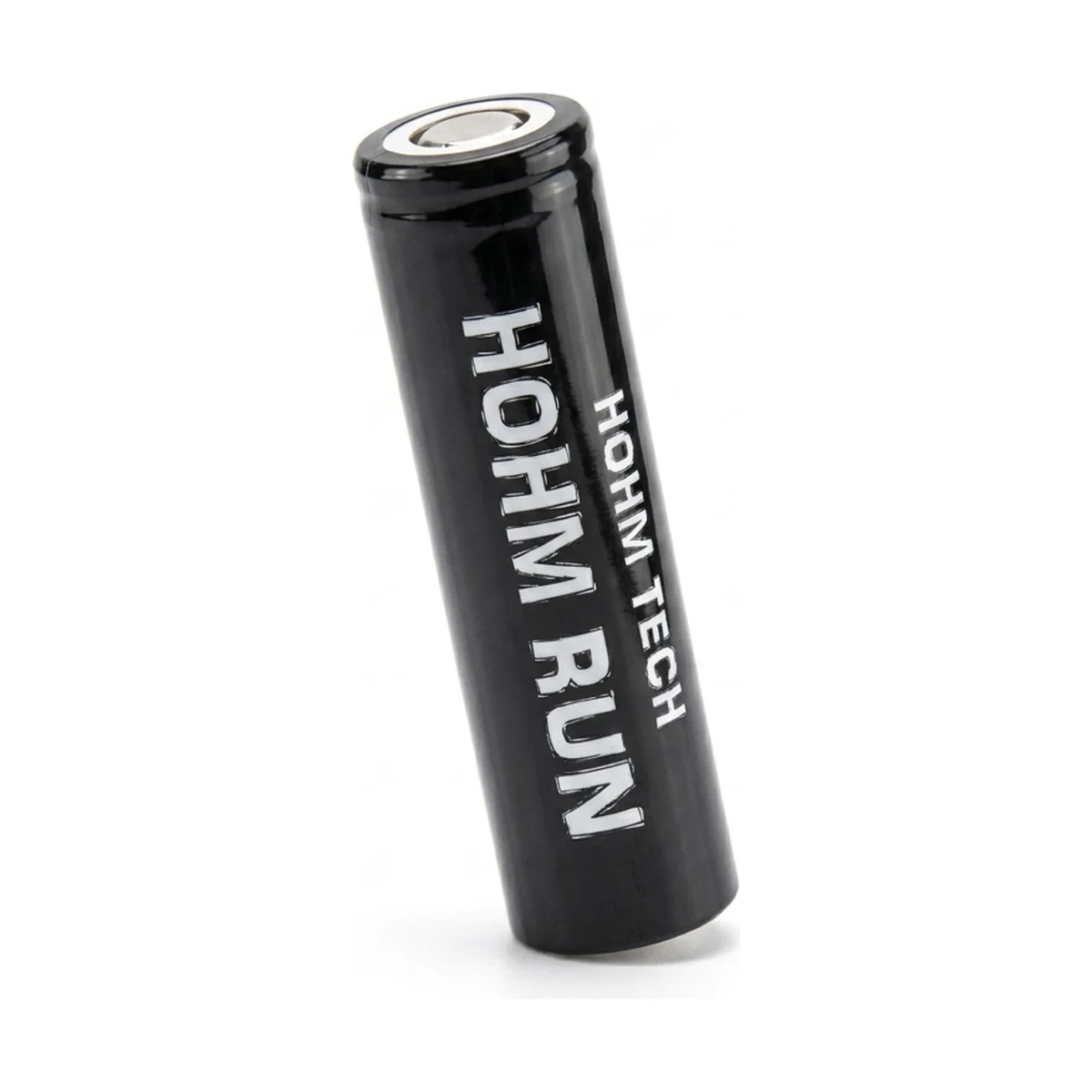

✱ RenderHohm Tech Hohm RUN
At 3023 mAh, this ranks #68 of 72 21700 cells in our database. On the lower end for capacity among 21700 cells. A mid-range 21700 cell. Solid for builds that don't need extreme capacity or discharge.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3.2 V |
| Max continuous discharge | 39A (Mooch-tested) |
| Mooch CDR (trusted) | 39 A |
| Internal resistance | 12.7 mΩ |
| Physical | |
| Form factor | 21700 |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Black |
| Performance | |
| Capacity | 3023 mAh |
| Energy | 10.88 Wh |
| Cycle life | 500 cycles |
Independent test data: Mooch's test of the Hohm RUN ↗
Voltage operating window
3.2VNominal
3.6VMax charge
4.2V
Usable range: 1.0V
C-rate conversion: Hohm Tech Hohm RUN (3023mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.6 A | 5h 00m |
| 0.5C | 1.51 A | 2h 00m |
| 1C | 3.02 A | 1h 00m |
| 2C | 6.05 A | 30m |
| 3C | 9.07 A | 20m |
| 5C | 15.12 A | 12m |
| 8C | 24.18 A | 7m 30s |
| 10C | 30.23 A | 6m |
Highlighted row is closest to the rated 39A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,512 mA | ~2h 00m |
| 1C | 3,023 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 3.2V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 6.4V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 9.6V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 12.8V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 22.4V | Ebike (24V system) |
| 10S | 36V | 42V | 32V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 41.6V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 44.8V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 51.2V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 3,023 mAh | 10.9 Wh | 39 A |
| 2P | 6,046 mAh | 21.8 Wh | 78 A |
| 3P | 9,069 mAh | 32.6 Wh | 117 A |
| 4P | 12,092 mAh | 43.5 Wh | 156 A |
| 5P | 15,115 mAh | 54.4 Wh | 195 A |
| 6P | 18,138 mAh | 65.3 Wh | 234 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Hohm Tech Hohm RUN (this cell) | 3023 | 39A | 10.88 | — | — |
| Vapcell PURPLE 35A 3100mAh | 3100 | 35A | 11.2 | 68g | 164 |
| Lishen LR2170LH | 3000 | 60A | 10.8 | — | — |
| Vapcell BLUE 35A 3000mAh | 3000 | 35A | 10.8 | 68g | 159 |
| Vapcell T30 | 3000 | 35A | 10.8 | 70g | 154 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 3.2V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
