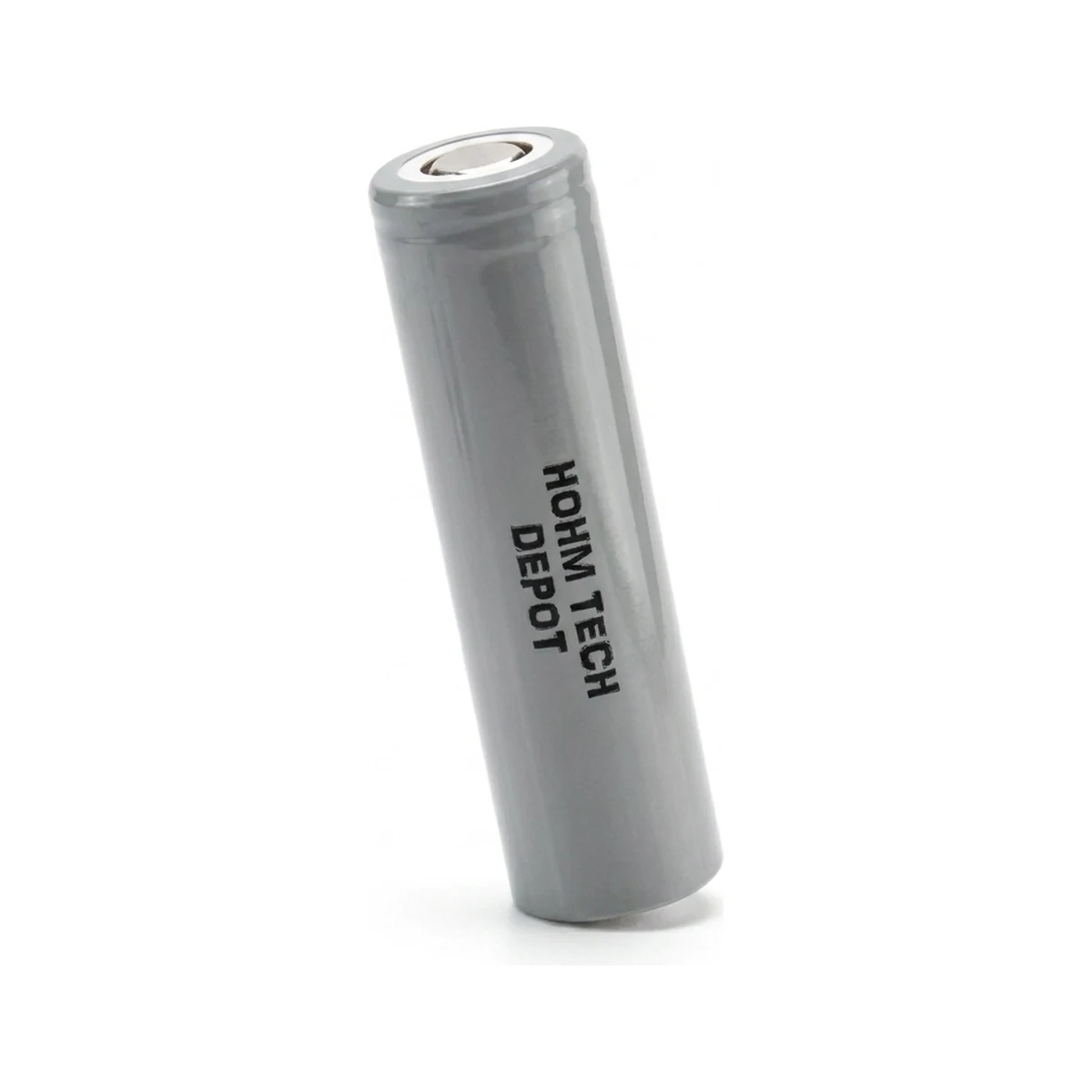

✱ Render

18650NMC Mooch-tested · 16 A

Hohm Tech DEPOT

Name: Hohm Tech DEPOT Lithium Battery Cell
Brand: Hohm Tech

Hohm Tech · released 2022

Capacity3005 mAh10.82 Wh

Mooch continuous16 ASize to this figure

Voltage window3.6 V2.5 – 4.2 V

Standard charge3600 mA~0.8 h to full

Build a pack with this cell →Download spec sheet (PDF)Mooch's test ↗

At 3005 mAh, this ranks #36 of 279 18650 cells in our database. Near the top for capacity among 18650 cells. More capacity than 87% of 18650 cells in our database. One of the higher-capacity options.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	16A (Mooch-tested)
Mooch CDR (trusted)	16 A
Standard charge current	3600 mA
Physical
Form factor	18650
Top type	Flat Top
Protected	No
Performance
Capacity	3005 mAh
Energy	10.82 Wh
Cycle life	500 cycles
Year released	2022

Independent test data: Mooch's test of the DEPOT ↗

At the standard 3600 mA charge rate, a full charge takes about 0.8 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Hohm Tech DEPOT (3005mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.6 A	5h 00m
0.5C	1.5 A	2h 00m
1C	3.01 A	1h 00m
2C	6.01 A	30m
3C	9.02 A	20m
5C	15.02 A	12m

Highlighted row is closest to the rated 16A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,503 mA	~2h 00m
1C	3,005 mA	~1h 00m
Standard	3,600 mA	~0h 50m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	3,005 mAh	10.8 Wh	16 A
2P	6,010 mAh	21.6 Wh	32 A
3P	9,015 mAh	32.5 Wh	48 A
4P	12,020 mAh	43.3 Wh	64 A
5P	15,025 mAh	54.1 Wh	80 A
6P	18,030 mAh	64.9 Wh	96 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal6,010mAh151Wh32A max

13S4P

48V ebike standard

52 cells46.8V nominal12,020mAh563Wh64A max

16S4P

DIY powerwall

64 cells57.6V nominal12,020mAh692Wh64A max

4S6P

Power tool replacement

24 cells14.4V nominal18,030mAh260Wh96A max

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksGood balance of capacity for range and discharge for hills. Works well in most ebike packs.

Car AudioMight work for smaller setups. Check your amp's peak current draw.

High-Drain VapingUsable in regulated mods at moderate wattage. Not recommended for mechanical mods.

FlashlightsHigh capacity means long runtime. Great for everyday carry and extended use.

Power ToolsSufficient discharge and capacity for most power tool packs.

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Hohm Tech DEPOT (this cell)	3005	16A	10.82	—	—
LG LGEBMJ11865	3500	10A	12.7	49g	260
LG LGDBMJ11865	3500	10A	12.7	49g	259
AWT AWT 35A 3500mAh	3500	35A	12.6	—	—
Epoch PROTECTED	3500	8A	12.6	49.1g	257
EVE INR18650-35V	3500	10A	12.6	47g	268

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Hohm Tech DEPOT?

What is the maximum discharge rate of the Hohm Tech DEPOT?

How many DEPOT cells do I need for a 48V ebike battery?

Can I use the DEPOT for vaping?

What is the cycle life of the Hohm Tech DEPOT?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
