18650NMC Mooch-tested · 22 A

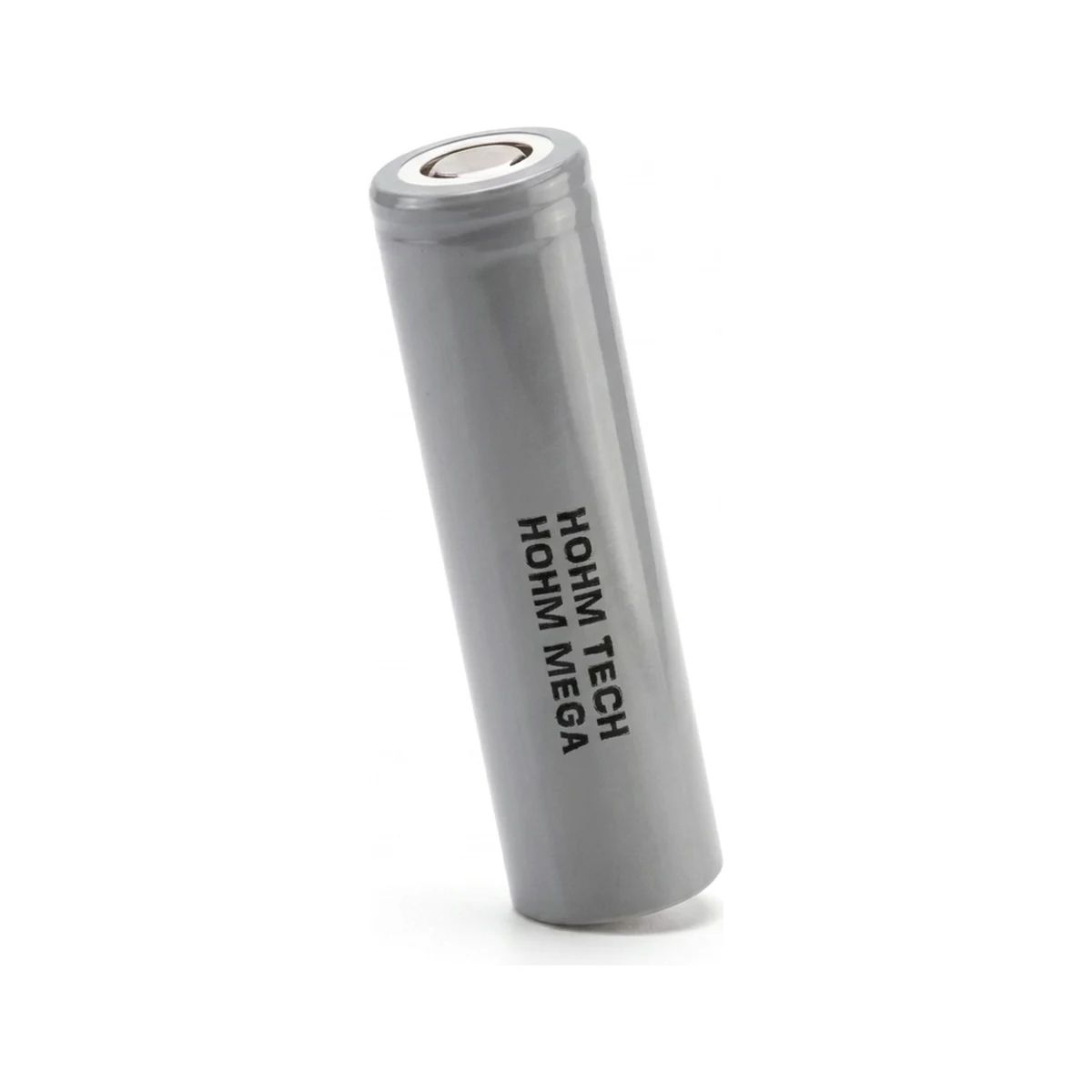

Hohm Tech Hohm Mega

Name: Hohm Tech Hohm Mega Lithium Battery Cell
Brand: Hohm Tech

Hohm Tech

Capacity2505 mAh9.02 Wh

Mooch continuous22 ASize to this figure

Voltage window3.6 V2.5 – 4.2 V

Standard charge4140 mA~0.6 h to full

Build a pack with this cell →Download spec sheet (PDF)Mooch's test ↗

At 2505 mAh, this ranks #131 of 279 18650 cells in our database. Mid-range for capacity among 18650 cells. Higher discharge than 78% of 18650 cells in our database. Great for high-drain builds.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	22A (Mooch-tested)
Mooch CDR (trusted)	22 A
Standard charge current	4140 mA
Physical
Form factor	18650
Top type	Flat Top
Protected	No
Performance
Capacity	2505 mAh
Energy	9.02 Wh

Independent test data: Mooch's test of the Hohm Mega ↗

At the standard 4140 mA charge rate, a full charge takes about 0.6 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Hohm Tech Hohm Mega (2505mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.5 A	5h 00m
0.5C	1.25 A	2h 00m
1C	2.51 A	1h 00m
2C	5.01 A	30m
3C	7.52 A	20m
5C	12.52 A	12m
8C	20.04 A	7m 30s

Highlighted row is closest to the rated 22A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,253 mA	~2h 00m
1C	2,505 mA	~1h 00m
Standard	4,140 mA	~0h 36m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	2,505 mAh	9 Wh	22 A
2P	5,010 mAh	18 Wh	44 A
3P	7,515 mAh	27.1 Wh	66 A
4P	10,020 mAh	36.1 Wh	88 A
5P	12,525 mAh	45.1 Wh	110 A
6P	15,030 mAh	54.1 Wh	132 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal5,010mAh126Wh44A max

13S4P

48V ebike standard

52 cells46.8V nominal10,020mAh469Wh88A max

16S4P

DIY powerwall

64 cells57.6V nominal10,020mAh577Wh88A max

4S6P

Power tool replacement

24 cells14.4V nominal15,030mAh216Wh132A max

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksGood balance of capacity for range and discharge for hills. Works well in most ebike packs.

Car AudioEnough discharge to handle amplifier bursts without voltage sag.

High-Drain VapingUsable in regulated mods at moderate wattage. Not recommended for mechanical mods.

FlashlightsDecent runtime. Works well for most flashlights.

Power ToolsSufficient discharge and capacity for most power tool packs.

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Hohm Tech Hohm Mega (this cell)	2505	22A	9.02	—	—
LG LGABD11865	3000	5.8A	11.3	48.5g	232
LG LGDBD11865	3000	5.8A	11.3	48.5g	232
Samsung ICR18650-30B	2950	5.9A	11.2	48g	232
Samsung ICR18650-30A	3000	6A	11.1	48g	231
Hohm Tech DEPOT	3005	16A	10.8	—	—

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Hohm Tech Hohm Mega?

What is the maximum discharge rate of the Hohm Tech Hohm Mega?

How many Hohm Mega cells do I need for a 48V ebike battery?

Can I use the Hohm Mega for vaping?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
