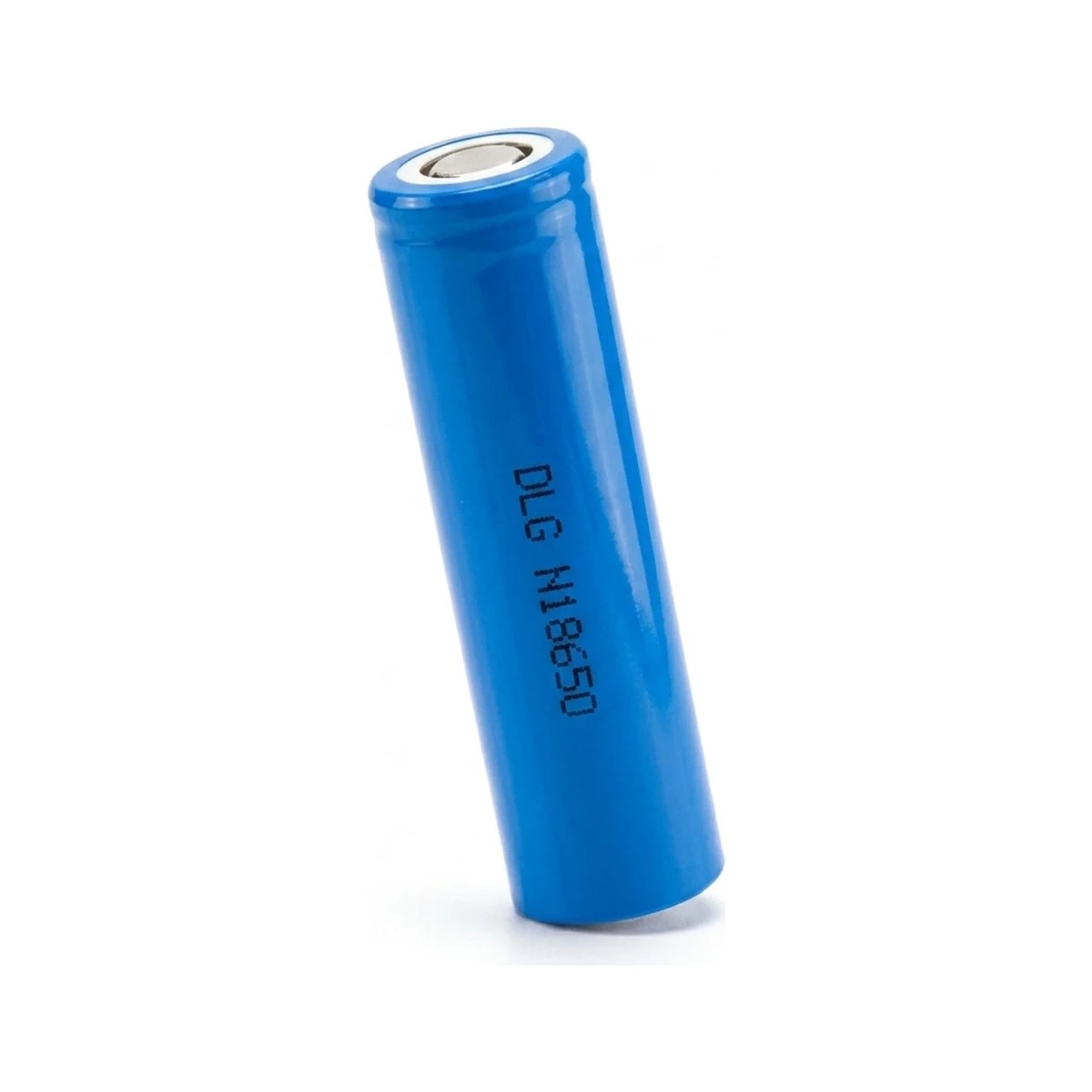

DLG N18650 Specifications
18650 · NMC — full datasheet specs for the DLG N18650, plus what it delivers in common DIY pack configurations. Plan a build with it in the Battery Pack Calculator.
At 2200 mAh it ranks #86 of 165 18650 cells in our database by capacity — a mid-capacity 18650 options.
Full specifications
| Capacity | 2200 mAh |
|---|---|
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.8 V |
| Energy | 7.92 Wh |
| Internal resistance | 48 mΩ |
| Standard charge current | 1100 mA |
| Standard discharge current | 440mA |
| Chemistry | NMC |
| Form factor | 18650 |
| Wrap color | Blue |
| Insulator ring | White |
At the standard 1100 mA charge rate, a full charge takes roughly 2 hours plus the constant-voltage taper at the end.
The N18650 in a battery pack
Common DIY series configurations using this cell's real 3.6V nominal voltage, with a 3-cells-in-parallel (3P) example for capacity:
| Config | Nominal voltage | Fully charged | Cells (3P) | Capacity (3P) | Energy (3P) | |
|---|---|---|---|---|---|---|
| 3S | 10.8 V | 12.6 V | 9 | 6.6 Ah | 71 Wh | cell count guide |
| 7S | 25.2 V | 29.4 V | 21 | 6.6 Ah | 166 Wh | cell count guide |
| 10S | 36 V | 42 V | 30 | 6.6 Ah | 238 Wh | cell count guide |
| 13S | 46.8 V | 54.6 V | 39 | 6.6 Ah | 309 Wh | cell count guide |
| 14S | 50.4 V | 58.8 V | 42 | 6.6 Ah | 333 Wh | cell count guide |
Size a full pack around the N18650 — voltage, capacity, runtime, and BMS:
