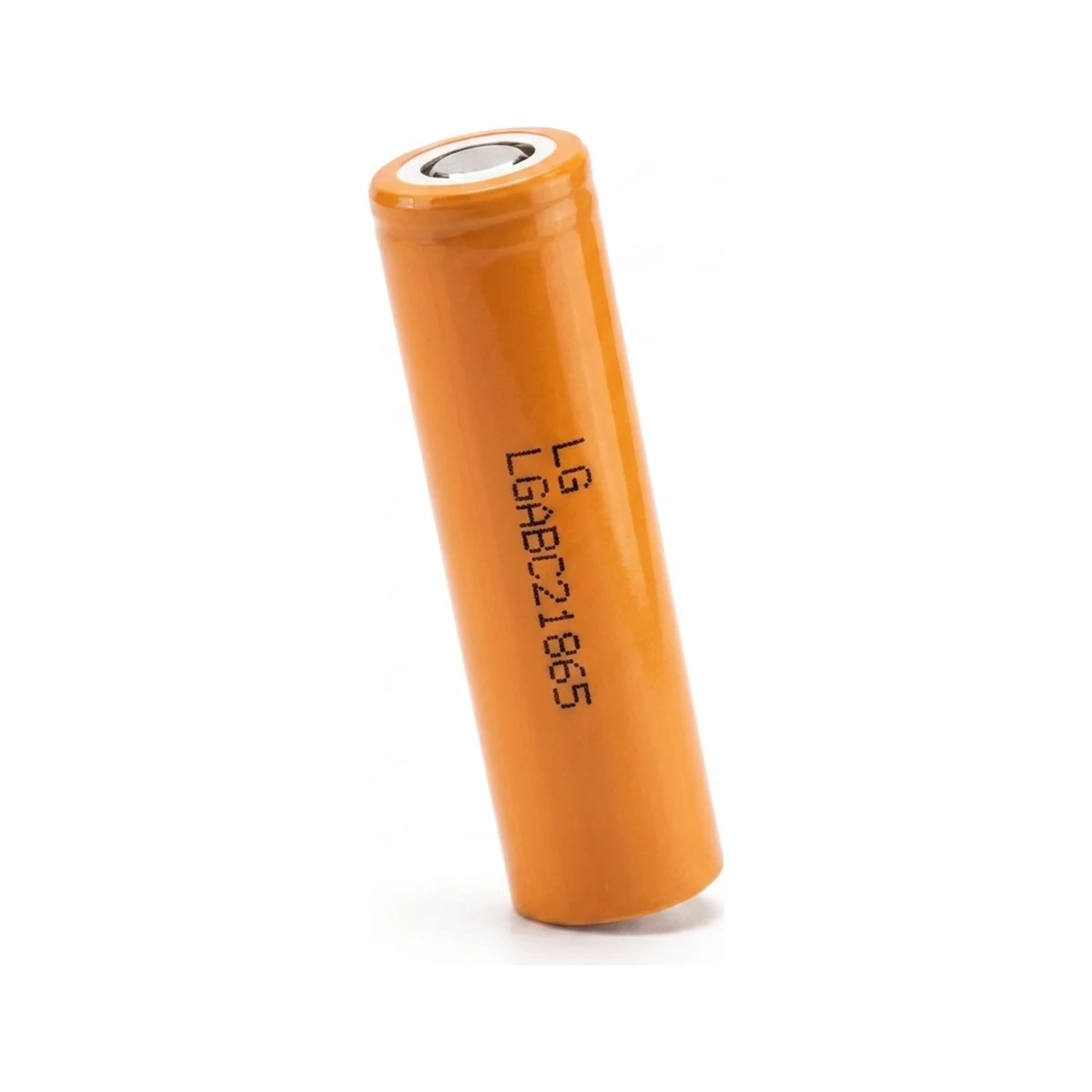

✱ RenderLG LGABC21865
At 2800 mAh, this ranks #28 of 169 18650 cells in our database. Near the top for capacity among 18650 cells. More capacity than 84% of 18650 cells in our database. One of the higher-capacity options.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.72 V |
| Max charge voltage | 4.3 V |
| Discharge cutoff | 3 V |
| Standard charge current | 1350 mA |
| Standard discharge current | 540mA |
| Internal resistance | 55 mΩ |
| Physical | |
| Form factor | 18650 |
| Wrap color | Orange |
| Insulator ring | White |
| Performance | |
| Capacity | 2800 mAh |
| Energy | 10.42 Wh |
At the standard 1350 mA charge rate, a full charge takes about 2.1 hours. The last bit is a slow taper to top it off.
Voltage operating window
3VNominal
3.72VMax charge
4.3V
Usable range: 1.3V
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,400 mA | ~2h 00m |
| 1C | 2,800 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.3V | 3V | Flashlights, single-cell devices |
| 2S | 7.4V | 8.6V | 6V | RC vehicles, 7.2V packs |
| 3S | 11.2V | 12.9V | 9V | Power tools (10.8V nominal) |
| 4S | 14.9V | 17.2V | 12V | Ebike (small), some power tools |
| 7S | 26V | 30.1V | 21V | Ebike (24V system) |
| 10S | 37.2V | 43V | 30V | Ebike (36V system) |
| 13S | 48.4V | 55.9V | 39V | Ebike (48V standard) |
| 14S | 52.1V | 60.2V | 42V | Ebike (52V high-power) |
| 16S | 59.5V | 68.8V | 48V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy |
|---|---|---|
| 1P | 2,800 mAh | 10.4 Wh |
| 2P | 5,600 mAh | 20.8 Wh |
| 3P | 8,400 mAh | 31.2 Wh |
| 4P | 11,200 mAh | 41.7 Wh |
| 5P | 14,000 mAh | 52.1 Wh |
| 6P | 16,800 mAh | 62.5 Wh |
Example pack configurations
Design a custom pack with this cell:
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| LG LGABC21865 (this cell) | 2800 | — | 10.42 | — | — |
| LG LGABE11865 | 3200 | 9A | 12 | 49g | 245 |
| LG LGEBE11865 | 3200 | 4.9A | 12 | — | — |
| Samsung ICR18650-32A | 3200 | 6.4A | 12 | 50g | 240 |
| Sanyo NCR18650GA | 3300 | 10A | 11.9 | 48g | 248 |
| EVE EVE-INR18650/33V | 3200 | 10A | 11.5 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.3V or discharge below 3V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
