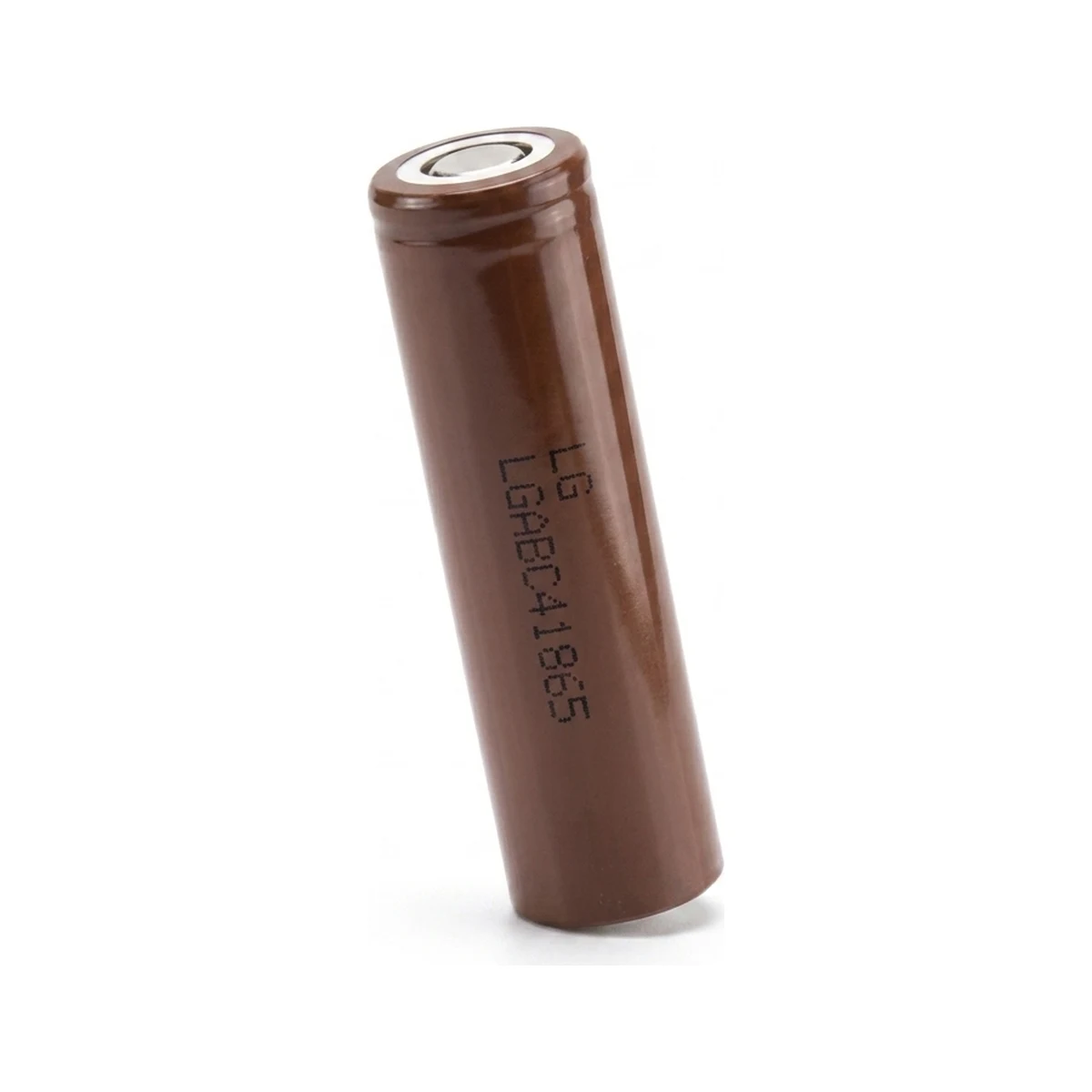

✱ RenderLG LGABC41865
At 2750 mAh, this ranks #35 of 169 18650 cells in our database. Mid-range for capacity among 18650 cells. More capacity than 80% of 18650 cells in our database. One of the higher-capacity options.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.65 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.8 V |
| Max continuous discharge | 5.5A |
| Standard charge current | 1375 mA |
| Standard discharge current | 550mA |
| Internal resistance | 70 mΩ |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.29mm × 65.15mm |
| Weight | 48.5 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Brown |
| Insulator ring | White |
| Performance | |
| Capacity | 2750 mAh |
| Energy | 10.04 Wh |
| Specific energy | 207.01 Wh/kg |
| Energy density | 586.55 Wh/L |
| Power density (gravimetric) | 414 W/kg |
| Power density (volumetric) | 1,173 W/L |
| Year released | 2014 |
| Operating Limits | |
| Charge temp | -3°C to 50°C |
| Discharge temp | -20°C to 60°C |
At the standard 1375 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.8VNominal
3.65VMax charge
4.2V
Usable range: 1.4V
C-rate conversion: LG LGABC41865 (2750mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.55 A | 5h 00m |
| 0.5C | 1.38 A | 2h 00m |
| 1C | 2.75 A | 1h 00m |
| 2C | 5.5 A | 30m |
Highlighted row is closest to the rated 5.5A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,375 mA | ~2h 00m |
| 1C | 2,750 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.2V | 2.8V | Flashlights, single-cell devices |
| 2S | 7.3V | 8.4V | 5.6V | RC vehicles, 7.2V packs |
| 3S | 11V | 12.6V | 8.4V | Power tools (10.8V nominal) |
| 4S | 14.6V | 16.8V | 11.2V | Ebike (small), some power tools |
| 7S | 25.6V | 29.4V | 19.6V | Ebike (24V system) |
| 10S | 36.5V | 42V | 28V | Ebike (36V system) |
| 13S | 47.4V | 54.6V | 36.4V | Ebike (48V standard) |
| 14S | 51.1V | 58.8V | 39.2V | Ebike (52V high-power) |
| 16S | 58.4V | 67.2V | 44.8V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,750 mAh | 10 Wh | 5.5 A |
| 2P | 5,500 mAh | 20.1 Wh | 11 A |
| 3P | 8,250 mAh | 30.1 Wh | 16.5 A |
| 4P | 11,000 mAh | 40.2 Wh | 22 A |
| 5P | 13,750 mAh | 50.2 Wh | 27.5 A |
| 6P | 16,500 mAh | 60.2 Wh | 33 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| LG LGABC41865 (this cell) | 2750 | 5.5A | 10.04 | 48.5g | 207.01 |
| LG LGABE11865 | 3200 | 9A | 12 | 49g | 245 |
| LG LGEBE11865 | 3200 | 4.9A | 12 | — | — |
| Samsung ICR18650-32A | 3200 | 6.4A | 12 | 50g | 240 |
| EVE EVE-INR18650/33V | 3200 | 10A | 11.5 | — | — |
| LG LGDBMH11865 | 3200 | 10A | 11.5 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.8V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
