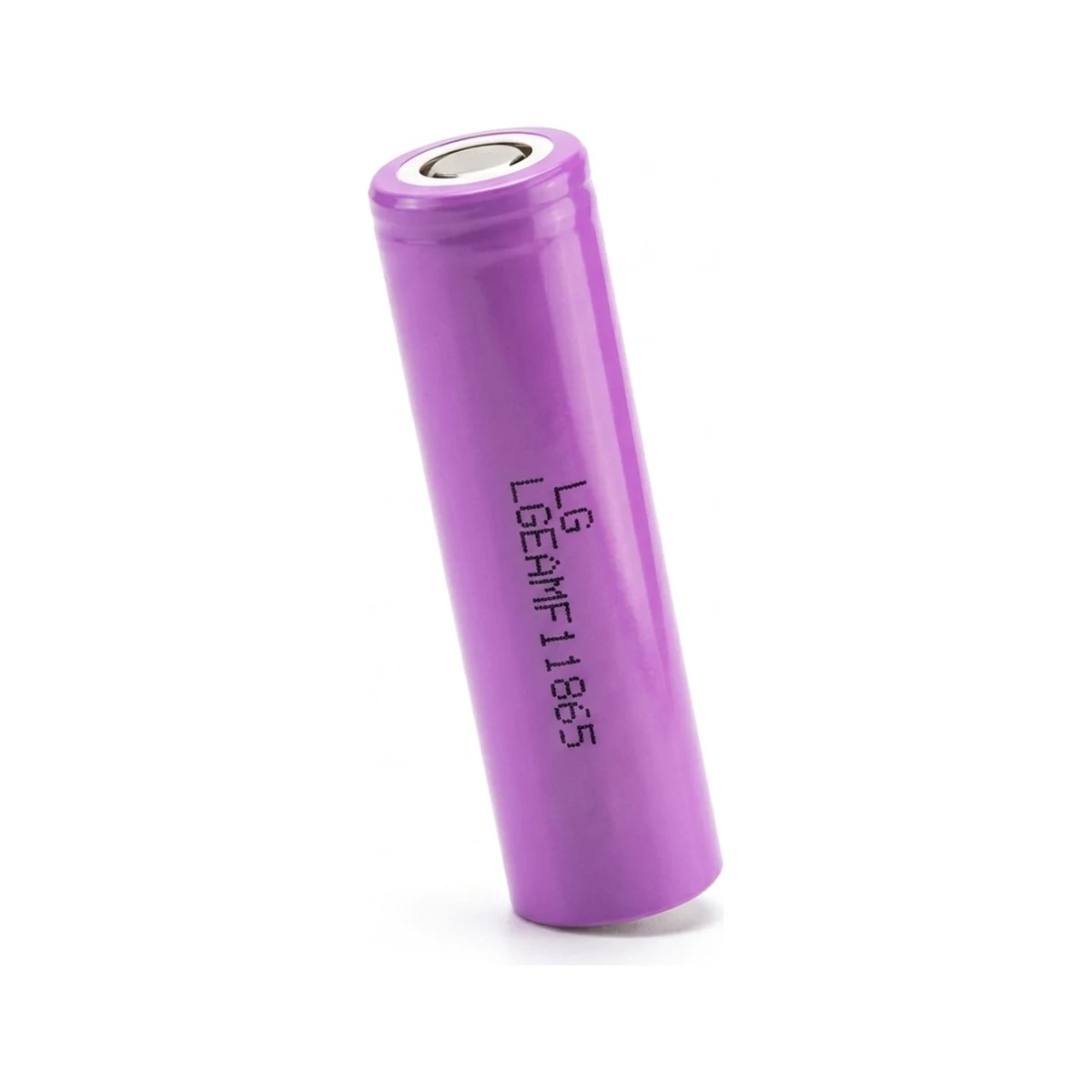

✱ RenderLG LGEAMF11865
At 2150 mAh, this ranks #118 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. Higher discharge than 80% of 18650 cells in our database. Great for high-drain builds.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.65 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.8 V |
| Max continuous discharge | 10A |
| Standard charge current | 1075 mA |
| Standard discharge current | 430mA |
| Internal resistance | 35 mΩ |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.3mm × 65mm |
| Weight | 44 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Purple |
| Insulator ring | White |
| Performance | |
| Capacity | 2150 mAh |
| Energy | 7.85 Wh |
| Specific energy | 178.41 Wh/kg |
| Energy density | 459.16 Wh/L |
| Power density (gravimetric) | 830 W/kg |
| Power density (volumetric) | 2,135 W/L |
| Cycle life | 500 cycles |
| Year released | 2011 |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
At the standard 1075 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.8VNominal
3.65VMax charge
4.2V
Usable range: 1.4V
C-rate conversion: LG LGEAMF11865 (2150mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.43 A | 5h 00m |
| 0.5C | 1.08 A | 2h 00m |
| 1C | 2.15 A | 1h 00m |
| 2C | 4.3 A | 30m |
| 3C | 6.45 A | 20m |
Highlighted row is closest to the rated 10A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,075 mA | ~2h 00m |
| 1C | 2,150 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.2V | 2.8V | Flashlights, single-cell devices |
| 2S | 7.3V | 8.4V | 5.6V | RC vehicles, 7.2V packs |
| 3S | 11V | 12.6V | 8.4V | Power tools (10.8V nominal) |
| 4S | 14.6V | 16.8V | 11.2V | Ebike (small), some power tools |
| 7S | 25.6V | 29.4V | 19.6V | Ebike (24V system) |
| 10S | 36.5V | 42V | 28V | Ebike (36V system) |
| 13S | 47.4V | 54.6V | 36.4V | Ebike (48V standard) |
| 14S | 51.1V | 58.8V | 39.2V | Ebike (52V high-power) |
| 16S | 58.4V | 67.2V | 44.8V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,150 mAh | 7.8 Wh | 10 A |
| 2P | 4,300 mAh | 15.7 Wh | 20 A |
| 3P | 6,450 mAh | 23.5 Wh | 30 A |
| 4P | 8,600 mAh | 31.4 Wh | 40 A |
| 5P | 10,750 mAh | 39.2 Wh | 50 A |
| 6P | 12,900 mAh | 47.1 Wh | 60 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| LG LGEAMF11865 (this cell) | 2150 | 10A | 7.85 | 44g | 178.41 |
| Sanyo UR18650ZT | 2650 | 5.3A | 9.8 | 46g | 213 |
| LG LGDB118650 | 2600 | — | 9.8 | — | — |
| LG LGDBB11865 | 2600 | — | 9.8 | — | — |
| Sanyo UR18650ZTA | 2620 | 5.8A | 9.7 | 48g | 202 |
| BAK C18650CC | 2600 | 2A | 9.6 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.8V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
