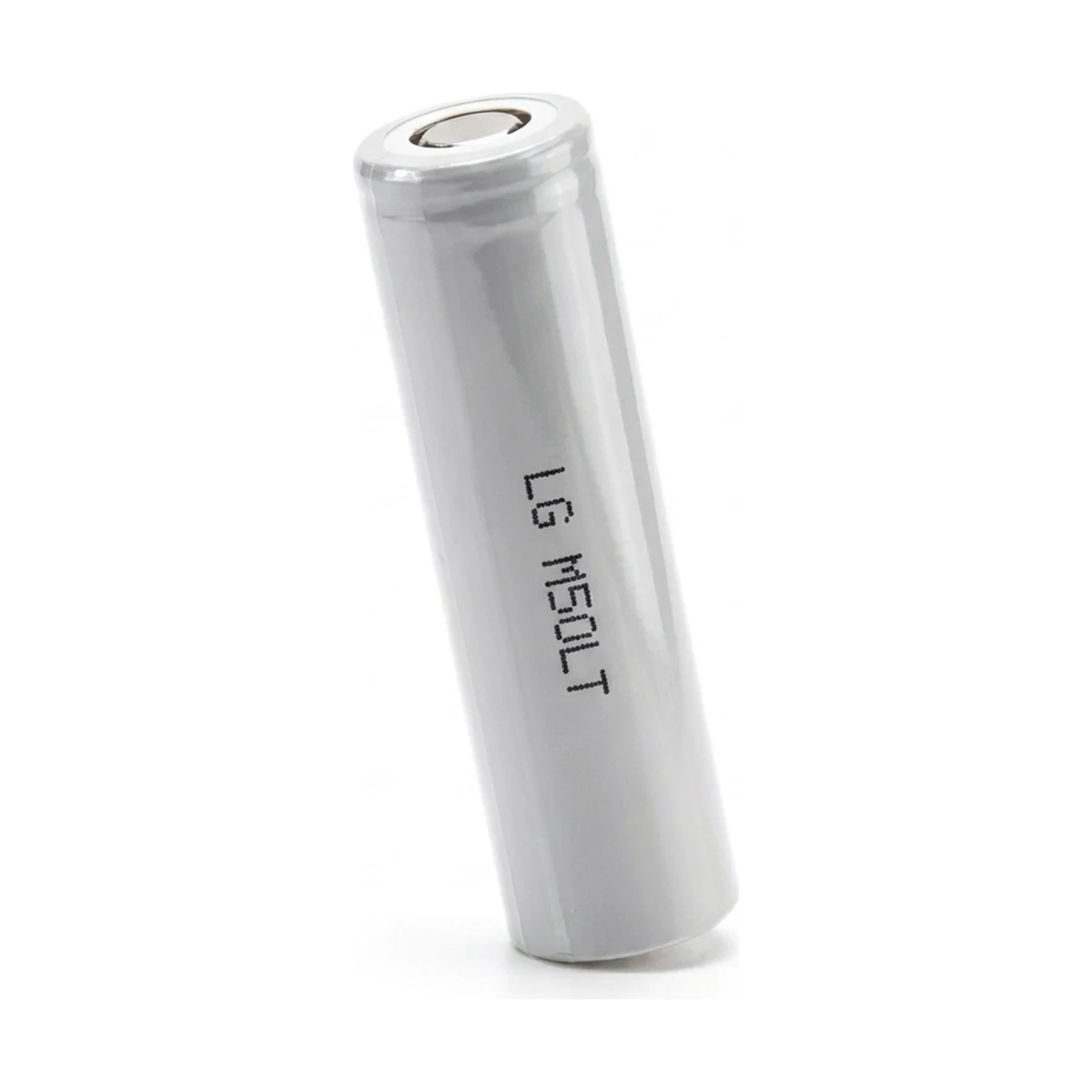

✱ RenderLG M50LT
At 4932 mAh, this ranks #37 of 72 21700 cells in our database. Mid-range for capacity among 21700 cells. A mid-range 21700 cell. Solid for builds that don't need extreme capacity or discharge.
Photos from the community
See the wrap, markings, and terminals up close.
Community photo submissions are opening soon.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.6 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 2.5 V |
| Max continuous discharge | 14A (Mooch-tested) |
| Mooch CDR (trusted) | 14 A |
| Standard charge current | 1440 mA |
| Standard discharge current | 1440mA |
| Physical | |
| Form factor | 21700 |
| Dimensions | 21.44mm × 70.8mm |
| Weight | 67 g |
| Top type | Flat Top |
| Protected | No |
| Wrap color | Clear |
| Performance | |
| Capacity | 4932 mAh |
| Energy | 17.76 Wh |
| Specific energy | 265.07 Wh/kg |
| Energy density | 694.82 Wh/L |
| Power density (gravimetric) | 752 W/kg |
| Power density (volumetric) | 1,972 W/L |
| Cycle life | 1000 cycles |
| Year released | 2020 |
Independent test data: Mooch's test of the M50LT ↗
At the standard 1440 mA charge rate, a full charge takes about 3.4 hours. The last bit is a slow taper to top it off.
Voltage operating window
2.5VNominal
3.6VMax charge
4.2V
Usable range: 1.7V
C-rate conversion: LG M50LT (4932mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.99 A | 5h 00m |
| 0.5C | 2.47 A | 2h 00m |
| 1C | 4.93 A | 1h 00m |
| 2C | 9.86 A | 30m |
Highlighted row is closest to the rated 14A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| Standard | 1,440 mA | ~3h 25m |
| 0.5C | 2,466 mA | ~2h 00m |
| 1C | 4,932 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.6V | 4.2V | 2.5V | Flashlights, single-cell devices |
| 2S | 7.2V | 8.4V | 5V | RC vehicles, 7.2V packs |
| 3S | 10.8V | 12.6V | 7.5V | Power tools (10.8V nominal) |
| 4S | 14.4V | 16.8V | 10V | Ebike (small), some power tools |
| 7S | 25.2V | 29.4V | 17.5V | Ebike (24V system) |
| 10S | 36V | 42V | 25V | Ebike (36V system) |
| 13S | 46.8V | 54.6V | 32.5V | Ebike (48V standard) |
| 14S | 50.4V | 58.8V | 35V | Ebike (52V high-power) |
| 16S | 57.6V | 67.2V | 40V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 4,932 mAh | 17.8 Wh | 14 A |
| 2P | 9,864 mAh | 35.5 Wh | 28 A |
| 3P | 14,796 mAh | 53.3 Wh | 42 A |
| 4P | 19,728 mAh | 71 Wh | 56 A |
| 5P | 24,660 mAh | 88.8 Wh | 70 A |
| 6P | 29,592 mAh | 106.5 Wh | 84 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| LG M50LT (this cell) | 4932 | 14A | 17.76 | 67g | 265.07 |
| BAK 53E | 5300 | 10A | 19.1 | 69g | 277 |
| Samsung INR21700-53G | 5300 | 10A | 19.1 | 72g | 265 |
| LG M50T | 5014 | 14A | 18.1 | 70g | 258 |
| Ampace JP50P1 | 5000 | 40A | 18 | 72g | 250 |
| Amprius INR21700-50Q | 5000 | 50A | 18 | 70g | 257 |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 2.5V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
