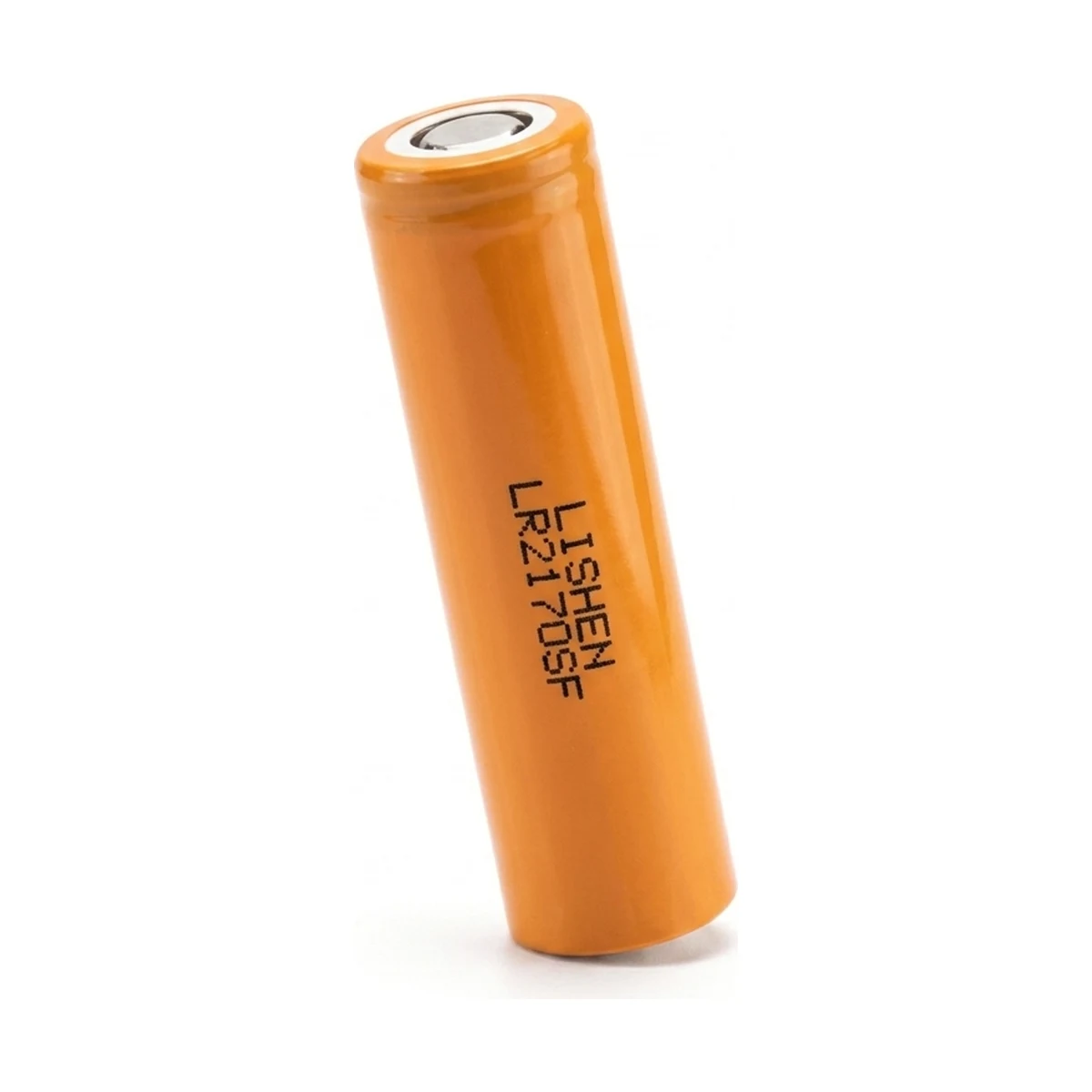

✱ Render

21.7 × 70.9 mm · 70 g

21700NCA Mooch-tested · 13 A

Lishen LR2170SF

Name: Lishen LR2170SF Lithium Battery Cell
Brand: Lishen

Lishen · released 2018

Capacity4500 mAh16.2 Wh · 231.43 Wh/kg

Mooch continuous13 ASize to this figure

Resistance21 mΩDC internal resistance

Voltage window3.6 V2.5 – 4.2 V

Build a pack with this cell →Download spec sheet (PDF)Mooch's test ↗

At 4500 mAh, this ranks #40 of 72 21700 cells in our database. Mid-range for capacity among 21700 cells. A mid-range 21700 cell. Solid for builds that don't need extreme capacity or discharge.

Photos from the community

See the wrap, markings, and terminals up close.

Have this cell in hand?

Community photo submissions are opening soon.

Full specifications

Electrical
Chemistry	NCA
Nominal voltage	3.6 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	13A (Mooch-tested)
Mooch CDR (trusted)	13 A
Internal resistance	21 mΩ
Physical
Form factor	21700
Dimensions	21.7mm × 70.9mm
Weight	70 g
Top type	Flat Top
Protected	No
Wrap color	Orange
Performance
Capacity	4500 mAh
Energy	16.2 Wh
Specific energy	231.43 Wh/kg
Energy density	617.82 Wh/L
Power density (gravimetric)	669 W/kg
Power density (volumetric)	1,785 W/L
Cycle life	1000 cycles
Year released	2018

Independent test data: Mooch's test of the LR2170SF ↗

Voltage operating window

Cutoff
2.5VNominal
3.6VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Lishen LR2170SF (4500mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.9 A	5h 00m
0.5C	2.25 A	2h 00m
1C	4.5 A	1h 00m
2C	9 A	30m
3C	13.5 A	20m

Highlighted row is closest to the rated 13A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	2,250 mA	~2h 00m
1C	4,500 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.6V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.2V	8.4V	5V	RC vehicles, 7.2V packs
3S	10.8V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.4V	16.8V	10V	Ebike (small), some power tools
7S	25.2V	29.4V	17.5V	Ebike (24V system)
10S	36V	42V	25V	Ebike (36V system)
13S	46.8V	54.6V	32.5V	Ebike (48V standard)
14S	50.4V	58.8V	35V	Ebike (52V high-power)
16S	57.6V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	4,500 mAh	16.2 Wh	13 A
2P	9,000 mAh	32.4 Wh	26 A
3P	13,500 mAh	48.6 Wh	39 A
4P	18,000 mAh	64.8 Wh	52 A
5P	22,500 mAh	81 Wh	65 A
6P	27,000 mAh	97.2 Wh	78 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.2V nominal9,000mAh227Wh26A maxCell weight: 0.98 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells46.8V nominal18,000mAh842Wh52A maxCell weight: 3.64 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells57.6V nominal18,000mAh1037Wh52A maxCell weight: 4.48 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.4V nominal27,000mAh389Wh78A maxCell weight: 1.68 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksGood balance of capacity for range and discharge for hills. Works well in most ebike packs.

Car AudioMight work for smaller setups. Check your amp's peak current draw.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsHigh capacity means long runtime. Great for everyday carry and extended use.

Power ToolsMay work for lighter-duty tools. Check your tool's current requirements.

Physical dimensions

Dimensions21.7mm × 70.9mm

TopFlat Top

Format21700

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Lishen LR2170SF?

What is the maximum discharge rate of the Lishen LR2170SF?

How many LR2170SF cells do I need for a 48V ebike battery?

What does the Lishen LR2170SF weigh?

Can I use the LR2170SF for vaping?

What is the cycle life of the Lishen LR2170SF?

What size is the Lishen LR2170SF?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
