Battery Building ToolsCell Database IFR-18650EC

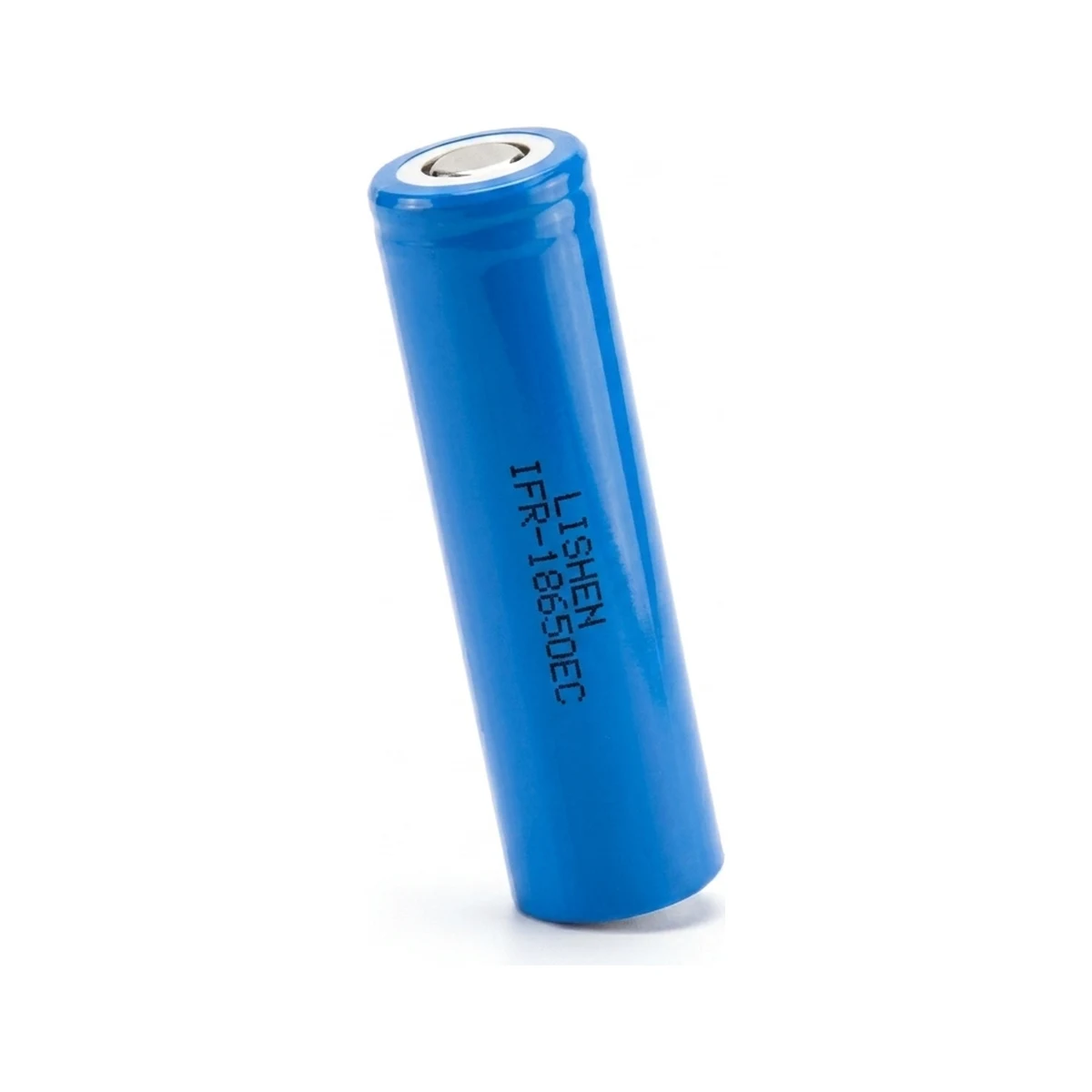

✱ Render

18.2 × 65 mm · 42 g

18650LFP

Lishen (LS) IFR-18650EC

Name: Lishen (LS) IFR-18650EC Lithium Battery Cell
Brand: Lishen (LS)

Lishen (LS)

Capacity1500 mAh4.8 Wh · 114.29 Wh/kg

Rated continuous5 A5A

Voltage window3.2 V2 – 3.65 V

Standard charge1500 mA~1 h to full

Build a pack with this cell →Download spec sheet (PDF)Open the datasheet

At 1500 mAh, this ranks #149 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.

Full specifications

Electrical
Chemistry	LFP
Nominal voltage	3.2 V
Max charge voltage	3.65 V
Discharge cutoff	2 V
Max continuous discharge	5A
Standard charge current	1500 mA
Standard discharge current	300mA
Physical
Form factor	18650
Dimensions	18.2mm × 65mm
Weight	42 g
Top type	Button Top
Protected	No
Wrap color	Blue
Insulator ring	White
Performance
Capacity	1500 mAh
Energy	4.8 Wh
Specific energy	114.29 Wh/kg
Energy density	283.85 Wh/L
Power density (gravimetric)	381 W/kg
Power density (volumetric)	946 W/L
Cycle life	2000 cycles
Operating Limits
Charge temp	-10°C to 45°C
Discharge temp	-20°C to 60°C

At the standard 1500 mA charge rate, a full charge takes about 1 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2VNominal
3.2VMax charge
3.65V

Usable range: 1.6V

C-rate conversion: Lishen (LS) IFR-18650EC (1500mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.3 A	5h 00m
0.5C	0.75 A	2h 00m
1C	1.5 A	1h 00m
2C	3 A	30m
3C	4.5 A	20m

Highlighted row is closest to the rated 5A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	750 mA	~2h 00m
1C	1,500 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Datasheet

Download official Lishen (LS) IFR-18650EC datasheet (PDF) ↗

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
4S	12.8V	14.6V	8V	12V system (LiFePO4)
8S	25.6V	29.2V	16V	24V system
12S	38.4V	43.8V	24V	36V system
16S	51.2V	58.4V	32V	48V powerwall / ebike

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	1,500 mAh	4.8 Wh	5 A
2P	3,000 mAh	9.6 Wh	10 A
3P	4,500 mAh	14.4 Wh	15 A
4P	6,000 mAh	19.2 Wh	20 A
5P	7,500 mAh	24 Wh	25 A
6P	9,000 mAh	28.8 Wh	30 A

Example pack configurations

4S1P

12V system

4 cells12.8V nominal1,500mAh19Wh5A maxCell weight: 0.17 kg (add ~15% for wiring and BMS)

4S2P

12V with more capacity

8 cells12.8V nominal3,000mAh38Wh10A maxCell weight: 0.34 kg (add ~15% for wiring and BMS)

8S1P

24V system

8 cells25.6V nominal1,500mAh38Wh5A maxCell weight: 0.34 kg (add ~15% for wiring and BMS)

16S1P

Powerwall / 48V ebike

16 cells51.2V nominal1,500mAh77Wh5A maxCell weight: 0.67 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsUsable for powerwalls but lower capacity means you'll need more cells to hit your target kWh.

Ebike PacksNot enough discharge for ebike use. Voltage sag would be a problem under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsLower capacity means shorter runtime. Better cells are available for flashlight use.

Power ToolsNot enough discharge or capacity for power tool use.

Physical dimensions

Dimensions18.2mm × 65mm

TopButton Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Lishen (LS) IFR-18650EC (this cell)	1500	5A	4.8	42g	114.29
A123Systems APR18650M1A	1100	30A	3.6	39g	93
Sony US18650FT	1100	10A	3.5	38.8g	91

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Lishen (LS) IFR-18650EC?

What is the maximum discharge rate of the Lishen (LS) IFR-18650EC?

What does the Lishen (LS) IFR-18650EC weigh?

Can I use the IFR-18650EC for vaping?

What is the cycle life of the Lishen (LS) IFR-18650EC?

What temperature range can the IFR-18650EC operate in?

What size is the Lishen (LS) IFR-18650EC?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 3.65V or discharge below 2V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
