Battery Building ToolsCell Database IMR-18650E

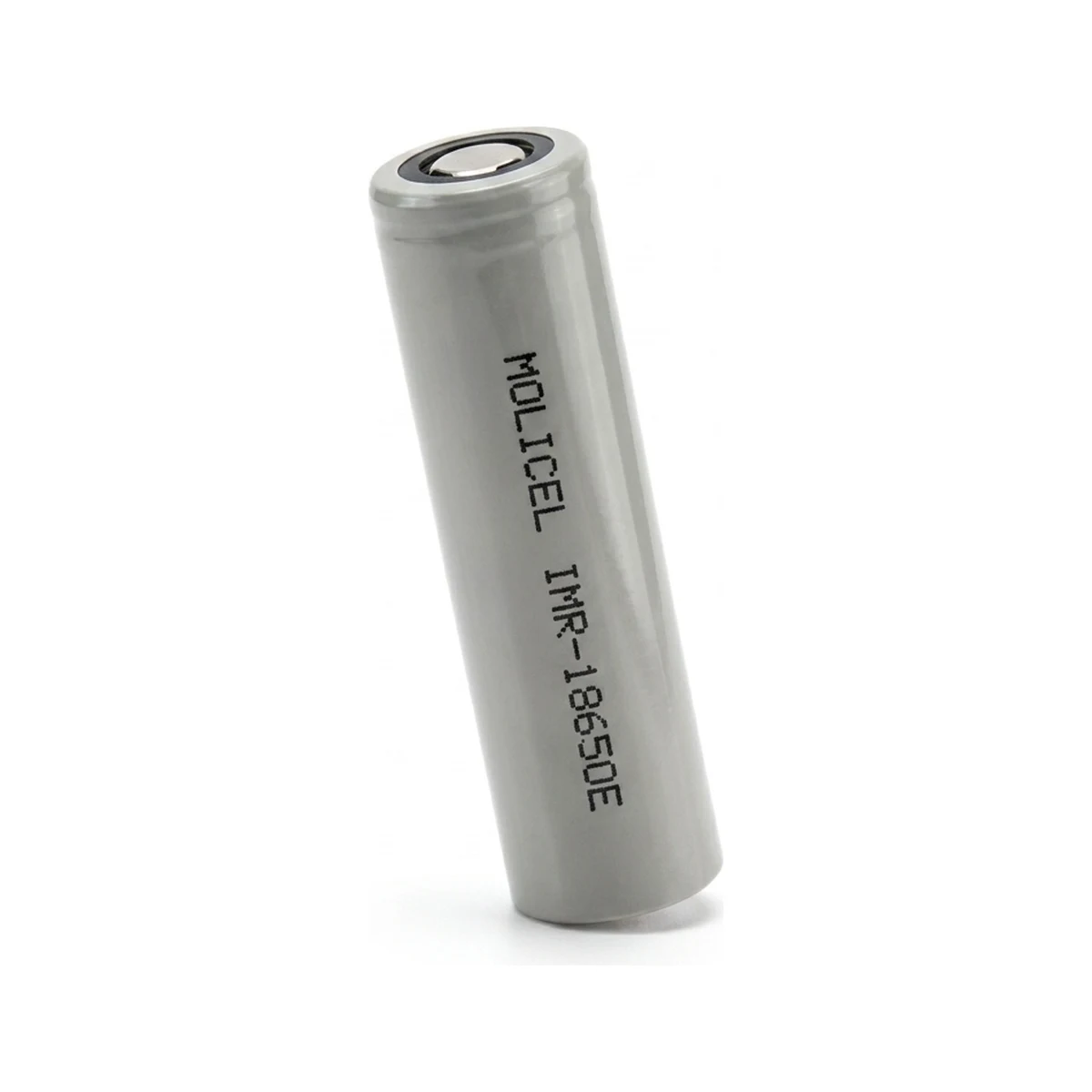

✱ Render

18.24 × 65 mm · 42 g

18650NMC

Moli Energy IMR-18650E

Name: Moli Energy IMR-18650E Lithium Battery Cell
Brand: Moli Energy

Moli Energy · released 2006

Capacity1400 mAh5.32 Wh · 126.67 Wh/kg

Rated continuous20 A20A

Voltage window3.8 V2.5 – 4.2 V

Build a pack with this cell →Download spec sheet (PDF)Open the datasheet

At 1400 mAh, this ranks #160 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. Higher discharge than 91% of 18650 cells in our database. Great for high-drain builds.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.8 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	20A
Physical
Form factor	18650
Dimensions	18.24mm × 65mm
Weight	42 g
Top type	Flat Top
Protected	No
Wrap color	Grey
Insulator ring	Black
Performance
Capacity	1400 mAh
Energy	5.32 Wh
Specific energy	126.67 Wh/kg
Energy density	313.23 Wh/L
Power density (gravimetric)	1,810 W/kg
Power density (volumetric)	4,475 W/L
Year released	2006
Operating Limits
Charge temp	0°C to 45°C
Discharge temp	-20°C to 60°C

Voltage operating window

Cutoff
2.5VNominal
3.8VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Moli Energy IMR-18650E (1400mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.28 A	5h 00m
0.5C	0.7 A	2h 00m
1C	1.4 A	1h 00m
2C	2.8 A	30m
3C	4.2 A	20m
5C	7 A	12m
8C	11.2 A	7m 30s
10C	14 A	6m
15C	21 A	4m

Highlighted row is closest to the rated 20A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	700 mA	~2h 00m
1C	1,400 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Datasheet

Download official Moli Energy IMR-18650E datasheet (PDF) ↗

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.8V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.6V	8.4V	5V	RC vehicles, 7.2V packs
3S	11.4V	12.6V	7.5V	Power tools (10.8V nominal)
4S	15.2V	16.8V	10V	Ebike (small), some power tools
7S	26.6V	29.4V	17.5V	Ebike (24V system)
10S	38V	42V	25V	Ebike (36V system)
13S	49.4V	54.6V	32.5V	Ebike (48V standard)
14S	53.2V	58.8V	35V	Ebike (52V high-power)
16S	60.8V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	1,400 mAh	5.3 Wh	20 A
2P	2,800 mAh	10.6 Wh	40 A
3P	4,200 mAh	16 Wh	60 A
4P	5,600 mAh	21.3 Wh	80 A
5P	7,000 mAh	26.6 Wh	100 A
6P	8,400 mAh	31.9 Wh	120 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells26.6V nominal2,800mAh74Wh40A maxCell weight: 0.59 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells49.4V nominal5,600mAh277Wh80A maxCell weight: 2.18 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells60.8V nominal5,600mAh340Wh80A maxCell weight: 2.69 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells15.2V nominal8,400mAh128Wh120A maxCell weight: 1.01 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsToo low capacity for practical powerwall use. You'd need too many cells.

Ebike PacksNot enough discharge for ebike use. Voltage sag would be a problem under load.

Car AudioEnough discharge to handle amplifier bursts without voltage sag.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsLower capacity means shorter runtime. Better cells are available for flashlight use.

Power ToolsMay work for lighter-duty tools. Check your tool's current requirements.

Physical dimensions

Dimensions18.24mm × 65mm

TopFlat Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Moli Energy IMR-18650E (this cell)	1400	20A	5.32	42g	126.67
Sanyo UR18650H	1900	—	7	46g	153
GP Batteries GP1865L180	1800	1.8A	6.7	—	—
Panasonic CGR18650HG	1800	3.4A	6.5	42g	154
Panasonic CGR18650HGL	1800	3.4A	6.5	—	—
Sanyo UR18650P	1700	—	6.3	—	—

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Moli Energy IMR-18650E?

What is the maximum discharge rate of the Moli Energy IMR-18650E?

How many IMR-18650E cells do I need for a 48V ebike battery?

What does the Moli Energy IMR-18650E weigh?

Can I use the IMR-18650E for vaping?

What temperature range can the IMR-18650E operate in?

What size is the Moli Energy IMR-18650E?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
