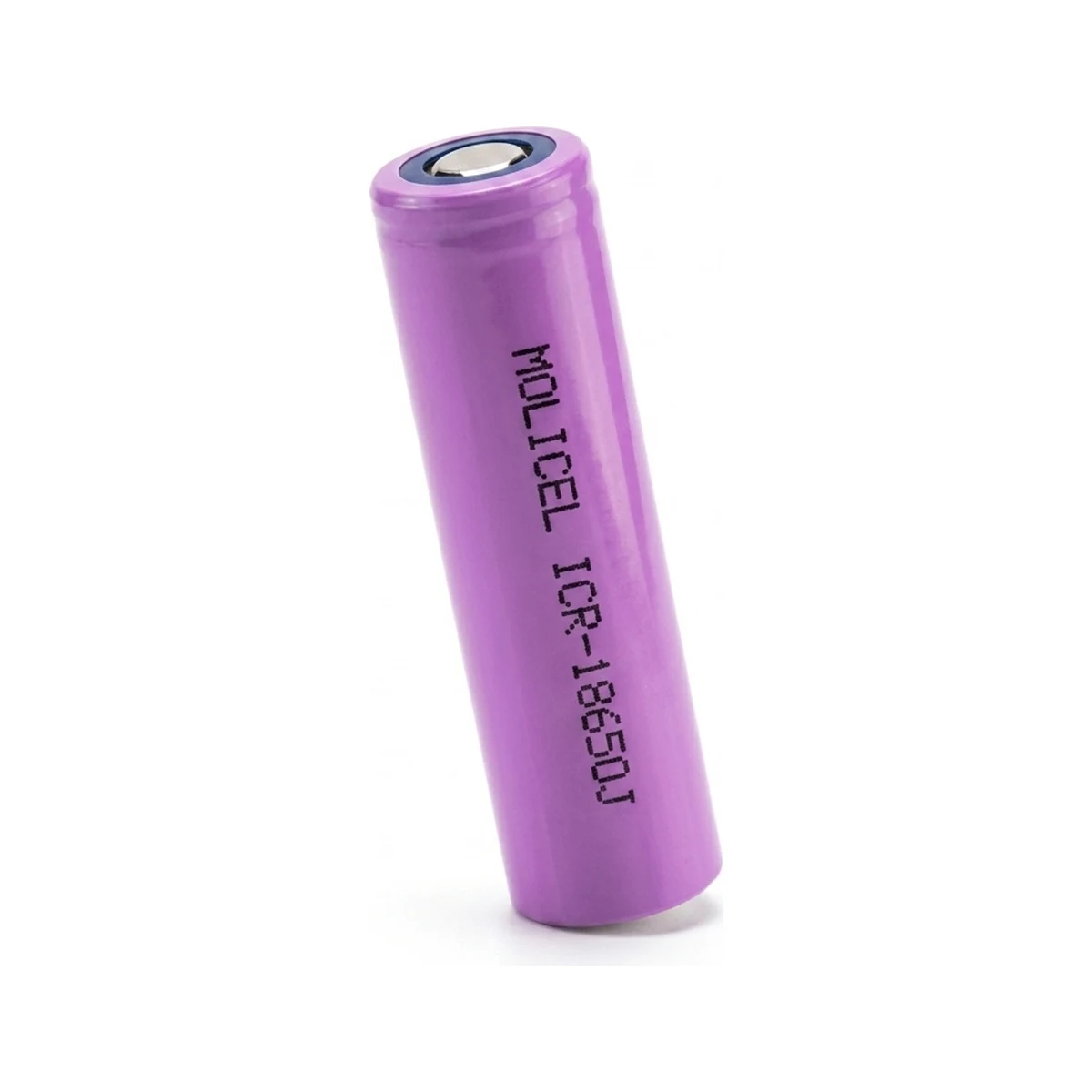

✱ RenderMoli Energy ICR-18650J
At 2300 mAh, this ranks #80 of 169 18650 cells in our database. Mid-range for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3 V |
| Max continuous discharge | 5A |
| Standard charge current | 1250 mA |
| Standard discharge current | 480mA |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.4mm × 65.15mm |
| Weight | 48 g |
| Top type | Button Top |
| Protected | No |
| Wrap color | Purple |
| Insulator ring | Blue (Dark) |
| Performance | |
| Capacity | 2300 mAh |
| Energy | 8.51 Wh |
| Specific energy | 177.29 Wh/kg |
| Energy density | 491.24 Wh/L |
| Power density (gravimetric) | 385 W/kg |
| Power density (volumetric) | 1,068 W/L |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
At the standard 1250 mA charge rate, a full charge takes about 1.8 hours. The last bit is a slow taper to top it off.
Voltage operating window
3VNominal
3.7VMax charge
4.2V
Usable range: 1.2V
C-rate conversion: Moli Energy ICR-18650J (2300mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.46 A | 5h 00m |
| 0.5C | 1.15 A | 2h 00m |
| 1C | 2.3 A | 1h 00m |
| 2C | 4.6 A | 30m |
Highlighted row is closest to the rated 5A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,150 mA | ~2h 00m |
| Standard | 1,250 mA | ~1h 50m |
| 1C | 2,300 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.2V | 3V | Flashlights, single-cell devices |
| 2S | 7.4V | 8.4V | 6V | RC vehicles, 7.2V packs |
| 3S | 11.1V | 12.6V | 9V | Power tools (10.8V nominal) |
| 4S | 14.8V | 16.8V | 12V | Ebike (small), some power tools |
| 7S | 25.9V | 29.4V | 21V | Ebike (24V system) |
| 10S | 37V | 42V | 30V | Ebike (36V system) |
| 13S | 48.1V | 54.6V | 39V | Ebike (48V standard) |
| 14S | 51.8V | 58.8V | 42V | Ebike (52V high-power) |
| 16S | 59.2V | 67.2V | 48V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,300 mAh | 8.5 Wh | 5 A |
| 2P | 4,600 mAh | 17 Wh | 10 A |
| 3P | 6,900 mAh | 25.5 Wh | 15 A |
| 4P | 9,200 mAh | 34 Wh | 20 A |
| 5P | 11,500 mAh | 42.6 Wh | 25 A |
| 6P | 13,800 mAh | 51.1 Wh | 30 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Moli Energy ICR-18650J (this cell) | 2300 | 5A | 8.51 | 48g | 177.29 |
| LG LGABC11865 | 2800 | — | 10.5 | — | — |
| LG LGDC118650 | 2800 | 4.1A | 10.5 | 47g | 223 |
| Samsung ICR18650-28A | 2800 | 5.6A | 10.5 | 48g | 219 |
| LG LGABC21865 | 2800 | — | 10.4 | — | — |
| LG LGDBC21865 | 2800 | — | 10.4 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 3V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
