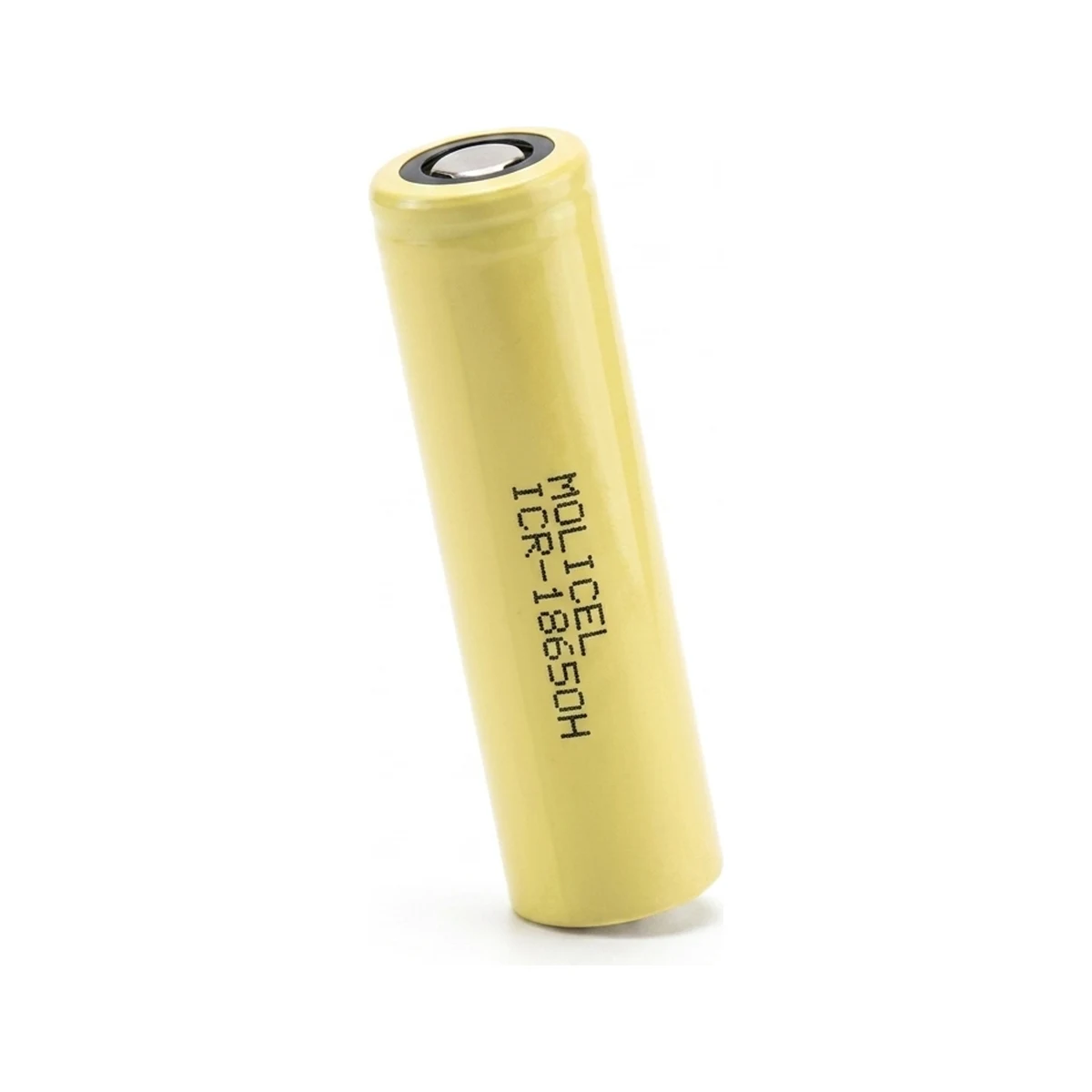

✱ RenderMoli Energy ICR-18650H
At 2100 mAh, this ranks #123 of 169 18650 cells in our database. On the lower end for capacity among 18650 cells. A mid-range 18650 cell. Solid for builds that don't need extreme capacity or discharge.
Full specifications
| Electrical | |
|---|---|
| Chemistry | NMC |
| Nominal voltage | 3.7 V |
| Max charge voltage | 4.2 V |
| Discharge cutoff | 3 V |
| Max continuous discharge | 5A |
| Standard charge current | 1250 mA |
| Physical | |
| Form factor | 18650 |
| Dimensions | 18.4mm × 65.15mm |
| Weight | 47.5 g |
| Top type | Button Top |
| Protected | No |
| Wrap color | Yellow (Light) |
| Insulator ring | Black |
| Performance | |
| Capacity | 2100 mAh |
| Energy | 7.77 Wh |
| Specific energy | 163.58 Wh/kg |
| Energy density | 448.52 Wh/L |
| Power density (gravimetric) | 389 W/kg |
| Power density (volumetric) | 1,068 W/L |
| Year released | 2005 |
| Operating Limits | |
| Charge temp | 0°C to 45°C |
| Discharge temp | -20°C to 60°C |
At the standard 1250 mA charge rate, a full charge takes about 1.7 hours. The last bit is a slow taper to top it off.
Voltage operating window
3VNominal
3.7VMax charge
4.2V
Usable range: 1.2V
C-rate conversion: Moli Energy ICR-18650H (2100mAh)
| C-Rate | Current (A) | Theoretical runtime |
|---|---|---|
| 0.2C | 0.42 A | 5h 00m |
| 0.5C | 1.05 A | 2h 00m |
| 1C | 2.1 A | 1h 00m |
| 2C | 4.2 A | 30m |
Highlighted row is closest to the rated 5A continuous discharge.
Charging
| Rate | Current | Estimated time |
|---|---|---|
| 0.5C | 1,050 mA | ~2h 00m |
| Standard | 1,250 mA | ~1h 41m |
| 1C | 2,100 mA | ~1h 00m |
These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.
Datasheet
Pack scaling
Series voltage configurations
| Config | Nominal V | Max V | Min V | Common use |
|---|---|---|---|---|
| 1S | 3.7V | 4.2V | 3V | Flashlights, single-cell devices |
| 2S | 7.4V | 8.4V | 6V | RC vehicles, 7.2V packs |
| 3S | 11.1V | 12.6V | 9V | Power tools (10.8V nominal) |
| 4S | 14.8V | 16.8V | 12V | Ebike (small), some power tools |
| 7S | 25.9V | 29.4V | 21V | Ebike (24V system) |
| 10S | 37V | 42V | 30V | Ebike (36V system) |
| 13S | 48.1V | 54.6V | 39V | Ebike (48V standard) |
| 14S | 51.8V | 58.8V | 42V | Ebike (52V high-power) |
| 16S | 59.2V | 67.2V | 48V | DIY powerwall |
Parallel capacity scaling
| Config | Capacity | Energy | Max discharge |
|---|---|---|---|
| 1P | 2,100 mAh | 7.8 Wh | 5 A |
| 2P | 4,200 mAh | 15.5 Wh | 10 A |
| 3P | 6,300 mAh | 23.3 Wh | 15 A |
| 4P | 8,400 mAh | 31.1 Wh | 20 A |
| 5P | 10,500 mAh | 38.8 Wh | 25 A |
| 6P | 12,600 mAh | 46.6 Wh | 30 A |
Example pack configurations
Design a custom pack with this cell:
Application suitability
Physical dimensions
Similar cells
Same format and chemistry, within ±500mAh capacity:
| Cell | mAh | CDR | Wh | Weight | Wh/kg |
|---|---|---|---|---|---|
| Moli Energy ICR-18650H (this cell) | 2100 | 5A | 7.77 | 47.5g | 163.58 |
| LG LGDB118650 | 2600 | — | 9.8 | — | — |
| LG LGDBB11865 | 2600 | — | 9.8 | — | — |
| BAK C18650CC | 2600 | 2A | 9.6 | — | — |
| Cham CMICR18650F | 2600 | — | 9.6 | 45.5g | 211 |
| GP Batteries ICR18650-26F | 2600 | 5A | 9.6 | — | — |
Build with this cell
Frequently asked questions
Handling and safety
Lithium cells can be dangerous if mishandled. A few things to keep in mind:
- Never charge above 4.2V or discharge below 3V.
- Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
- Don't mix cells with different capacities, chemistries, or states of charge in a pack.
- Inspect wraps before use. A torn wrap can cause a short circuit.
- Always use a BMS or balance charger appropriate for your pack configuration.
- Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
