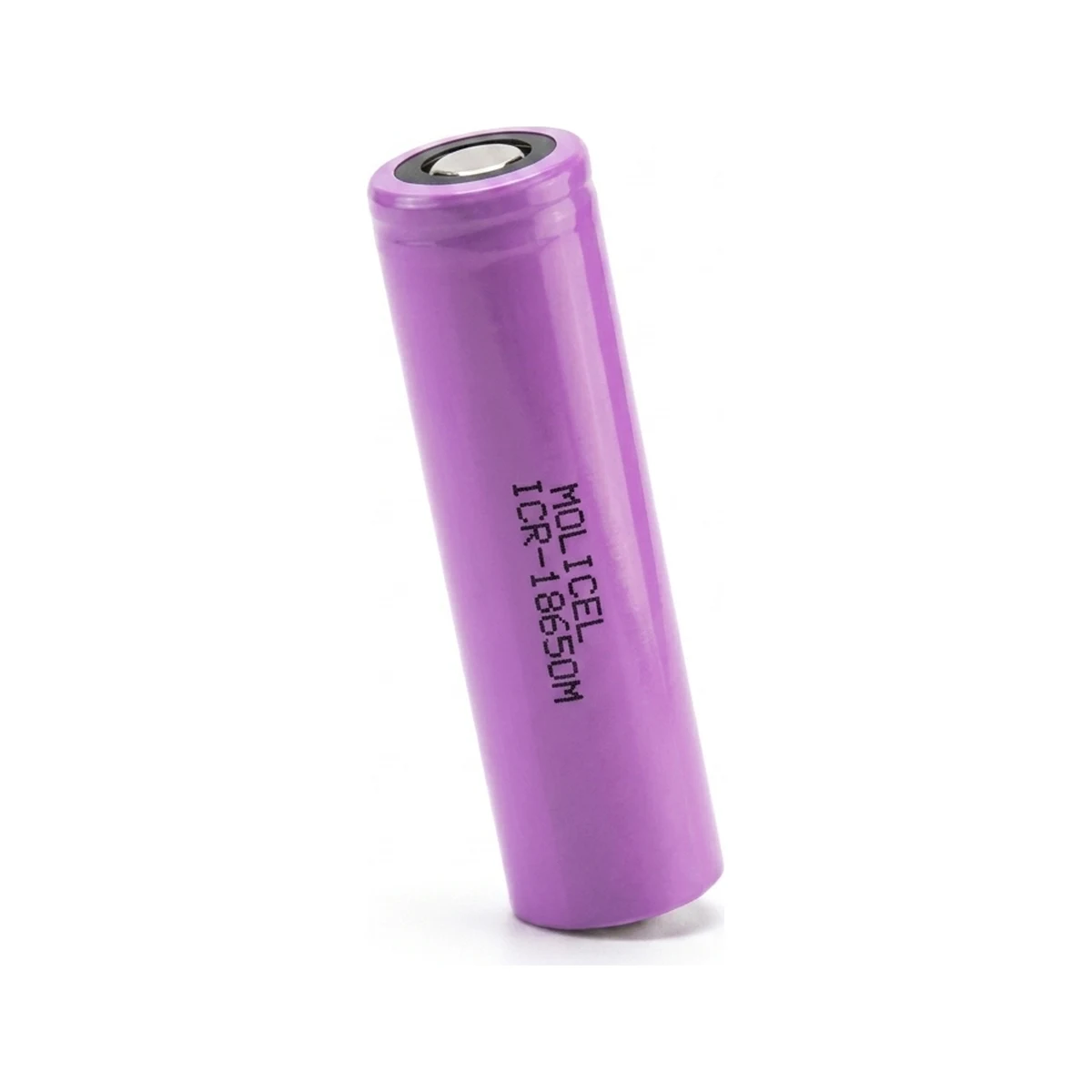

✱ Render

18.6 × 65.2 mm · 50 g

18650NMC

Moli Energy ICR-18650M

Name: Moli Energy ICR-18650M Lithium Battery Cell
Brand: Moli Energy

Moli Energy

Capacity2800 mAh10.36 Wh · 207.2 Wh/kg

Rated continuous5 A5A

Voltage window3.7 V2.5 – 4.2 V

Standard charge1400 mA~2 h to full

Build a pack with this cell →Download spec sheet (PDF)Open the datasheet

At 2800 mAh, this ranks #28 of 169 18650 cells in our database. Near the top for capacity among 18650 cells. More capacity than 84% of 18650 cells in our database, but lower discharge than average.

Full specifications

Electrical
Chemistry	NMC
Nominal voltage	3.7 V
Max charge voltage	4.2 V
Discharge cutoff	2.5 V
Max continuous discharge	5A
Standard charge current	1400 mA
Standard discharge current	560mA
Physical
Form factor	18650
Dimensions	18.6mm × 65.2mm
Weight	50 g
Top type	Flat Top
Protected	No
Wrap color	Purple
Insulator ring	Black
Performance
Capacity	2800 mAh
Energy	10.36 Wh
Specific energy	207.2 Wh/kg
Energy density	584.79 Wh/L
Power density (gravimetric)	370 W/kg
Power density (volumetric)	1,044 W/L
Operating Limits
Charge temp	0°C to 45°C
Discharge temp	-30°C to 60°C

At the standard 1400 mA charge rate, a full charge takes about 2 hours. The last bit is a slow taper to top it off.

Voltage operating window

Cutoff
2.5VNominal
3.7VMax charge
4.2V

Usable range: 1.7V

C-rate conversion: Moli Energy ICR-18650M (2800mAh)

C-Rate	Current (A)	Theoretical runtime
0.2C	0.56 A	5h 00m
0.5C	1.4 A	2h 00m
1C	2.8 A	1h 00m

Highlighted row is closest to the rated 5A continuous discharge.

Charging

Rate	Current	Estimated time
0.5C	1,400 mA	~2h 00m
1C	2,800 mA	~1h 00m

These are estimates for the constant-current phase. Real charge time is a bit longer because of the slow taper at the end.

Datasheet

Download official Moli Energy ICR-18650M datasheet (PDF) ↗

Pack scaling

Series voltage configurations

Config	Nominal V	Max V	Min V	Common use
1S	3.7V	4.2V	2.5V	Flashlights, single-cell devices
2S	7.4V	8.4V	5V	RC vehicles, 7.2V packs
3S	11.1V	12.6V	7.5V	Power tools (10.8V nominal)
4S	14.8V	16.8V	10V	Ebike (small), some power tools
7S	25.9V	29.4V	17.5V	Ebike (24V system)
10S	37V	42V	25V	Ebike (36V system)
13S	48.1V	54.6V	32.5V	Ebike (48V standard)
14S	51.8V	58.8V	35V	Ebike (52V high-power)
16S	59.2V	67.2V	40V	DIY powerwall

Parallel capacity scaling

Config	Capacity	Energy	Max discharge
1P	2,800 mAh	10.4 Wh	5 A
2P	5,600 mAh	20.7 Wh	10 A
3P	8,400 mAh	31.1 Wh	15 A
4P	11,200 mAh	41.4 Wh	20 A
5P	14,000 mAh	51.8 Wh	25 A
6P	16,800 mAh	62.2 Wh	30 A

Example pack configurations

7S2P

24V ebike / small pack

14 cells25.9V nominal5,600mAh145Wh10A maxCell weight: 0.7 kg (add ~15% for wiring and BMS)

13S4P

48V ebike standard

52 cells48.1V nominal11,200mAh539Wh20A maxCell weight: 2.6 kg (add ~15% for wiring and BMS)

16S4P

DIY powerwall

64 cells59.2V nominal11,200mAh663Wh20A maxCell weight: 3.2 kg (add ~15% for wiring and BMS)

4S6P

Power tool replacement

24 cells14.8V nominal16,800mAh249Wh30A maxCell weight: 1.2 kg (add ~15% for wiring and BMS)

Design a custom pack with this cell:

Pack Planner →Pack Designer →

Application suitability

PowerwallsHigh capacity means more stored energy per cell. Fewer cells needed for a given kWh target.

Ebike PacksMarginal. Check your motor's peak draw first. You might get voltage sag under load.

Car AudioNot enough discharge for car audio amplifiers. You need at least 15-20A continuous for most setups.

High-Drain VapingBelow the 25A Mooch CDR threshold that high-drain vaping needs. Use a higher-drain cell.

FlashlightsDecent runtime. Works well for most flashlights.

Power ToolsNot enough discharge or capacity for power tool use.

Physical dimensions

Dimensions18.6mm × 65.2mm

TopFlat Top

Format18650

Similar cells

Same format and chemistry, within ±500mAh capacity:

Cell	mAh	CDR	Wh	Weight	Wh/kg
Moli Energy ICR-18650M (this cell)	2800	5A	10.36	50g	207.2
LG LGABE11865	3200	9A	12	49g	245
LG LGEBE11865	3200	4.9A	12	—	—
Samsung ICR18650-32A	3200	6.4A	12	50g	240
Sanyo NCR18650GA	3300	10A	11.9	48g	248
EVE EVE-INR18650/33V	3200	10A	11.5	—	—

Build with this cell

Pack PlannerSize your pack. Voltage, capacity, runtime, BMS.Pack Designer2D & 3D layout for your exact cell arrangement Pack BuilderBalance cells by capacity and internal resistance

Frequently asked questions

What is the capacity of the Moli Energy ICR-18650M?

What is the maximum discharge rate of the Moli Energy ICR-18650M?

How many ICR-18650M cells do I need for a 48V ebike battery?

What does the Moli Energy ICR-18650M weigh?

Can I use the ICR-18650M for vaping?

What temperature range can the ICR-18650M operate in?

What size is the Moli Energy ICR-18650M?

Handling and safety

Lithium cells can be dangerous if mishandled. A few things to keep in mind:

Never charge above 4.2V or discharge below 2.5V.
Store cells at around 3.6-3.8V (roughly 40-60% charge) for long-term storage.
Don't mix cells with different capacities, chemistries, or states of charge in a pack.
Inspect wraps before use. A torn wrap can cause a short circuit.
Always use a BMS or balance charger appropriate for your pack configuration.
Keep cells away from metal objects, keys, and coins. A short across the terminals can cause fire.
